Automatic Firefighter Robotic Fire Monitor Water Cannon CCCF

  • Automatic Firefighter Robotic Fire Monitor Water Cannon CCCF
  • Automatic Firefighter Robotic Fire Monitor Water Cannon CCCF
  • Automatic Firefighter Robotic Fire Monitor Water Cannon CCCF
Place of Origin Henan, China
Brand Name LinkZone
Model Number ZDMS 0.8/20S-LZ II
Minimum Order Quantity 3 sets
Price $2,300.00 - $2,500.00/sets
Packaging Details International Standard Export Packing
Supply Ability 200000 Set/Sets per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Working Pressure (MPa) 0.8 Rated Flow (L / S) 20
Maximum Protection Radius(m) 50 Jet Radius (m) 55
Monitoring Radius(m) 60 Positioning Time(s) ≤30
Installation Height (m) 8~15 Horizontal Swing Angle(°) ≥180
Keyword Fire Water Cannon Port Shanghai,Shenzhen,Qingdao,Tianjin,Dalian
High Light

Automatic Firefighter Fire Monitor Water Cannon

,

robotic fire monitor water cannon

,

Fire Monitor Water Cannon CCCF
Leave a Message
Product Description

Automatic firefighter robotic water cannon for large space using



Product Overview



INTELLIGENT FIRE MONITOR AUTOMATIC FIRE SPRINKLER SYSTEM
Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
ITEM#:ZDMS 0.8/20S-LZ II
DIMENSION:580×360mm
NET WEIGHT:25KG
MODEL: ZDMS0.8/20S-LZ II
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN bus
KEYWORD:INTELLIGENT FIRE WATER CANNON
Automatic Firefighter Robotic Fire Monitor Water Cannon CCCF 0
Automatic Firefighter Robotic Fire Monitor Water Cannon CCCF 1
Front elevation
Automatic Firefighter Robotic Fire Monitor Water Cannon CCCF 2
system chart
Automatic Firefighter Robotic Fire Monitor Water Cannon CCCF 3
Front elevation

PRODUCT SPECIFICATIONS
No
Item
Standard &Requirements
Inspection results

1
Rated working pressure (MPa)
≤0.8
0.6
/
2
Rated flow (L / s)
20×(1±8%)
20.1
/
3
Maximum protection radius(m)
≥50
50
/
4
Jet radius (m)
≥55
55
/
5
Monitoring radius(m)
≥80
80
/
6
Positioning time(s)
≤60
59
60
7
Installation height (m)
8~15
8
15
8
Horizontal swing angle(°)
≥180
360

9
Minimum pitch profile(°)
-90~+30
-90~+30

10
working temperature
4~55℃ ≤95%RH
4~55℃ ≤95%RH

11
Guidance system
Φ 15.5 ± 0.5
Φ 15.5 ± 0.5

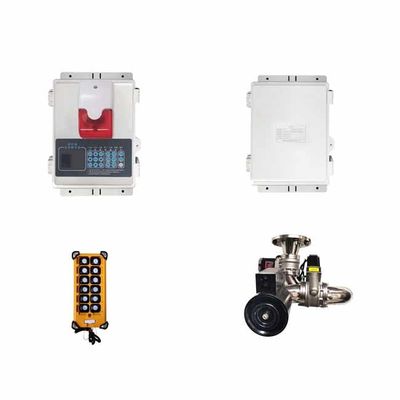

PRODUCT CONFIGURATION
Automatic Firefighter Robotic Fire Monitor Water Cannon CCCF 4
Control host
Automatic Firefighter Robotic Fire Monitor Water Cannon CCCF 5
Electric control box
Automatic Firefighter Robotic Fire Monitor Water Cannon CCCF 6
Field operation panel
Automatic Firefighter Robotic Fire Monitor Water Cannon CCCF 7
SALES AND SERVICE NETWORK
Automatic Firefighter Robotic Fire Monitor Water Cannon CCCF 8
Successful Project
Automatic Firefighter Robotic Fire Monitor Water Cannon CCCF 9
Project in Malaysia
Automatic Firefighter Robotic Fire Monitor Water Cannon CCCF 10
Project in Azerbaijan
Automatic Firefighter Robotic Fire Monitor Water Cannon CCCF 11
Project in Singapore
Automatic Firefighter Robotic Fire Monitor Water Cannon CCCF 12

WUHAN airport


Automatic Firefighter Robotic Fire Monitor Water Cannon CCCF 13

XIXIA gym


Automatic Firefighter Robotic Fire Monitor Water Cannon CCCF 14

CHUZHOU Science&Technology Museum


FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of intelligent fire-fighting equipment, like Full-auto Fire Monitor|Intelligent Fire Water Cannon.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. FM or UL will be got within next year.
Q3: What are the advantages of your Intelligent Fire Monitor|Fire Water Cannon?
A3: Our Intelligent Fire Monitor|Fire Water Cannon integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
