LinkZone Robotic Firefighter Fire Protection Monitor 0.6MPa Electric Fire Monitor

  • LinkZone Robotic Firefighter Fire Protection Monitor 0.6MPa Electric Fire Monitor
  • LinkZone Robotic Firefighter Fire Protection Monitor 0.6MPa Electric Fire Monitor
  • LinkZone Robotic Firefighter Fire Protection Monitor 0.6MPa Electric Fire Monitor
  • LinkZone Robotic Firefighter Fire Protection Monitor 0.6MPa Electric Fire Monitor
  • LinkZone Robotic Firefighter Fire Protection Monitor 0.6MPa Electric Fire Monitor
Place of Origin Henan, China
Brand Name LinkZone
Model Number ZDMS0.6/5S-LZ II
Price $1,030.00 - $1,200.00/sets
Packaging Details International Standard Export Packing
Supply Ability 200000 Set/Sets per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Working Pressure (MPa) 0.6 Rated Flow (L / S) 5
Maximum Protection Radius(m) 30 Jet Radius (m) 34
Monitoring Radius(m) 40 Positioning Time(s) ≤30
Installation Height (m) 6~15 Horizontal Swing Angle(°) 360°
Vertical Deflection Angle(°) -90~+30 Keyword Fire Water Cannon
Port Shanghai,Shenzhen,Qingdao,Tianjin,Dalian
High Light

Robotic Firefighter Fire Protection Monitor

,

Robotic 0.6MPa Electric Fire Monitor

,

Electric Fire Protection Monitor 0.6MPa
Leave a Message
Product Description

LinkZone Robotic Firefighter fire safety watchman for protecting your life and property

Product Overview



INTELLIGENT FIRE MONITOR AUTOMATIC FIRE SPRINKLER SYSTEM
Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.

FEATURES AT A GLANCE
DIMENSION:480×360mm
NET WEIGHT:8.1KG
MODEL: ZDMS0.6/5S-LZ II
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN
KEYWORD:INTELLIGENT FIRE MONITOR
LinkZone Robotic Firefighter Fire Protection Monitor 0.6MPa Electric Fire Monitor 0
LinkZone Robotic Firefighter Fire Protection Monitor 0.6MPa Electric Fire Monitor 1
Right elevation
LinkZone Robotic Firefighter Fire Protection Monitor 0.6MPa Electric Fire Monitor 1
Left elevation
LinkZone Robotic Firefighter Fire Protection Monitor 0.6MPa Electric Fire Monitor 1
Front elevation

PRODUCT SPECIFICATIONS
No
Item
Standard &Requirements
Inspection results

1
Rated working pressure (MPa)
≤0.8
0.6
/
2
Rated flow (L / s)
5×(1±8%)
5.05
/
3
Maximum protection radius(m)
≥30
30
/
4
Jet radius (m)
≥34
34
/
5
Monitoring radius(m)
≥40
40
/
6
Positioning time(s)
≤30
29.5
29.9
7
Installation height (m)
6~15
6
15
8
Horizontal swing angle(°)
≥180
360

9
Minimum pitch profile(°)
-90~+30
-90~+30

10
Diameter of water-inlet(mm)
Φ 34.5 ± 0.5
Φ 34.5 ± 0.5

11
Diameter of water-outlet(mm)
Φ 15.5 ± 0.5
Φ 15.5 ± 0.5

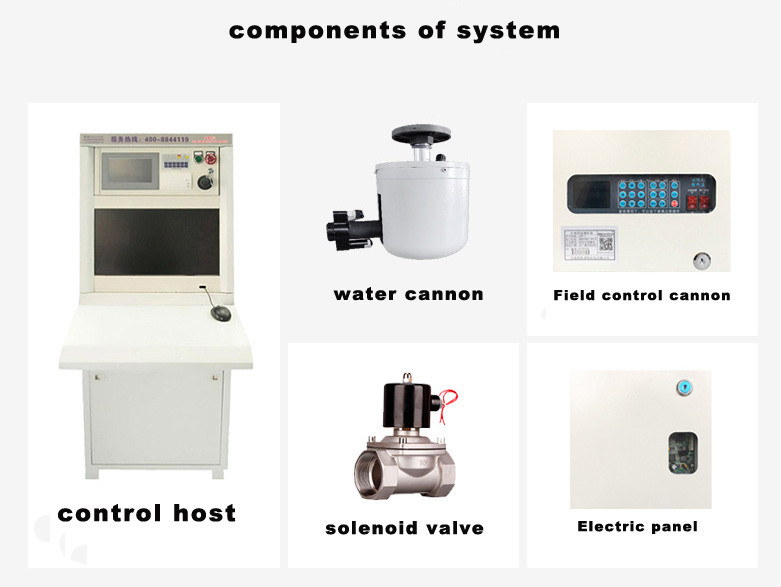

PRODUCT CONFIGURATION
LinkZone Robotic Firefighter Fire Protection Monitor 0.6MPa Electric Fire Monitor 4
Control host
LinkZone Robotic Firefighter Fire Protection Monitor 0.6MPa Electric Fire Monitor 5
Electric control box
LinkZone Robotic Firefighter Fire Protection Monitor 0.6MPa Electric Fire Monitor 6
Field operation panel
SALES AND SERVICE NETWORK
LinkZone Robotic Firefighter Fire Protection Monitor 0.6MPa Electric Fire Monitor 7
Successful Project
LinkZone Robotic Firefighter Fire Protection Monitor 0.6MPa Electric Fire Monitor 8
Project in Malaysia
LinkZone Robotic Firefighter Fire Protection Monitor 0.6MPa Electric Fire Monitor 9
Project in Azerbaijan
LinkZone Robotic Firefighter Fire Protection Monitor 0.6MPa Electric Fire Monitor 10
Project in Singapore
