5L/S Automatic Fire Suppression Systems Fire Robotic Fire Fighting Monitor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Working Pressure (MPa) | 0.6 | Rated Flow (L / S) | 5 |
|---|---|---|---|
| Maximum Protection Radius(m) | 30 | Jet Radius (m) | 34 |
| Monitoring Radius(m) | 40 | Positioning Time(s) | ≤30 |
| Installation Height (m) | 6~15 | Horizontal Swing Angle(°) | 360° |
| Minimum Pitch Profile(°) | -90~+30 | Overall Dimensions | 35*23*48CM,8KG |
| Port | Shanghai,Shenzhen,Qingdao,Tianjin,Dalian | ||
| High Light | 5L/S Automatic Fire Suppression Systems,Robotic Automatic Fire Suppression Systems,5L/S Robotic Fire Fighting Monitor |
||
Product Description
Robotic fire suppression and security system fire robot
Product Overview
INTELLIGENT FIRE MONITOR AUTOMATIC FIRE SPRINKLER SYSTEM

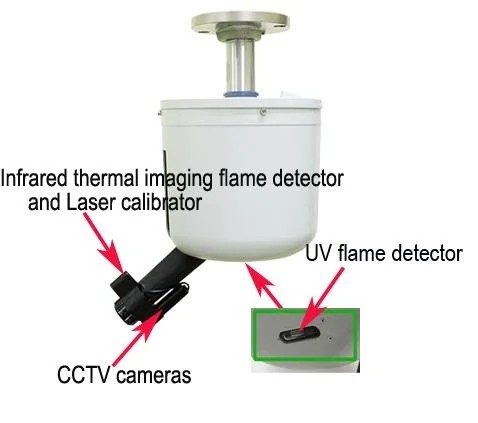

Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
DIMENSION:480×360mm
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Standard &Requirements
|
Inspection results
|
|
|
|
1
|
Rated working pressure (MPa)
|
≤0.8
|
0.6
|
/
|
|
|
2
|
Rated flow (L / s)
|
5×(1±8%)
|
5.05
|
/
|
|
|
3
|
Maximum protection radius(m)
|
≥30
|
30
|
/
|
|
|
4
|
Jet radius (m)
|
≥34
|
34
|
/
|
|
|
5
|
Monitoring radius(m)
|
≥40
|
40
|
/
|
|
|
6
|
Positioning time(s)
|
≤30
|
29.5
|
29.9
|
|
|
7
|
Installation height (m)
|
6~15
|
6
|
15
|
|
|
8
|
Horizontal swing angle(°)
|
≥180
|
360
|
|
|
|
9
|
Minimum pitch profile(°)
|
-90~+30
|
-90~+30
|
|
|
|
10
|
Diameter of water-inlet(mm)
|
Φ 34.5 ± 0.5
|
Φ 34.5 ± 0.5
|
|
|
|
11
|
Diameter of water-outlet(mm)
|
Φ 15.5 ± 0.5
|
Φ 15.5 ± 0.5
|
|
|

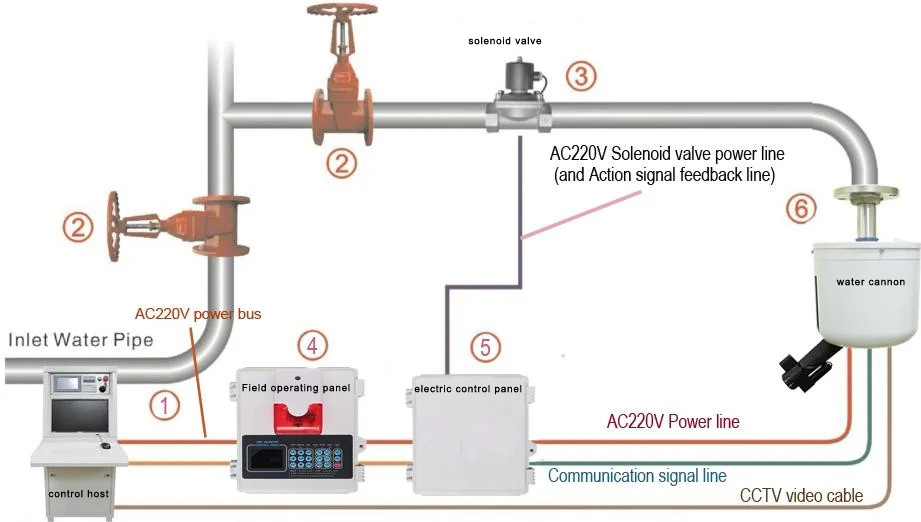

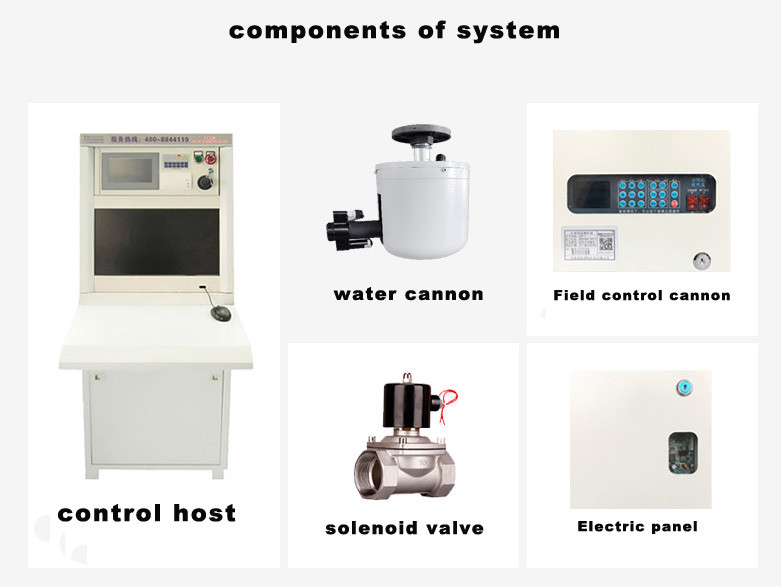

PRODUCT CONFIGURATION

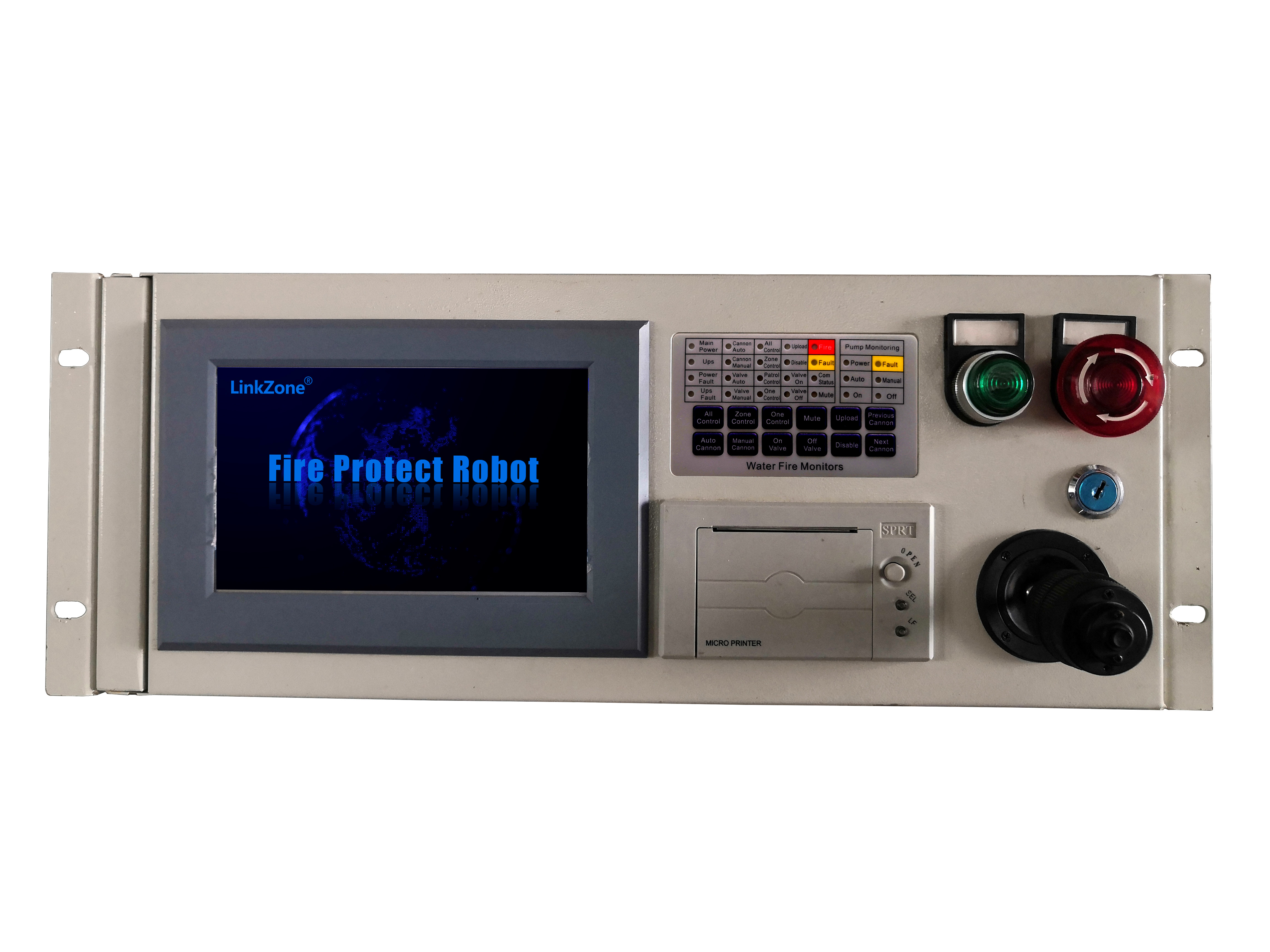

Control host
Electric control box
Field operation panel
Successful Project
Project in Malaysia
Project in Azerbaijan
Project in Singapore
