0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof

  • 0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof
  • 0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof
  • 0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof
  • 0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof
  • 0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof
  • 0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof
Place of Origin Henan, China
Brand Name LinkZone
Model Number ZDMS 0.8/20S-LZ II
Minimum Order Quantity 3 sets
Price $2,300.00 - $2,500.00/sets
Packaging Details International Standard Export Packing
Supply Ability 200000 Set/Sets per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Working Pressure (MPa) 0.8 Rated Flow (L / S) 20
Maximum Protection Radius(m) 50 Jet Radius (m) 55
Monitoring Radius(m) 60 Positioning Time(s) ≤30
Installation Height (m) 8~15 Horizontal Swing Angle(°) ≥180
Keyword Fire Water Cannon Port Shanghai,Shenzhen,Qingdao,Tianjin,Dalian
High Light

0.8MPa Automatic Fire Monitor Water Cannon

,

Fire Monitor Water Cannon Explosion Proof

,

0.8MPa Automatic Fire Monitor Explosion Proof
Leave a Message
Product Description

factory direct sale automatic fire monitor and water cannon for Fire Safety problems Solutions

Our Advantages
1.We have got more than 30 patents for our water cannon.
0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof 0
2.We research&design ,produce ,sell and provide after-sale service all by ourself.
0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof 1
Product Overview

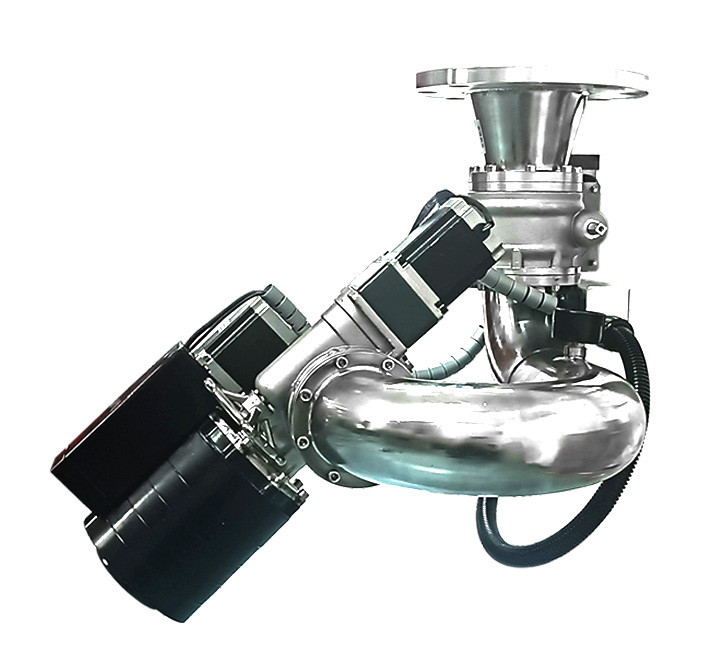

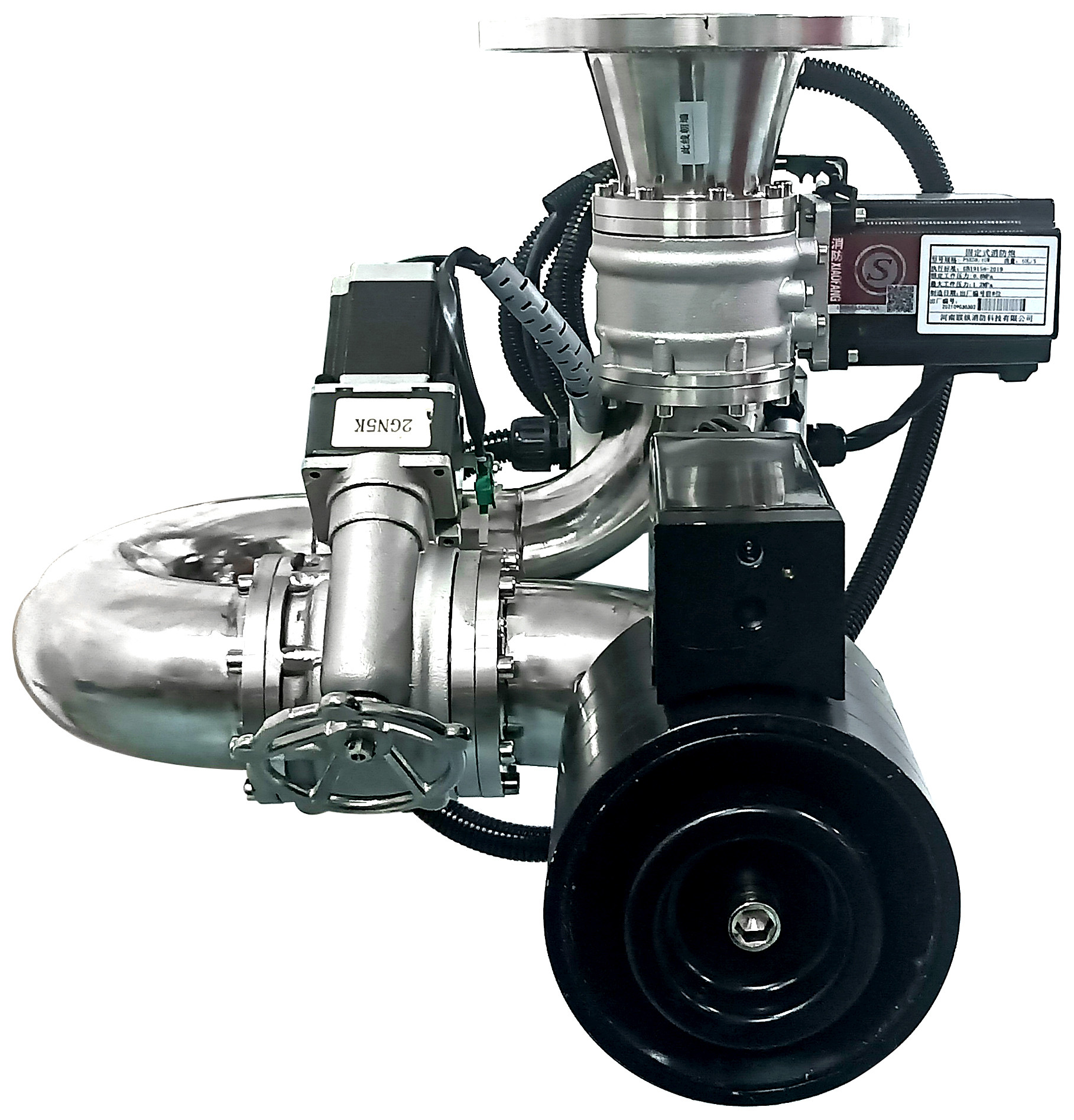

Top-ranking Intelligent Water cannon
Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
ITEM#:ZDMS 0.8/20S-LZ II
DIMENSION:580×360mm
NET WEIGHT:25KG
MODEL: ZDMS0.8/20S-LZ II
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN bus
KEYWORD:INTELLIGENT FIRE WATER CANNON
0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof 2
0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof 3
Front elevation
0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof 4
system chart
0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof 5
Front elevation

PRODUCT SPECIFICATIONS
No
Item
Standard &Requirements
Inspection results

1
Rated working pressure (MPa)
≤0.8
0.6
/
2
Rated flow (L / s)
20×(1±8%)
20.1
/
3
Maximum protection radius(m)
≥50
50
/
4
Jet radius (m)
≥55
55
/
5
Monitoring radius(m)
≥80
80
/
6
Positioning time(s)
≤60
59
60
7
Installation height (m)
8~15
8
15
8
Horizontal swing angle(°)
≥180
360

9
Minimum pitch profile(°)
-90~+30
-90~+30

10
working temperature
4~55℃ ≤95%RH
4~55℃ ≤95%RH

11
Guidance system
Φ 15.5 ± 0.5
Φ 15.5 ± 0.5

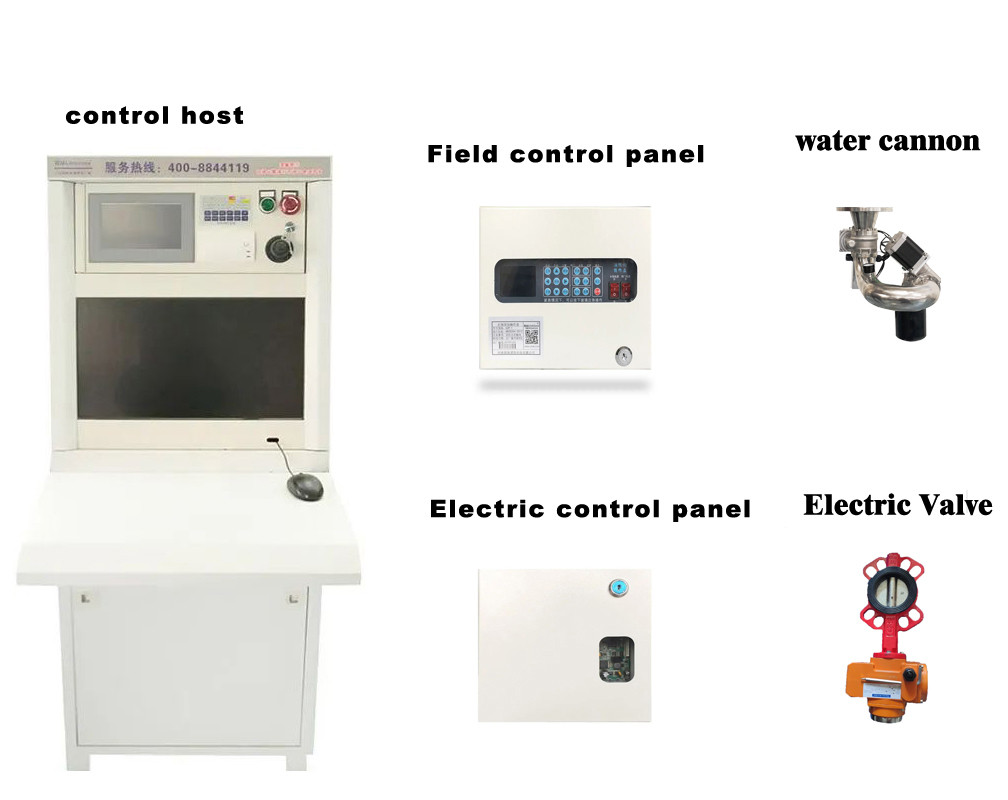

PRODUCT CONFIGURATION
0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof 6

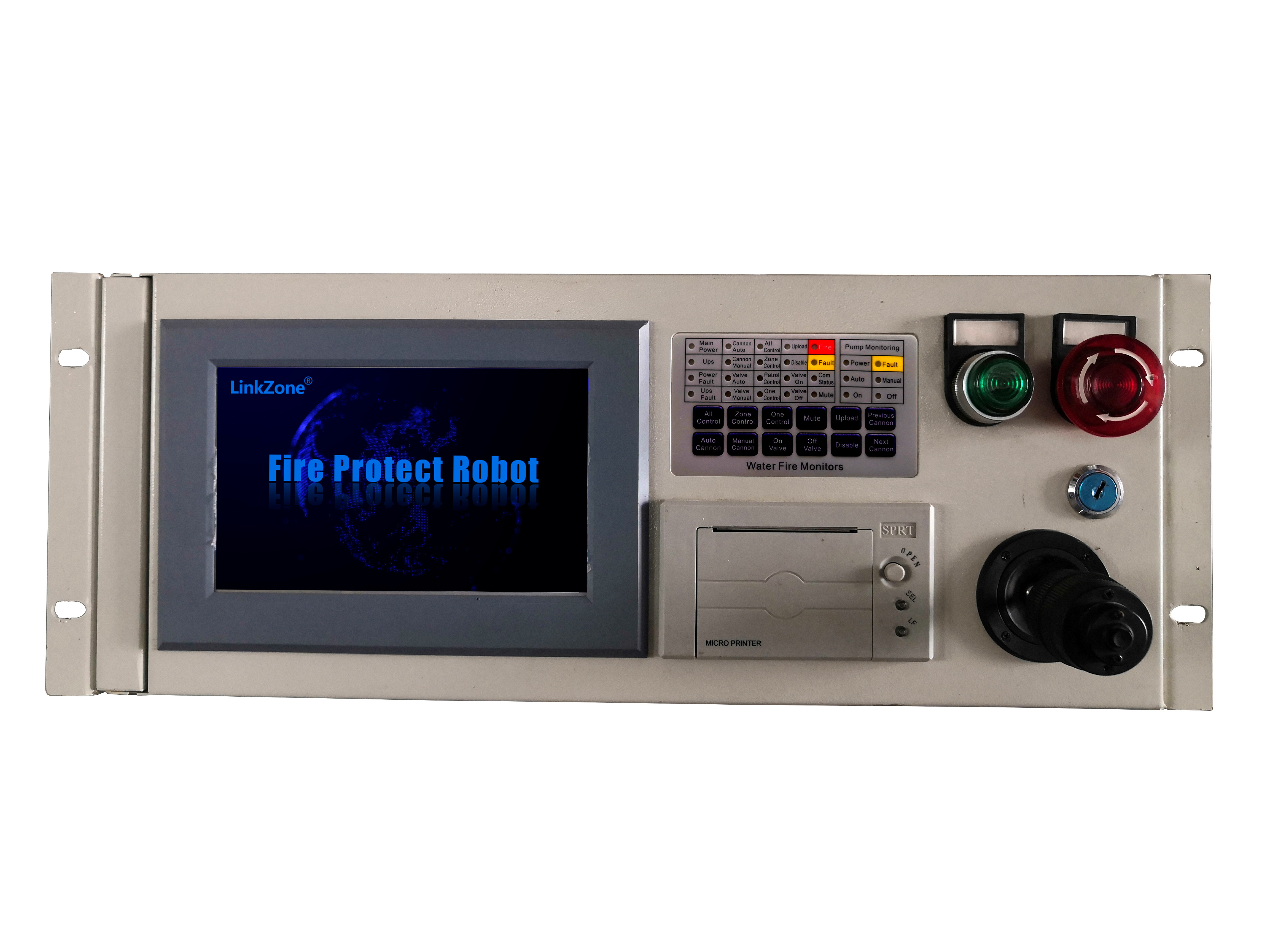

Control host
0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof 7
Electric control box
0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof 8
Field operation panel
0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof 9
SALES AND SERVICE NETWORK
0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof 10
Successful Project
0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof 11
Project in Malaysia
0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof 12
Project in Azerbaijan
0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof 13
Project in Singapore
0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof 14

WUHAN airport


0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof 15

XIXIA gym


0.8MPa Automatic Fire Monitor Water Cannon Explosion Proof 16

CHUZHOU Science&Technology Museum


FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of intelligent fire-fighting equipment, like Full-auto Fire Monitor|Intelligent Fire Water Cannon.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. FM or UL will be got within next year.
Q3: What are the advantages of your Intelligent Fire Monitor|Fire Water Cannon?
A3: Our Intelligent Fire Monitor|Fire Water Cannon integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
