DIMENSION:550×460mm
NET WEIGHT:28KG
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN bus
KEYWORD:INTELLIGENT FIRE WATER CANNON
All Products
-
Automatic Fire Monitor
-
Fire Fighting Monitor
-
Automatic Fire Water Monitor
-
Automatic Water Cannon
-
Automatic Fire Fighting Equipment
-
Automatic Fire Suppression Systems
-
Fire Fighting Water Cannon
-
Automatic Fire Protection Systems
-
Fire Water Cannon
-
Hydraulic Water Cannon
-
Automatic Fire Extinguishing System
-
Fire Extinguishing Device
40L/S Automatic Fire Monitor System Flame Detector
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Working Pressure (MPa) | 0.8 | Rated Flow (L / S) | 40 |
|---|---|---|---|
| Maximum Protection Radius(m) | 60 | Jet Radius (m) | 67 |
| Monitoring Radius(m) | 80 | Positioning Time(s) | ≤60 |
| Installation Height (m) | 8~15 | Horizontal Swing Angle(°) | 360 |
| Vertical Rotate Angle | -90~+30 | Working Temperature | 4~55℃ |
| Port | Shanghai,Shenzhen,Qingdao,Tianjin,Dalian | ||
| Highlight | 40L/S Automatic Fire Monitor,Flame Detector Automatic Fire Monitor,40L/S Fire Monitor System |
||
Product Description

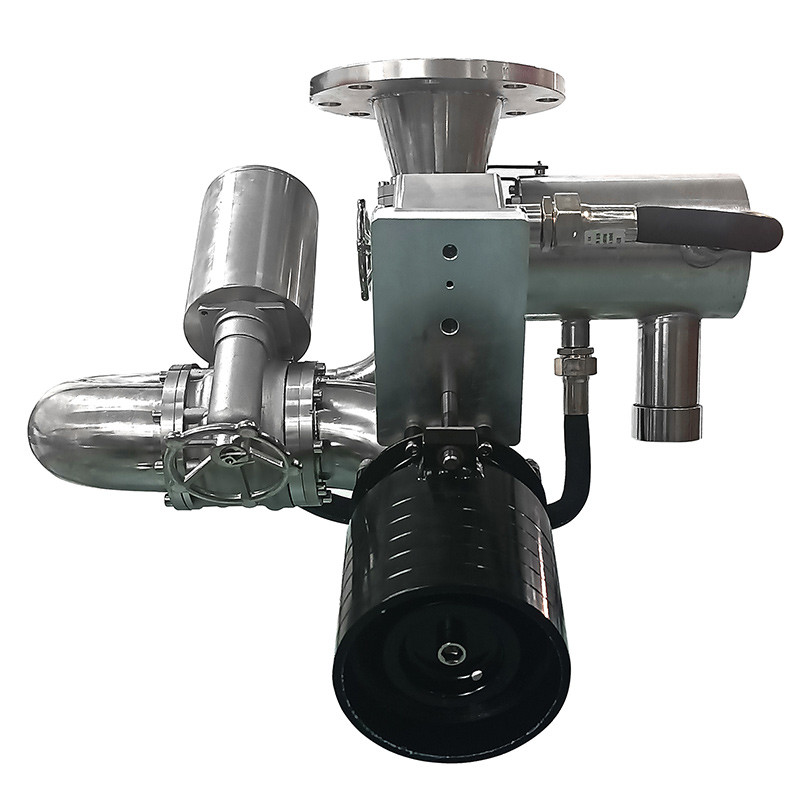

automatic fire monitor and flame detector for fire fighting
Product Overview
INTELLIGENT FIRE MONITOR AUTOMATIC FIRE SPRINKLER SYSTEM

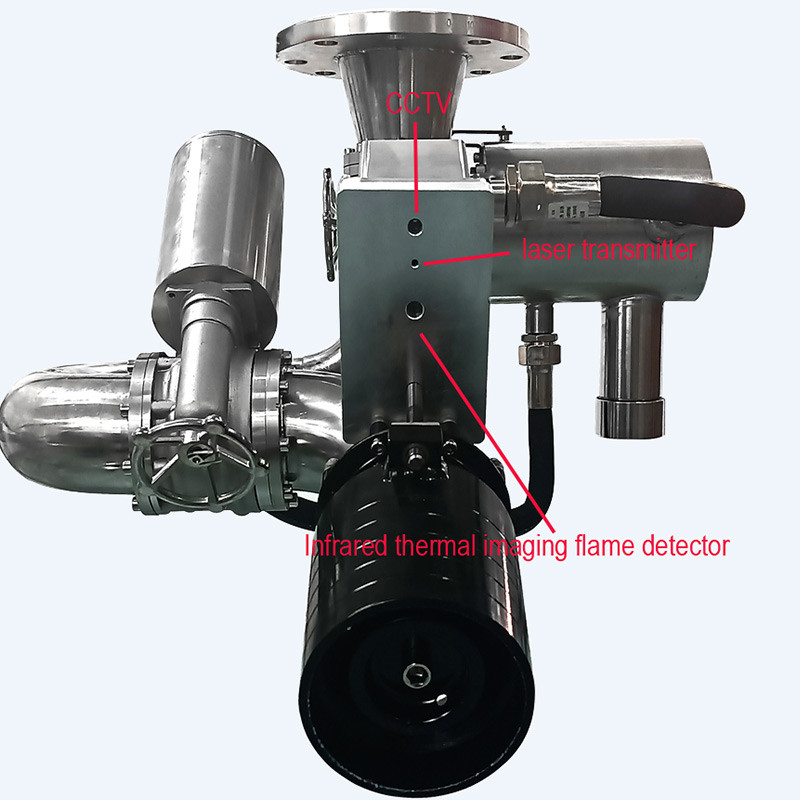

Our intelligent fire monitor use infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
ITEM#:ZDMS 0.8/40S-LZ II-Ex
Front elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Standard &Requirements
|
Inspection results
|
|
|
|
1
|
Rated working pressure (MPa)
|
≤1.0
|
0.8
|
/
|
|
|
2
|
Rated flow (L / s)
|
40×(1±8%)
|
41.5
|
/
|
|
|
3
|
Maximum protection radius(m)
|
≥60
|
60
|
/
|
|
|
4
|
Jet radius (m)
|
≥67
|
67
|
/
|
|
|
5
|
Monitoring radius(m)
|
≥80
|
80
|
/
|
|
|
6
|
Positioning time(s)
|
≤60
|
48
|
49.5
|
|
|
7
|
Installation height (m)
|
8~15
|
8
|
15
|
|
|
8
|
Horizontal swing angle(°)
|
≥180
|
360
|
|
|
|
9
|
Minimum pitch profile(°)
|
-90~+30
|
-90~+30
|
|
|
|
10
|
working temperature
|
4~55℃ ≤95%RH
|
4~55℃ ≤95%RH
|
|
|
PRODUCT CONFIGURATION

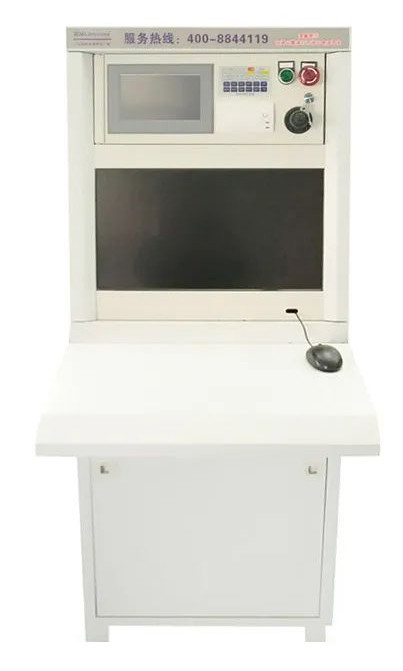

Control host

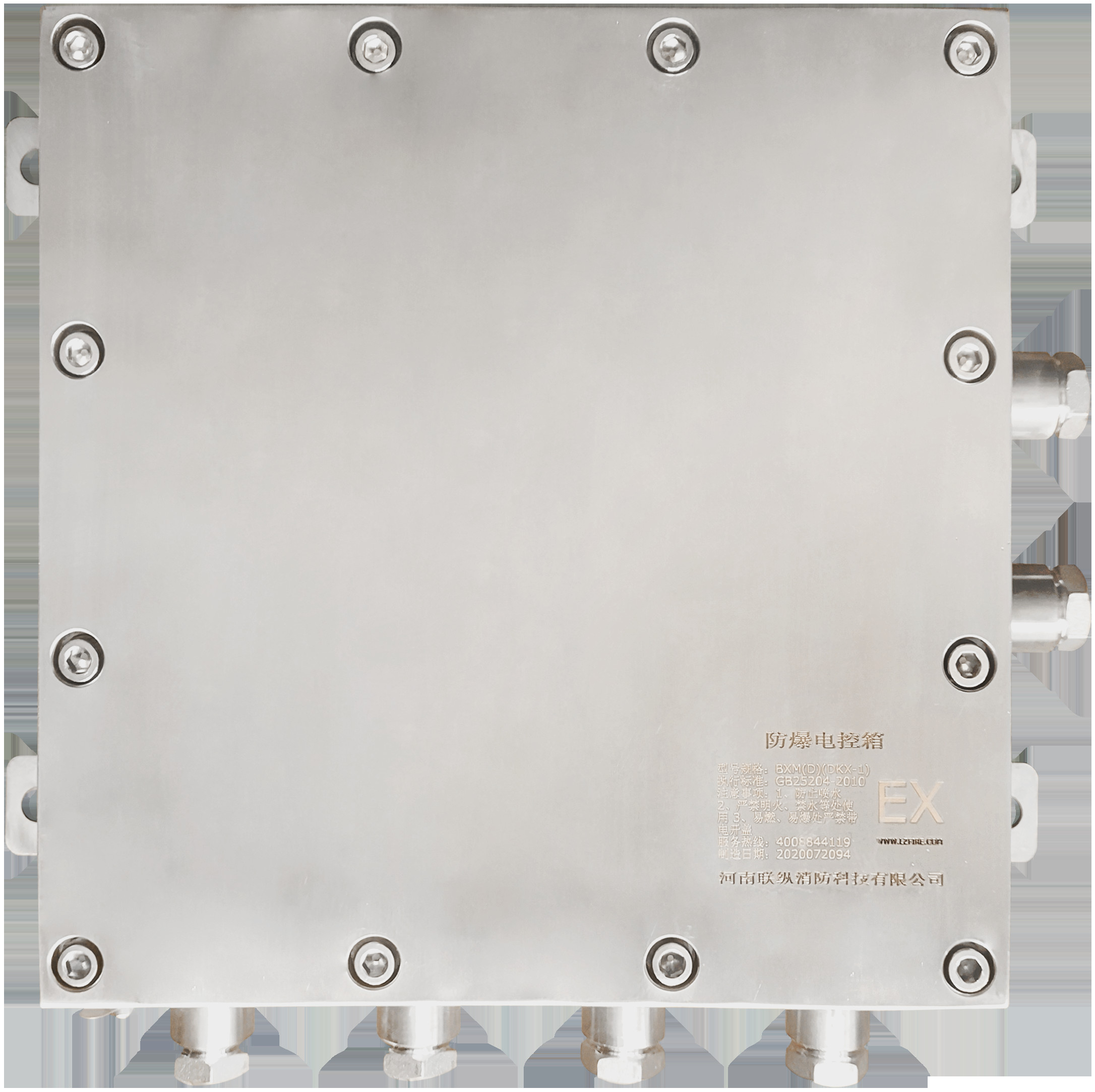

Electric control box

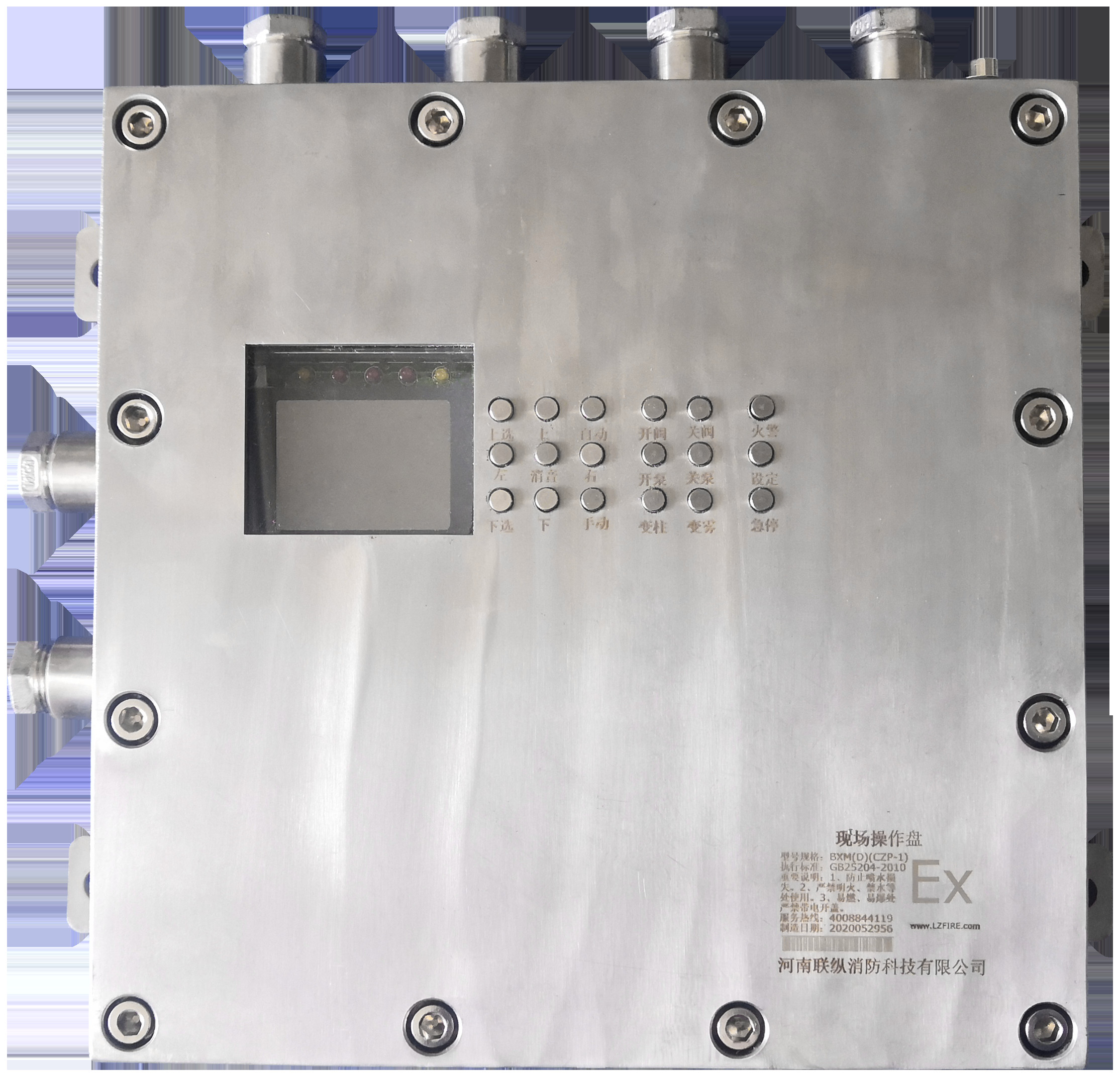

Field operation panel
SALES AND SERVICE NETWORK
Successful Project
Project in Malaysia
Project in Azerbaijan
Project in Singapore
WUHAN International airport
The people's hospital of JINING
HUANGGANG Rose Times Square
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of intelligent fire-fighting equipment, like Full-auto Fire Monitor|Intelligent Fire Water Cannon.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. FM or UL will be got within next year.
Q3: What are the advantages of your Intelligent Fire Monitor|Fire Water Cannon?
A3: Our Intelligent Fire Monitor|Fire Water Cannon integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
CONTACT
Alex Zhang
Sales Manager
Henan Linkzone Fire Technology Co.,Ltd
Add.:Room 602,Building 6,No.316, Lianhua street, High-tech Zone, Zhengzhou City, China
Email:alexzhang@linkzonefire.net
whatsapp:+8619836717667
Sales Manager
Henan Linkzone Fire Technology Co.,Ltd
Add.:Room 602,Building 6,No.316, Lianhua street, High-tech Zone, Zhengzhou City, China
Email:alexzhang@linkzonefire.net
whatsapp:+8619836717667
