DIMENSION:550×460mm
NET WEIGHT:31.5KG
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN bus
KEYWORD:INTELLIGENT FIRE WATER CANNON
All Products
-
Automatic Fire Monitor
-
Fire Fighting Monitor
-
Automatic Fire Water Monitor
-
Automatic Water Cannon
-
Automatic Fire Fighting Equipment
-
Automatic Fire Suppression Systems
-
Fire Fighting Water Cannon
-
Automatic Fire Protection Systems
-
Fire Water Cannon
-
Hydraulic Water Cannon
-
Automatic Fire Extinguishing System
-
Fire Extinguishing Device
360 Degree Rotate Automatic Fire Monitor Fire Fighting Explosion Proof
Product Details
| Rated Working Pressure | 1.0MPa | Rated Flow | 60L/s |
|---|---|---|---|
| Maximum Protection Radius | 60m | Jet Radius | 70m |
| Monitoring Radius | 80m | Positioning Time | ≤60s |
| Installation Height | 8~15m | Horizontal Swing Angle | 360° |
| Vertical Rotate Angle | -90°~+30° | Working Temperature | 4~55℃ |
| Port | Shanghai,Shenzhen,Qingdao,Tianjin,Dalian | ||
| Highlight | 360 Degree Rotate Automatic Fire Monitor,Explosion Proof Automatic Fire Monitor,Explosion Proof Automatic Fire Fighting Monitor |
||
Product Description

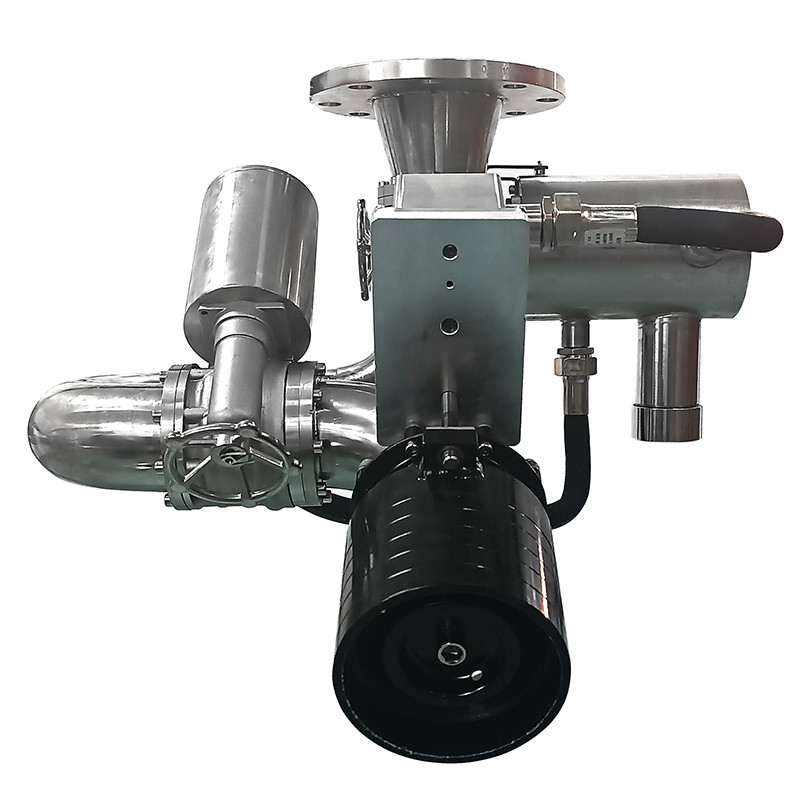

360 degree rotate Explosion proof automatic fire monitor and fire fighting equipment for Industrial and hazard place
Product Overview
INTELLIGENT FIRE MONITOR AUTOMATIC FIRE SPRINKLER SYSTEM
Our intelligent fire monitor use infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
ITEM#:ZDMS 1.0/60S-LZ II-Ex

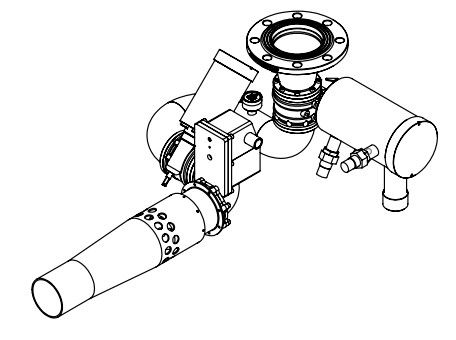

Front elevation
Left elevation
Front elevation

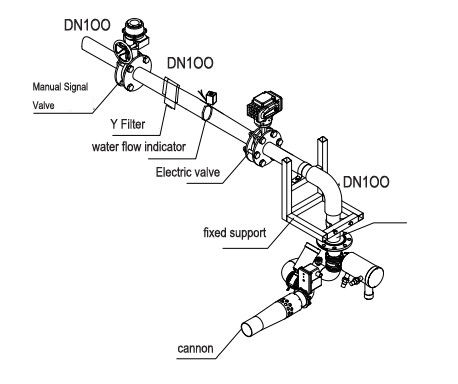

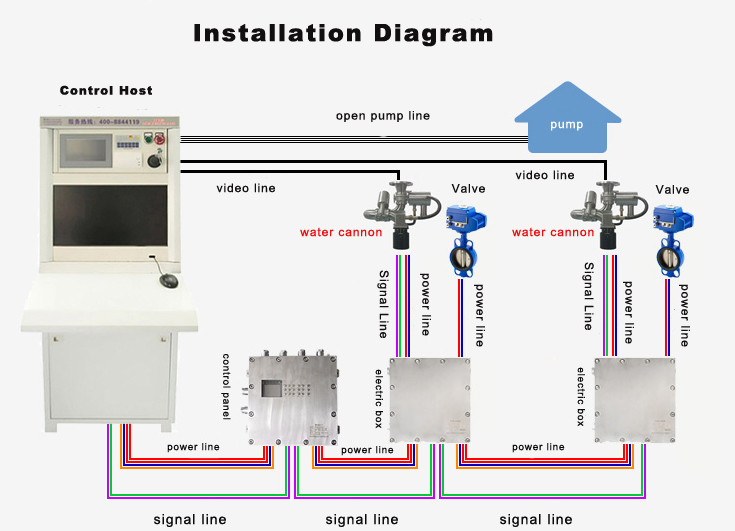

PRODUCT CONFIGURATION
Control host

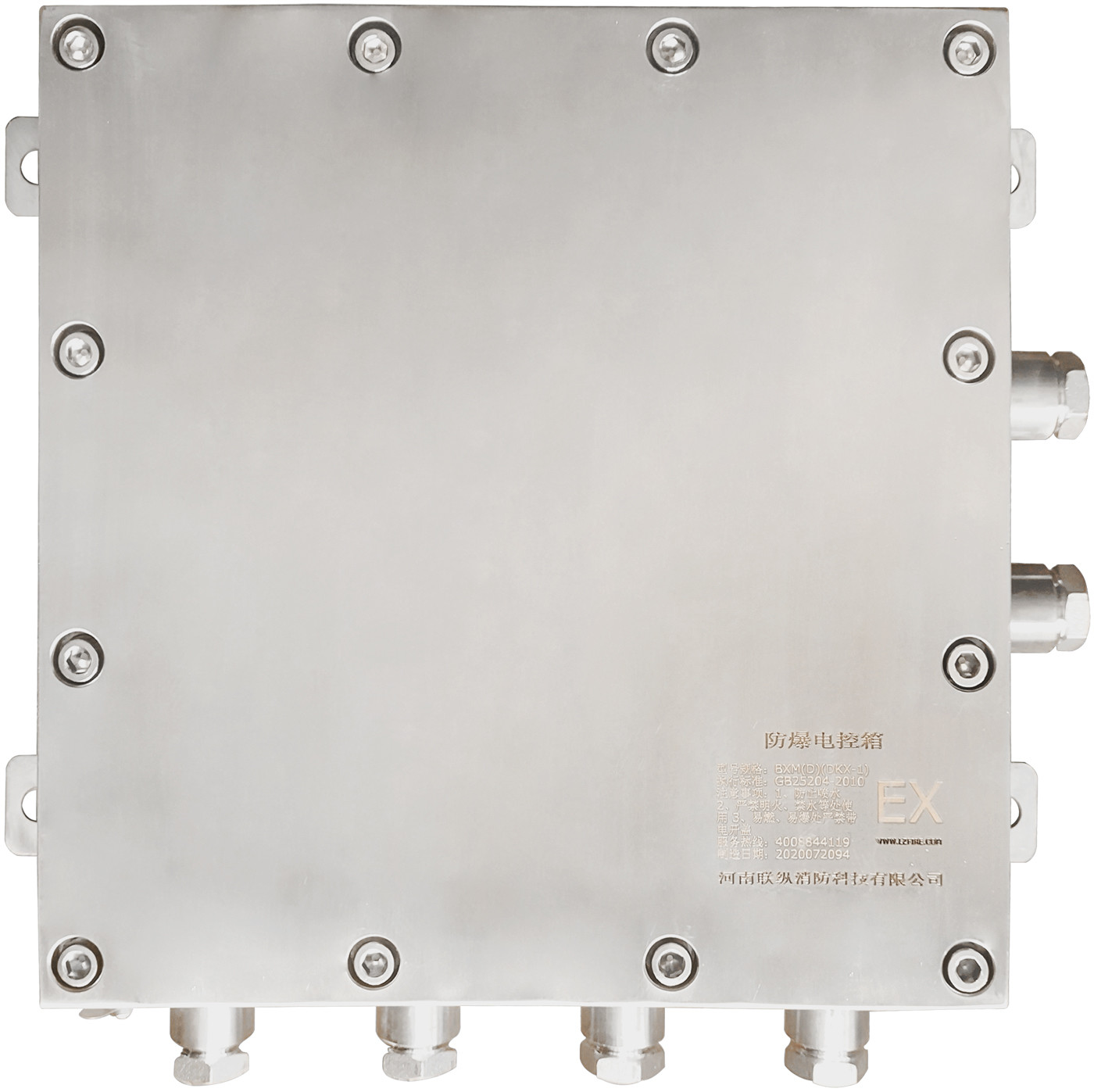

Electric control box

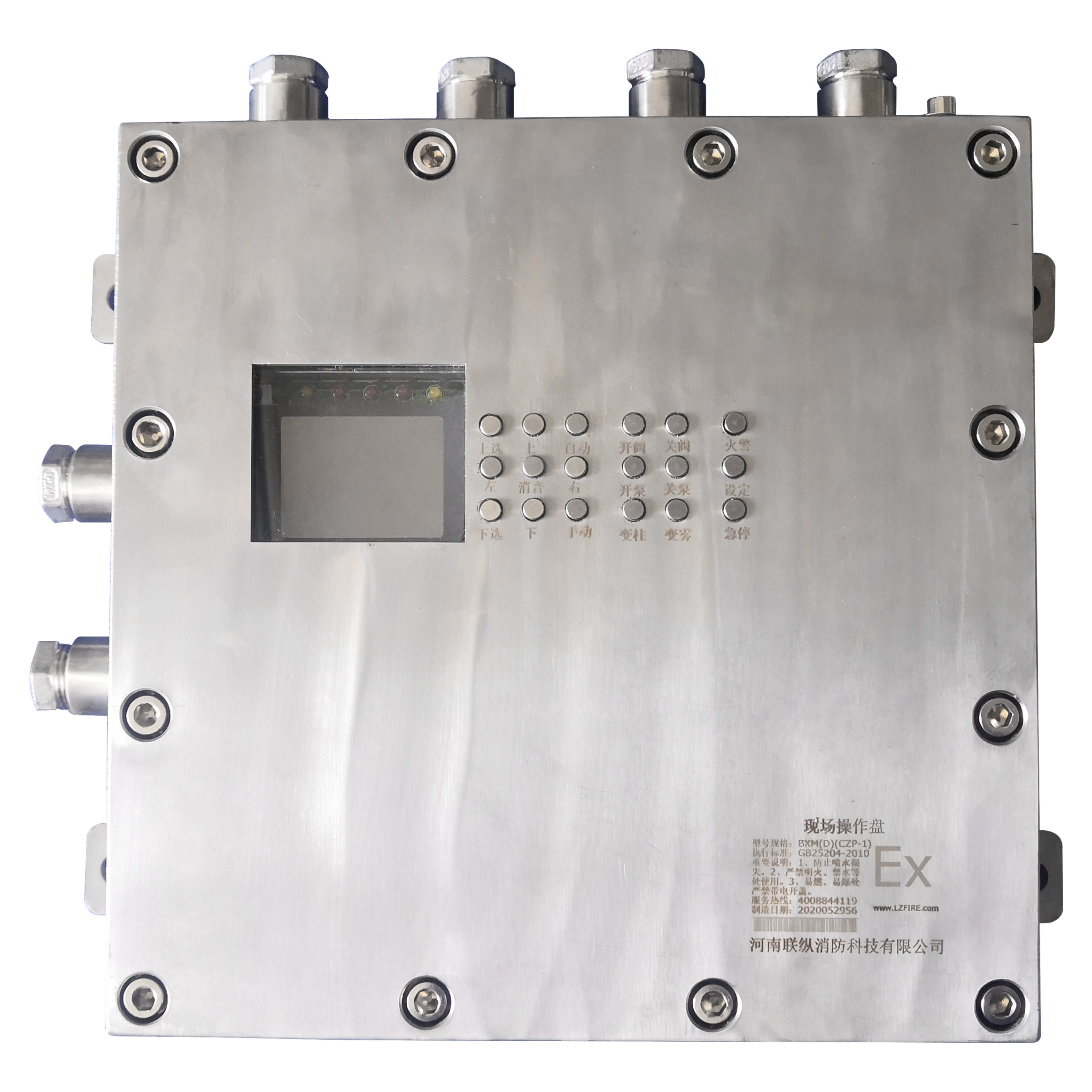

Field operation panel
SALES AND SERVICE NETWORK
Successful Project
Project in Malaysia
Project in Azerbaijan
Project in Singapore
WUHAN International airport
The people's hospital of JINING
HUANGGANG Rose Times Square
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of intelligent fire-fighting equipment, like Full-auto Fire Monitor|Intelligent Fire Water Cannon.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. FM or UL will be got within next year.
Q3: What are the advantages of your Intelligent Fire Monitor|Fire Water Cannon?
A3: Our Intelligent Fire Monitor|Fire Water Cannon integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
