High Pressure Long Jet Distance Fire Water Cannon Remote Fire Monitor 30m Protection

Place of Origin China
Brand Name LinkZone
Certification CCCF
Model Number ZDMS0.6/5S-LZII
Minimum Order Quantity 1set
Price Negotiable
Packaging Details carton box,32*32*35cm
Delivery Time 5~8 work days
Payment Terms T/T, L/C
Supply Ability 2000sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Automatic Fire Monitor Mode No. ZDMS0.6/5S-LZII
Working Voltage DC 36V Rated Pressure 0.6Mpa
Protection Radius 30m Rate Of Flow 5L/s
Installation Height 6~15m Communication Mode CAN Bus
Monitoring Radius 40m Applicable Voltage AC 110V~240V
High Light

Long Jet Distance Fire Water Cannon

,

Remote Fire Monitor 30m Protection

,

30m Protection Fire Water Cannon

Leave a Message
Product Description

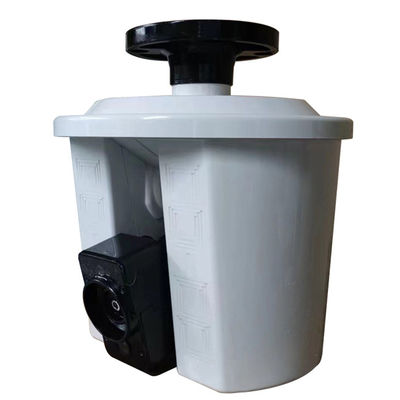

High Pressure Long Jet Distance Automatic Fire Monitor For Fire Extinguishing

Automatic fire monitor



Quick Detail:

●365days uninterrupted video monitoring.

●360° horizontal rotate and 120° vertical rotate.

●High pressure,quick response ,long jet distance and large protection range.

Infrared thermal imaging detecting technology ensure no miss alarming and no fault alarming.

●Multifunctions:Fire monitoring,Fire alarming and Fire extinguishing.

Remote control and automatically scanning.



Description:

Our automatic fire monitor system discharge large volumes of suppression agent from a single fixed location, and at high pressure to give it an excellent range of coverage.The automatic fire water monitor has built-in infrared thermal imaging detector, UV flame detector, closed circuit television camera. Real time dynamic flame location and laser corrector. The automatic fire water monitor works with the external UV flame detector to eliminate the detection blind area and increase early warning range.
When the automatic fire water monitor receives the fire early warning signal (UV or IR signal), the water monitor built-in image IR flame detector will automatically rotate along with the water monitor and lock the flame for 3 seconds, then spray to extinguish the fire. Otherwise, the water monitor will be considered as a false alarm, and the water monitor will reset automatically.The time spent from fire started to fire targeted is less than 30 seconds.

High Pressure Long Jet Distance Fire Water Cannon Remote Fire Monitor 30m Protection 0



Specifications:


  ZDMS0.6/5S-LZII ZDMS0.6/10S-LZII ZDMS0.8/20S-LZII ZDMS0.9/30S-LZII ZDMS0.8/40S-LZII ZDMS0.8/50S-LZII ZDMS1.0/60S-LZII

Working Voltage

DC36V DC36V DC24V DC24V DC24V DC24V DC24V
Rated Pressure 0.6MPa 0.6MPa 0.8MPa 0.9MPa 0.8MPa 0.8MPa 1.0MPa
Protection Radius ≤30m 35m 50m 55m 60m 65m 70m
Rate of flow 5L/s 10L/s 20L/s 30L/s 40L/s 50L/s 60L/s
Installation Height 6~15m 6~15m 8~35m 8~35m 8~35m 8~35m 8~35m
Jet radius 34m 39m 56m 62m 67m 73m 78m
Positioning time ≤30s ≤30s ≤60s ≤60s ≤60s ≤60s ≤60s
Monitoring radius 40m 40m 60m 60m 80m 80m 80m
Flange Connection DN50 DN50 DN80 DN80 DN100 DN100 DN100



Notices:

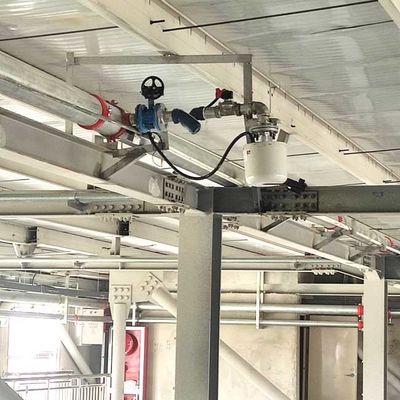

1.The side of cannon with label”this side to wall” must be faced to wall when installed.
2.Video line connected from DVR to cannon directly.
3.Signal lines must connect to signal lines of cannon where it is 2m from cannon.
4.Operation panel installed near the exit and 1.5m from ground,and from where operator can see all cannnons controlled by this operation panel.
5.Pls take care when handling cannon as there is UV detector at the bottom of cannon.The UV detetor is fragile.
6.Make sure there is no barrier around the cannon to stop the cannon 360 degree rotate.
7.The ground lead of DVR,earth wire and Lightning protection wire of control console need be connected to your ground lead.



Applications:

Our automatic fire monitor are wildly used in Industrial,commercial and residential fields.Such as airport, high-speed railway station, bus station, hotel atrium, museum, library, TV studio, gymnasium, science and technology museum, exhibition hall, convention center, theater, cinema, civic activity center, industrial plant, chemical plant, gas station, oil port,helicopter hangar, power plants, logistics centers, hospitals, large shopping malls, commercial complexes, colleges and universities, coal mines, warehouses and other places with large space.

High Pressure Long Jet Distance Fire Water Cannon Remote Fire Monitor 30m Protection 1
