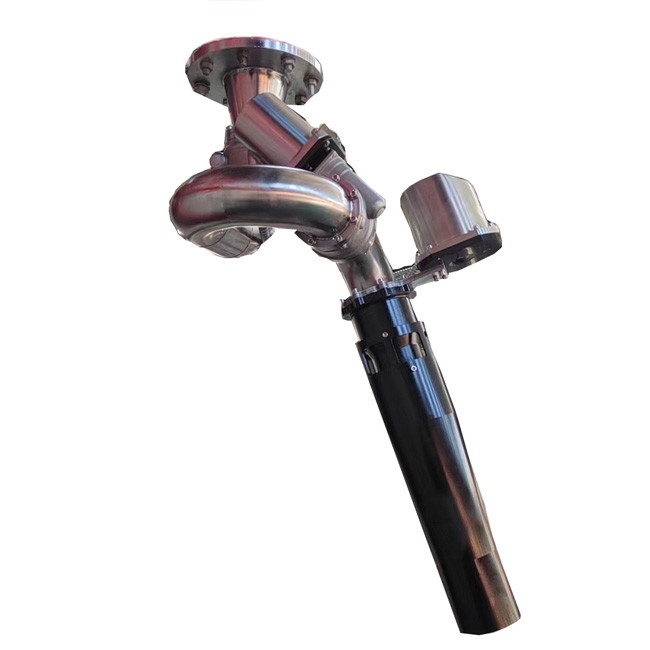

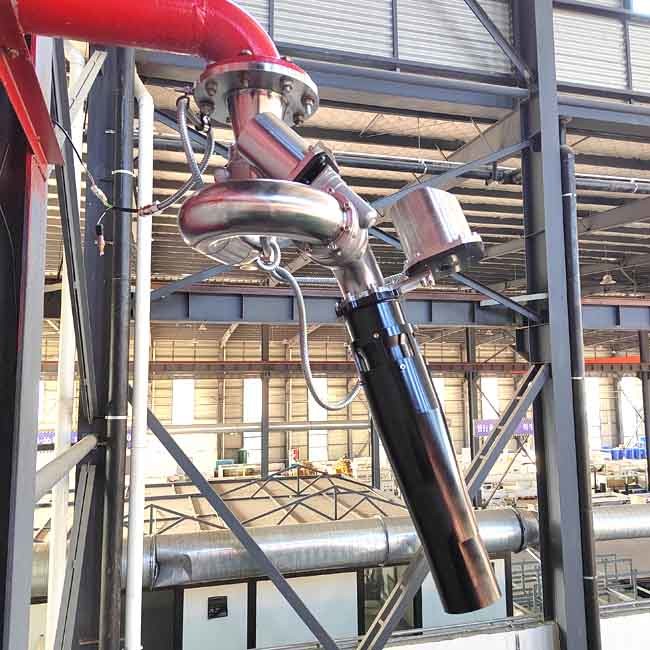

Water Discharge Robotic Fire Monitor System Fire Water Cannon DC 24V

Quick Detail:

●365days uninterrupted video monitoring.

●360° horizontal rotate and 120° vertical rotate.

●High pressure and large range of 360° coverage.

●Infrared thermal imaging detecting technology ensure no miss alarming and no fault alarming.

●Applicable voltage range:AC 110V~240V.

●Multifunctions:Fire monitoring,Fire alarming and Fire extinguishing.

●Energe saving,long jet distance.

●Remote control and automatically run.

Description:

The Automatic Fire Water Monitor is widely used in large-space places whose heights are between 6-25m. It applies the micro processor to control the fire monitor.It can probe fire the first time with detection technology of infrared sensing, ultravioletsensing and plasma sensing and put out fire in the bud. This product has high efficient that it can start and stop automatically and repeatedly with quick response.The installing contains pipeline installing and electrical installing.

This is a new auto-scan and positioning fire extinguishing device, which combines function of fire probing and extinguishing. It can probe fire, send alarm signals and adjust direction to aim at fire to put out it automatically. When a fire happens, it adjusts its nozzle direction and aim at fire after logic analysis of microprocessor. It is of features of timely probing, accurate positioning, concentrate flow jet, auto starting and stopping and big working range.

Working principle:



Specifications for all models:

	ZDMS0.6/5S-LZII	ZDMS0.6/10S-LZII	ZDMS0.8/20S-LZII	ZDMS0.9/30S-LZII	ZDMS0.8/40S-LZII	ZDMS0.8/50S-LZII	ZDMS1.0/60S-LZII
Working Voltage	DC36V	DC36V	DC24V	DC24V	DC24V	DC24V	DC24V
Rated Pressure	0.6MPa	0.6MPa	0.8MPa	0.9MPa	0.8MPa	0.8MPa	1.0MPa
Protection Radius	≤30m	≤35m	≤50m	≤55m	≤60m	≤65m	≤70m
Rate of flow	5L/s	10L/s	20L/s	30L/s	40L/s	50L/s	60L/s
Installation Height	6~15m	6~15m	8~35m	8~35m	8~35m	8~35m	8~35m
Jet radius	≤34m	≤39m	≤56m	≤62m	≤67m	≤73m	≤78m
Positioning time	≤30s	≤30s	≤60s	≤60s	≤60s	≤60s	≤60s
Monitoring radius	40m	40m	60m	60m	80m	80m	80m
Flange Connection	DN50	DN50	DN80	DN80	DN100	DN100	DN100



Notices:

1.The side of Fire Fighting Monitor with label”this side to wall” must be faced to wall when installed.
2.Video line connected from DVR to cannon directly.
3.Signal lines must connect to signal lines of cannon where it is 2m from cannon.
4.Operation panel installed near the exit and 1.5m from ground,and from where operator can see all cannnons controlled by this operation panel.
5.Pls take care when handling cannon as there is UV detector at the bottom of cannon.The UV detetor is fragile.
6.Make sure there is no barrier around the cannon to stop the cannon 360 degree rotate.
7.The ground lead of DVR,earth wire and Lightning protection wire of control console need be connected to your ground lead.



Applications:

Our Automatic Fire Water Monitor are wildly used in Industrial,commercial and residential fields.Such as airport, high-speed railway station, bus station, hotel atrium, museum, library, TV studio, gymnasium, science and technology museum, exhibition hall, convention center, theater, cinema, civic activity center, industrial plant, chemical plant, gas station, oil port,helicopter hangar, power plants, logistics centers, hospitals, large shopping malls, commercial complexes, colleges and universities, coal mines, warehouses and other places with large space.

FAQ:

Q1: Are you a manufacturer?

A1: Yes. We are a professional manufacture of Automatic Fire Water Monitor which has the most advanced technology.

Q2: What certificates do you have?

A2: We have CCCF and ISO certificates at present. All products tested by CHINA National Fire Equipment Quality Inspection and testing Center.

Q3: What are the advantages of your Automatic Fire Water Monitor?

A3: Our Automatic Fire Water Monitor adopt the most advanced Infrared thermal imaging detecting and tracking technology. It integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Automatically Fire Extinguishing.



Our factory and products reported by CCTV
