Early Stage Fire Detector Fire Extinguishing Device 480*360mm Electric Fire Monitor

  • Early Stage Fire Detector Fire Extinguishing Device 480*360mm Electric Fire Monitor
  • Early Stage Fire Detector Fire Extinguishing Device 480*360mm Electric Fire Monitor
  • Early Stage Fire Detector Fire Extinguishing Device 480*360mm Electric Fire Monitor
  • Early Stage Fire Detector Fire Extinguishing Device 480*360mm Electric Fire Monitor
  • Early Stage Fire Detector Fire Extinguishing Device 480*360mm Electric Fire Monitor
  • Early Stage Fire Detector Fire Extinguishing Device 480*360mm Electric Fire Monitor
Place of Origin Henan, China
Brand Name LinkZone
Model Number ZDMS0.6/5S-LZ II
Price $1,030.00 - $1,200.00/sets
Packaging Details International Standard Export Packing
Supply Ability 200000 Set/Sets per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Working Pressure (MPa) 0.6 Rated Flow (L / S) 5
Maximum Protection Radius(m) 30 Jet Radius (m) 34
Monitoring Radius(m) 40 Positioning Time(s) ≤30
Installation Height (m) 6~15 Horizontal Swing Angle(°) 360°
Vertical Deflection Angle(°) -90~+30 Keyword Fire Water Cannon
Port Shanghai,Shenzhen,Qingdao,Tianjin,Dalian
High Light

Fire Extinguishing Device 480*360mm Fire Monitor

,

480*360mm Electric Fire Monitor

,

Early Stage Detection Electric Fire Monitor
Leave a Message
Product Description

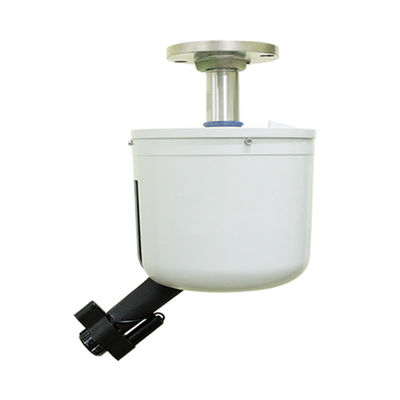

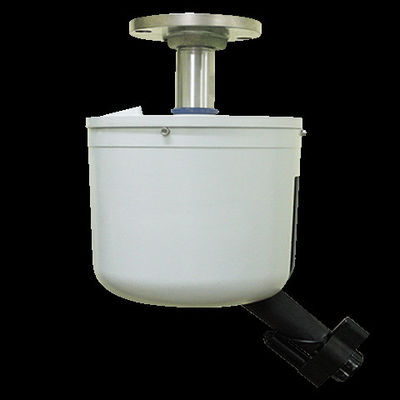

Early Stage Fire Detector Automatic Fire Water Cannon For Fire Fighting

Product Overview



INTELLIGENT FIRE MONITOR AUTOMATIC FIRE SPRINKLER SYSTEM
Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.

FEATURES AT A GLANCE
DIMENSION:480×360mm
NET WEIGHT:8.1KG
MODEL: ZDMS0.6/5S-LZ II
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN
KEYWORD:INTELLIGENT FIRE MONITOR
Early Stage Fire Detector Fire Extinguishing Device 480*360mm Electric Fire Monitor 0
Early Stage Fire Detector Fire Extinguishing Device 480*360mm Electric Fire Monitor 1
Right elevation
Early Stage Fire Detector Fire Extinguishing Device 480*360mm Electric Fire Monitor 1
Left elevation
Early Stage Fire Detector Fire Extinguishing Device 480*360mm Electric Fire Monitor 1
Front elevation

PRODUCT SPECIFICATIONS
No
Item
Standard &Requirements
Inspection results

1
Rated working pressure (MPa)
≤0.8
0.6
/
2
Rated flow (L / s)
5×(1±8%)
5.05
/
3
Maximum protection radius(m)
≥30
30
/
4
Jet radius (m)
≥34
34
/
5
Monitoring radius(m)
≥40
40
/
6
Positioning time(s)
≤30
29.5
29.9
7
Installation height (m)
6~15
6
15
8
Horizontal swing angle(°)
≥180
360

9
Minimum pitch profile(°)
-90~+30
-90~+30

10
Diameter of water-inlet(mm)
Φ 34.5 ± 0.5
Φ 34.5 ± 0.5

11
Diameter of water-outlet(mm)
Φ 15.5 ± 0.5
Φ 15.5 ± 0.5

PRODUCT CONFIGURATION
Early Stage Fire Detector Fire Extinguishing Device 480*360mm Electric Fire Monitor 4
Control host
Early Stage Fire Detector Fire Extinguishing Device 480*360mm Electric Fire Monitor 5
Electric control box
Early Stage Fire Detector Fire Extinguishing Device 480*360mm Electric Fire Monitor 6
Field operation panel
SALES AND SERVICE NETWORK
Early Stage Fire Detector Fire Extinguishing Device 480*360mm Electric Fire Monitor 7
Successful Project
Early Stage Fire Detector Fire Extinguishing Device 480*360mm Electric Fire Monitor 8
Project in Malaysia
Early Stage Fire Detector Fire Extinguishing Device 480*360mm Electric Fire Monitor 9
Project in Azerbaijan
Early Stage Fire Detector Fire Extinguishing Device 480*360mm Electric Fire Monitor 10
Project in Singapore
