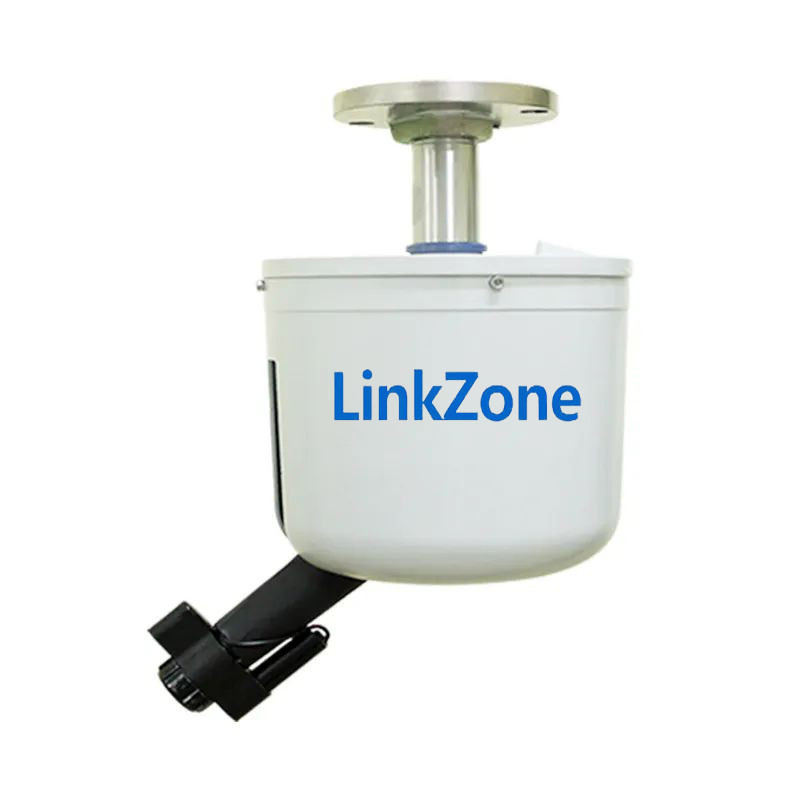

Quick Response 5L/S Fire Alarm And Suppression System Fire Protection Monitor

  • Quick Response 5L/S Fire Alarm And Suppression System Fire Protection Monitor
  • Quick Response 5L/S Fire Alarm And Suppression System Fire Protection Monitor
  • Quick Response 5L/S Fire Alarm And Suppression System Fire Protection Monitor
  • Quick Response 5L/S Fire Alarm And Suppression System Fire Protection Monitor
  • Quick Response 5L/S Fire Alarm And Suppression System Fire Protection Monitor
Place of Origin Henan, China
Brand Name LinkZone
Model Number ZDMS 0.6/5S-LZ II
Minimum Order Quantity 3 sets
Price $1,030.00 - $1,200.00/sets
Packaging Details International Standard Export Packing
Supply Ability 200000 Set/Sets per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Working Pressure (MPa) 0.6 Rated Flow (L / S) 5
Maximum Protection Radius(m) 30 Jet Radius (m) 34
Monitoring Radius(m) 40 Positioning Time(s) ≤30
Installation Height (m) 6~15 Horizontal Swing Angle(°) 360°
Minimum Pitch Profile(°) -90~+30 Overall Dimensions 35*23*48CM,8KG
Port Shanghai,Shenzhen,Qingdao,Tianjin,Dalian
High Light

5L/S Fire Alarm And Suppression System

,

Quick Response 5L/S fire protection monitor

,

Fire Alarm fire protection monitor
Leave a Message
Product Description

quick response fire alarm and suppression system

Product Overview



INTELLIGENT FIRE MONITOR AUTOMATIC FIRE SPRINKLER SYSTEM
Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.

FEATURES AT A GLANCE
DIMENSION:480×360mm
NET WEIGHT:8.1KG
MODEL: ZDMS0.6/5S-LZ II
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN
KEYWORD:INTELLIGENT FIRE MONITOR
Quick Response 5L/S Fire Alarm And Suppression System Fire Protection Monitor 0
Quick Response 5L/S Fire Alarm And Suppression System Fire Protection Monitor 1
Right elevation
Quick Response 5L/S Fire Alarm And Suppression System Fire Protection Monitor 1
Left elevation
Quick Response 5L/S Fire Alarm And Suppression System Fire Protection Monitor 1
Front elevation

PRODUCT SPECIFICATIONS
No
Item
Standard &Requirements
Inspection results

1
Rated working pressure (MPa)
≤0.8
0.6
/
2
Rated flow (L / s)
5×(1±8%)
5.05
/
3
Maximum protection radius(m)
≥30
30
/
4
Jet radius (m)
≥34
34
/
5
Monitoring radius(m)
≥40
40
/
6
Positioning time(s)
≤30
29.5
29.9
7
Installation height (m)
6~15
6
15
8
Horizontal swing angle(°)
≥180
360

9
Minimum pitch profile(°)
-90~+30
-90~+30

10
Diameter of water-inlet(mm)
Φ 34.5 ± 0.5
Φ 34.5 ± 0.5

11
Diameter of water-outlet(mm)
Φ 15.5 ± 0.5
Φ 15.5 ± 0.5

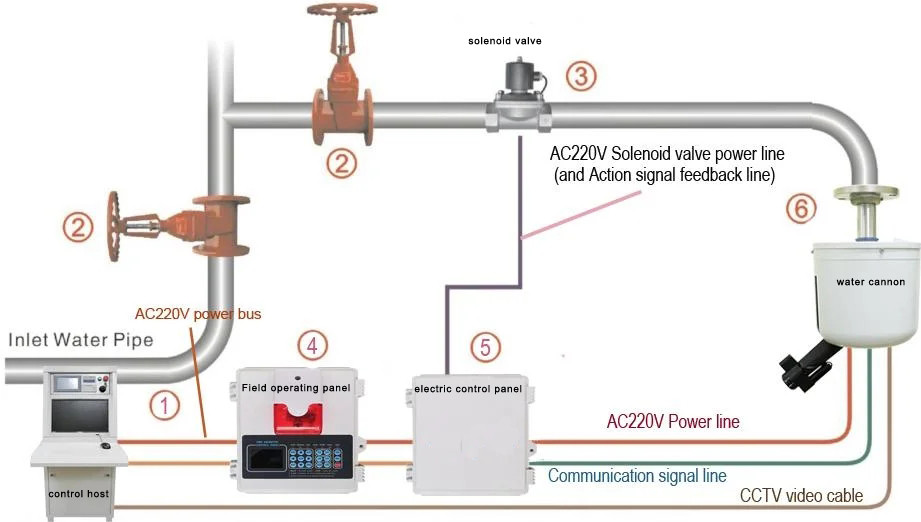

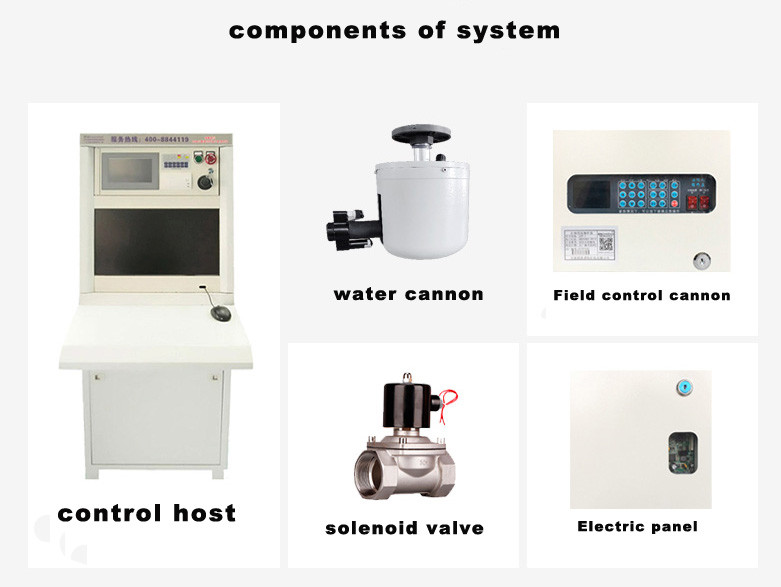

PRODUCT CONFIGURATION
Quick Response 5L/S Fire Alarm And Suppression System Fire Protection Monitor 4
Control host
Quick Response 5L/S Fire Alarm And Suppression System Fire Protection Monitor 5
Electric control box
Quick Response 5L/S Fire Alarm And Suppression System Fire Protection Monitor 6
Field operation panel
SALES AND SERVICE NETWORK
Quick Response 5L/S Fire Alarm And Suppression System Fire Protection Monitor 7
Successful Project
Quick Response 5L/S Fire Alarm And Suppression System Fire Protection Monitor 8
Project in Malaysia
Quick Response 5L/S Fire Alarm And Suppression System Fire Protection Monitor 9
Project in Azerbaijan
Quick Response 5L/S Fire Alarm And Suppression System Fire Protection Monitor 10
Project in Singapore
