Remote Control Automatic Fire Monitor High Pressure For Fighting Engineering 0.8MPa

  • Remote Control Automatic Fire Monitor High Pressure For Fighting Engineering 0.8MPa
  • Remote Control Automatic Fire Monitor High Pressure For Fighting Engineering 0.8MPa
  • Remote Control Automatic Fire Monitor High Pressure For Fighting Engineering 0.8MPa
  • Remote Control Automatic Fire Monitor High Pressure For Fighting Engineering 0.8MPa
Place of Origin Henan, China
Brand Name LinkZone
Certification CCCF
Model Number ZDMS 0.8/20S-LZ II
Minimum Order Quantity 1sets
Price Negotiable
Packaging Details International Standard Export Packing
Supply Ability 200000 Set/Sets per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Automatic Fire Monitor Rated Working Pressure (MPa) 0.8
Rated Flow (L / S) 20 Maximum Protection Radius(m) 50
Jet Radius (m) 55 Monitoring Radius(m) 60
Positioning Time(s) ≤30 Installation Height (m) 8~25
Horizontal Swing Angle(°) 360
High Light

Remote Control CCCF Automatic Fire Monitor

,

Automatic Fire Monitor For Fighting Engineering

,

0.8MPa Automatic Fire Fighting Monitor
Leave a Message
Product Description

Product Overview

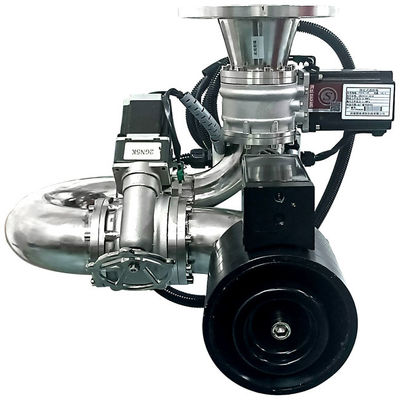

AUTOMATIC FIRE MONITOR
Our automatic fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
ITEM#:ZDMS 0.8/20S-LZ II
DIMENSION:580×360mm
NET WEIGHT:25KG
MODEL: ZDMS0.8/20S-LZ II
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN bus
KEYWORD:AUTOMATIC FIRE MONITOR
Remote Control Automatic Fire Monitor High Pressure For Fighting Engineering 0.8MPa 0
Remote Control Automatic Fire Monitor High Pressure For Fighting Engineering 0.8MPa 1

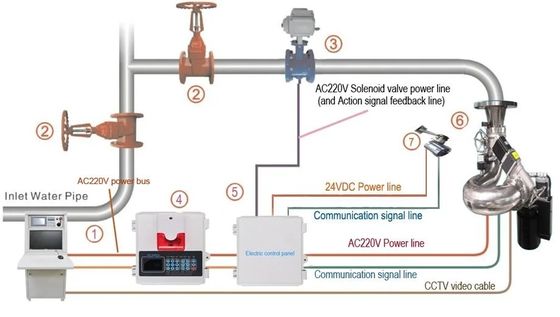

system chart

PRODUCT SPECIFICATIONS
No
Item
Standard &Requirements
Inspection results

1
Rated working pressure (MPa)
≤0.8
0.6
/
2
Rated flow (L / s)
20×(1±8%)
20.1
/
3
Maximum protection radius(m)
≥50
50
/
4
Jet radius (m)
≥55
55
/
5
Monitoring radius(m)
≥80
80
/
6
Positioning time(s)
≤60
59
60
7
Installation height (m)
8~15
8
15
8
Horizontal swing angle(°)
≥180
360

9
Minimum pitch profile(°)
-90~+30
-90~+30

10
working temperature
4~55℃ ≤95%RH
4~55℃ ≤95%RH

11
Guidance system
Φ 15.5 ± 0.5
Φ 15.5 ± 0.5

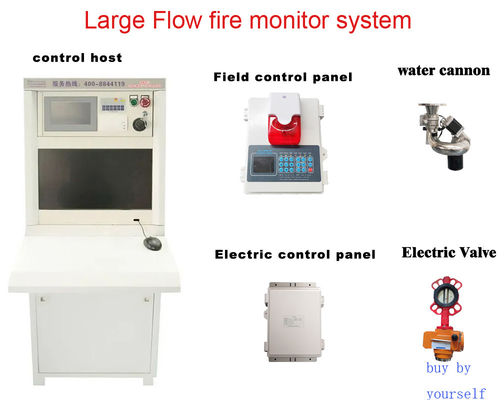

PRODUCT CONFIGURATION OF AUTOMATIC FIRE MONITOR
Remote Control Automatic Fire Monitor High Pressure For Fighting Engineering 0.8MPa 2
Remote Control Automatic Fire Monitor High Pressure For Fighting Engineering 0.8MPa 1
SALES AND SERVICE NETWORK
Remote Control Automatic Fire Monitor High Pressure For Fighting Engineering 0.8MPa 4
Successful Project
Remote Control Automatic Fire Monitor High Pressure For Fighting Engineering 0.8MPa 5

WUHAN airport

Remote Control Automatic Fire Monitor High Pressure For Fighting Engineering 0.8MPa 6

XIXIA gym

Remote Control Automatic Fire Monitor High Pressure For Fighting Engineering 0.8MPa 7

CHUZHOU Science&Technology Museum


FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of automatic fire monitor, like Full-auto Fire Monitor|Intelligent Fire Water Cannon.
Q2: What certificates do you have?
A2: We only have CCCF and ISO at present. We plan to do FM certificate later.
Q3: What are the advantages of your Automatic Fire Monitor?
A3: Our

Automatic Fire Monitor integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
