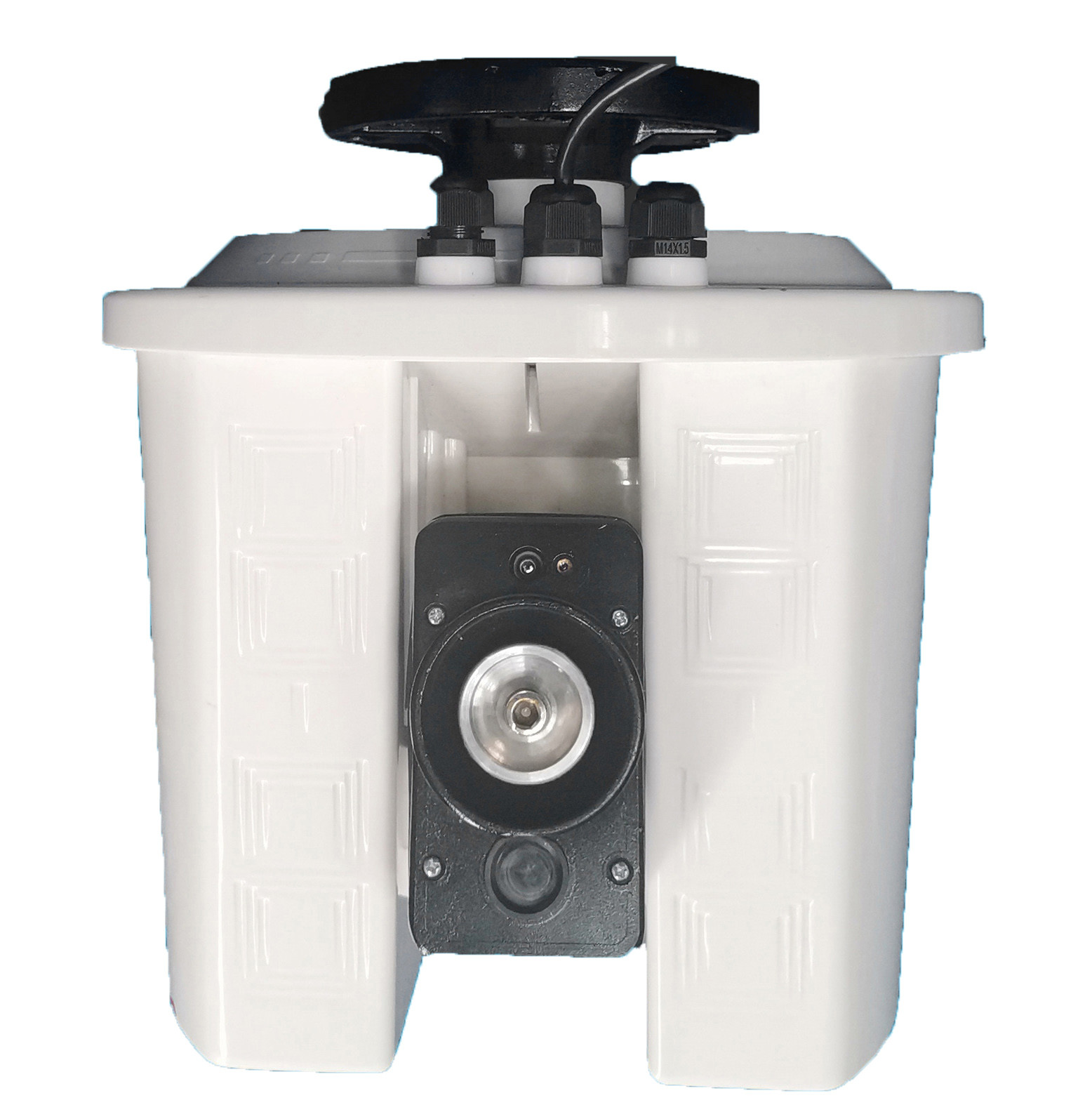

High Pressure Automatic LinkZone Fire Monitor 40m Large Protection Range
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Automatic Fire Monitor | Rated Working Pressure | 0.6MPa |
|---|---|---|---|
| Rated Flow | 10L/s | Maximum Protection Radius(m) | 35m |
| Jet Radius (m) | 39m | Monitoring Radius(m) | 40m |
| Positioning Time(s) | ≤30s | Installation Height (m) | 6~15m |
| Horizontal Swing Angle | 360° | Minimum Pitch Profile(°) | -90°~+30° |
| High Light | High Pressure Automatic LinkZone Fire Monitor,Automatic LinkZone Fire Monitor 40 m,Large Protection Range LinkZone Fire Monitor |
||
Product Description
Product Overview
Top -ranking automatic fire monitor
Our automatic fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE

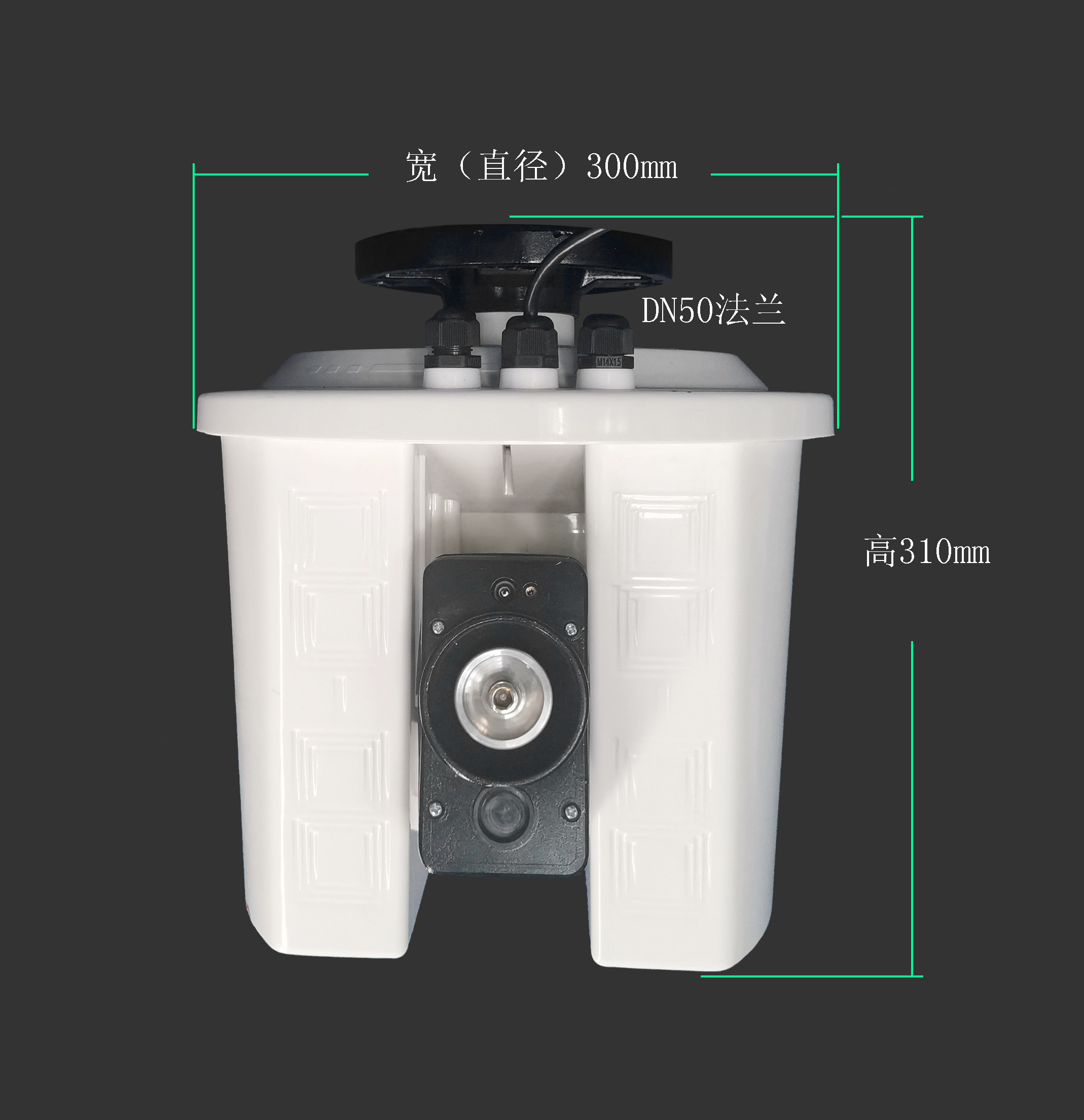

DIMENSION:300×310mm
NET WEIGHT:6KG
MODEL: ZDMS0.6/10S-LZ II
SENSOR:IR SENSOR AND UV DETECTOR
VOLTAGE:AC220V
COMMUNICATION MODE:CAN bus
KEYWORD:AUTOMATIC FIRE MONITOR
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Standard &Requirements
|
Inspection results
|
|
|
|
1
|
Rated working pressure (MPa)
|
≤0.8
|
0.6
|
/
|
|
|
2
|
Rated flow (L / s)
|
5×(1±8%)
|
5.05
|
/
|
|
|
3
|
Maximum protection radius(m)
|
≥30
|
30
|
/
|
|
|
4
|
Jet radius (m)
|
≥34
|
34
|
/
|
|
|
5
|
Monitoring radius(m)
|
≥40
|
40
|
/
|
|
|
6
|
Positioning time(s)
|
≤30
|
29.5
|
29.9
|
|
|
7
|
Installation height (m)
|
6~15
|
6
|
15
|
|
|
8
|
Horizontal swing angle(°)
|
≥180
|
360
|
|
|
|
9
|
Minimum pitch profile(°)
|
-90~+30
|
-90~+30
|
|
|
|
10
|
Diameter of water-inlet(mm)
|
Φ 34.5 ± 0.5
|
Φ 34.5 ± 0.5
|
|
|
|
11
|
Diameter of water-outlet(mm)
|
Φ 15.5 ± 0.5
|
Φ 15.5 ± 0.5
|
|
|

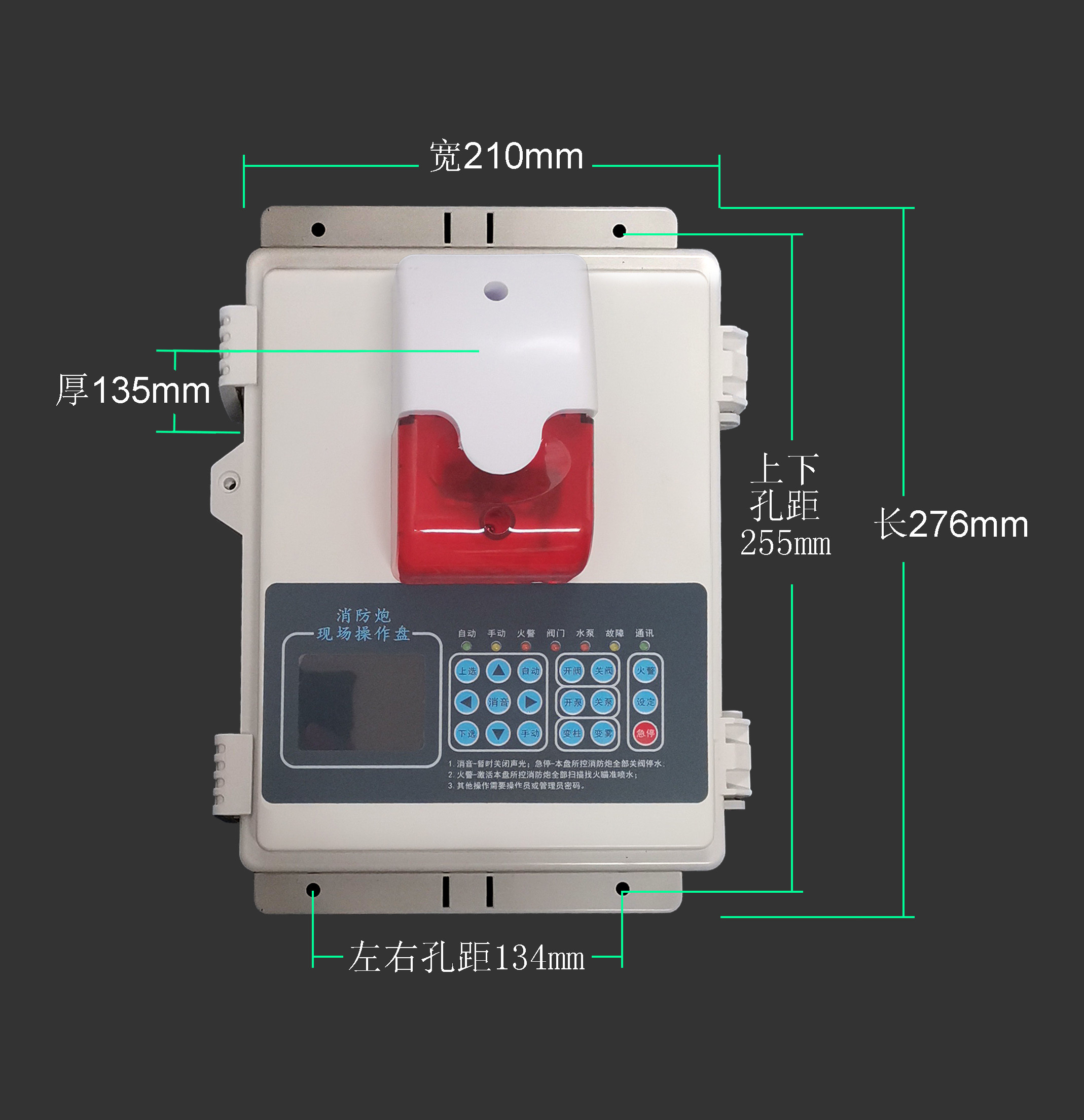

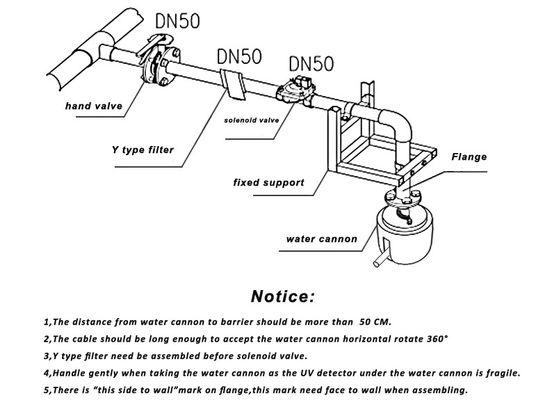

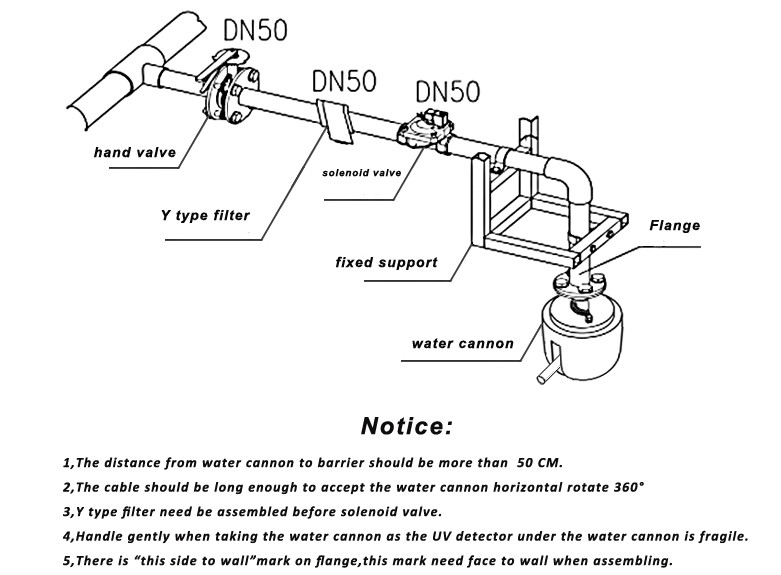

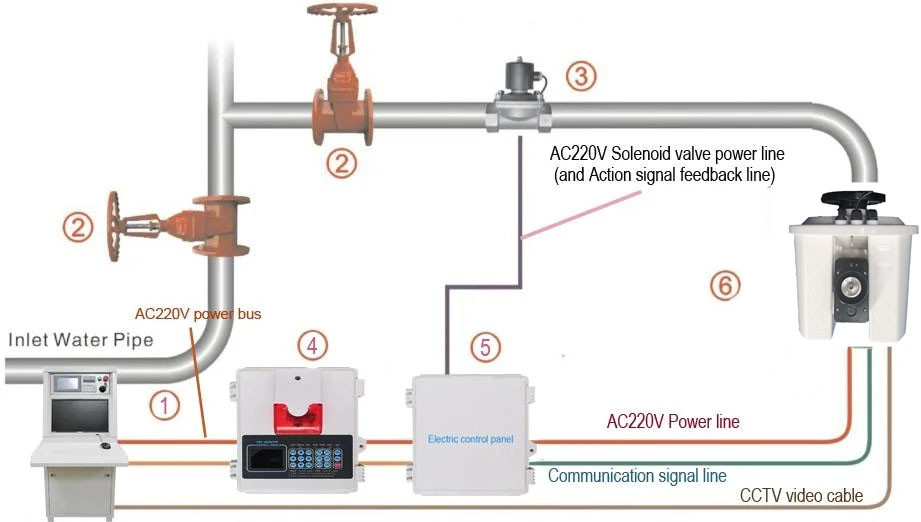

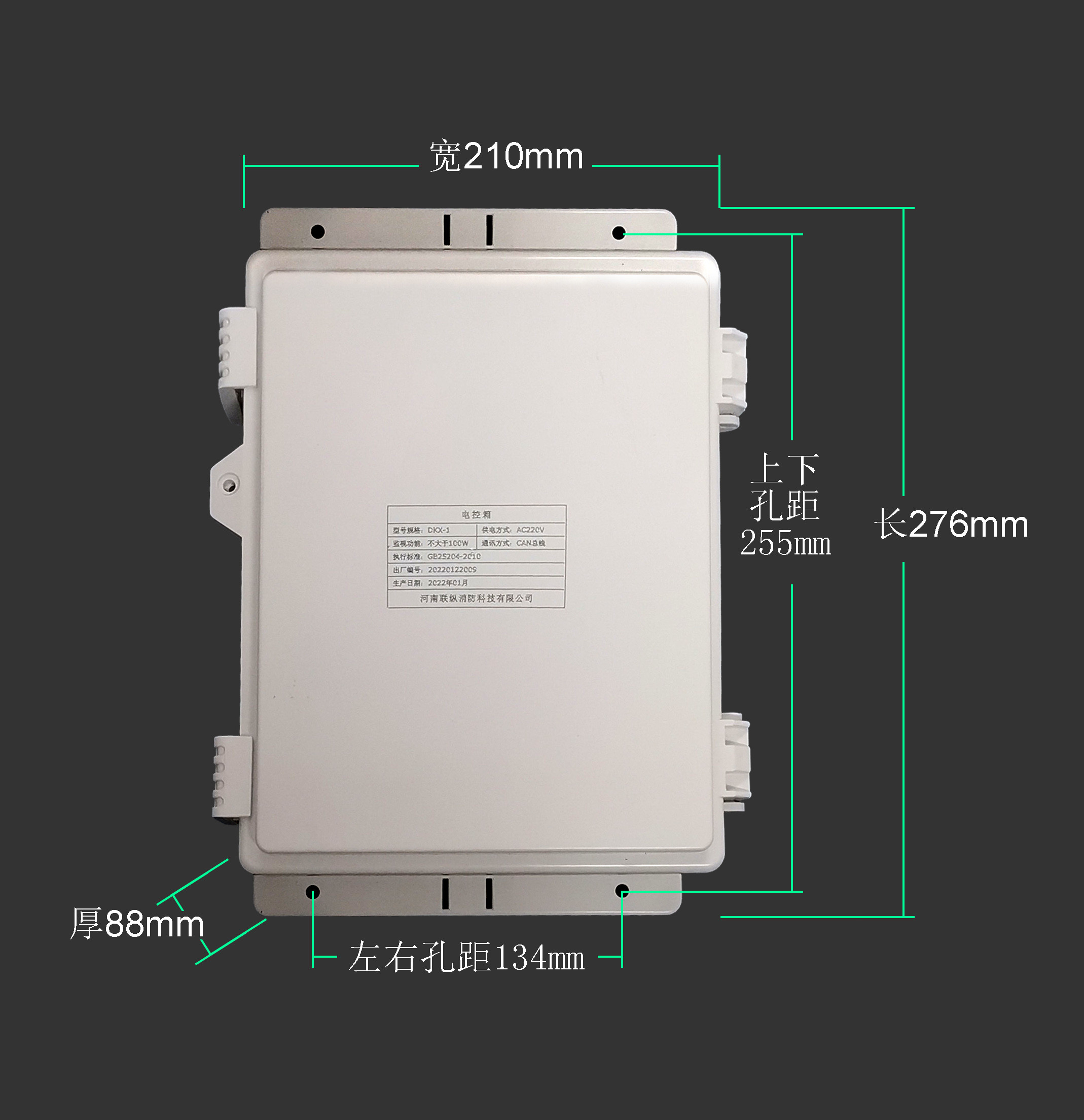

CONFIGURATION OF AUTOMATIC FIRE MONITOR SYSTEM
SALES AND SERVICE NETWORK
Successful Project
Project in Malaysia
Project in Azerbaijan
Project in Singapore
WuHan International Airport
XIXIA gym
LIAONING SUIHUA WANDA PLAZA
ZHONGBAI LAIFENG shopping mall
CHUZHOU science and technology museum
CHONGQING XINLONG Industrial plant
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are the leader manufacture of automatic fire monitor,we have the best technology for auto tracking and targeting.
Q2: What certificates do you have?
A2: We only have CCCF and ISO at present. We plan to do FM later.
Q3: What are the advantages of your Automatic Fire Monitor|Fire Water Cannon?
A3: Our automatic fire monitor integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
