DIMENSION:580×360mm
NET WEIGHT:10KG
MODEL: ZDMS0.8/20S-LZ II
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN bus
KEYWORD:Automatic Fire Monitor
All Products
-
Automatic Fire Monitor
-
Fire Fighting Monitor
-
Automatic Fire Water Monitor
-
Automatic Water Cannon
-
Automatic Fire Fighting Equipment
-
Automatic Fire Suppression Systems
-
Fire Fighting Water Cannon
-
Automatic Fire Protection Systems
-
Fire Water Cannon
-
Hydraulic Water Cannon
-
Automatic Fire Extinguishing System
-
Fire Extinguishing Device
Contact Person :
Alex Zhang
Phone Number :
+86 19836717667
Whatsapp :
+008619836717667
CCCF Stainless Steel Automatic Fire Monitor 60M Monitoring Large Space Fire Protection
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Automatic Fire Monitor | Rated Working Pressure (MPa) | 0.8 |
|---|---|---|---|
| Rated Flow (L / S) | 20 | Maximum Protection Radius(m) | 50 |
| Jet Radius (m) | 55 | Monitoring Radius(m) | 60 |
| Positioning Time(s) | ≤30 | Installation Height (m) | 8~15 |
| Horizontal Swing Angle(°) | ≥180 | Voltage | AC 110V~240V |
| High Light | Automatic Fire Monitor 60M Monitoring,60M Monitoring Fire Protection Monitor,CCCF Stainless Steel Automatic Fire Monitor |
||
Product Description
Stainless Steel Automatic Fire Monitor For Large Space Fire Protection
Product Overview

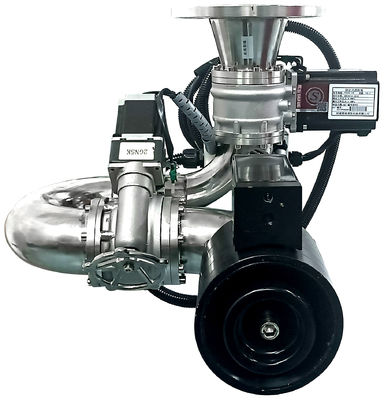

Automatic Fire Monitor
Our intelligent Automatic Fire Monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
ITEM#:ZDMS 0.8/20S-LZ II
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Standard &Requirements
|
Inspection results
|
|
|
|
1
|
Rated working pressure (MPa)
|
≤0.8
|
0.6
|
/
|
|
|
2
|
Rated flow (L / s)
|
20×(1±8%)
|
20.1
|
/
|
|
|
3
|
Maximum protection radius(m)
|
≥50
|
50
|
/
|
|
|
4
|
Jet radius (m)
|
≥55
|
55
|
/
|
|
|
5
|
Monitoring radius(m)
|
≥80
|
80
|
/
|
|
|
6
|
Positioning time(s)
|
≤60
|
59
|
60
|
|
|
7
|
Installation height (m)
|
8~15
|
8
|
15
|
|
|
8
|
Horizontal swing angle(°)
|
≥180
|
360
|
|
|
|
9
|
Minimum pitch profile(°)
|
-90~+30
|
-90~+30
|
|
|
|
10
|
working temperature
|
4~55℃ ≤95%RH
|
4~55℃ ≤95%RH
|
|
|
|
11
|
Guidance system
|
Φ 15.5 ± 0.5
|
Φ 15.5 ± 0.5
|
|
|

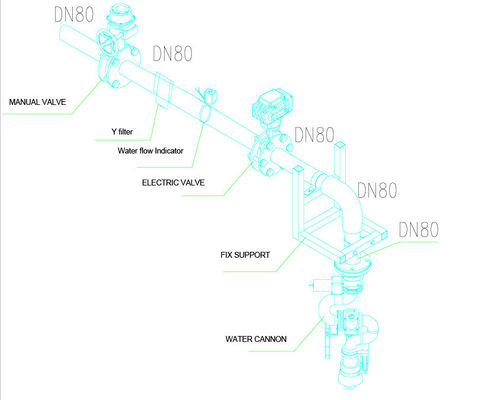

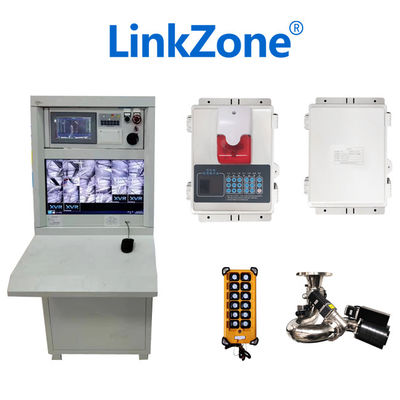

PRODUCT CONFIGURATION OF AUTOMATIC FIRE MONITOR
SALES AND SERVICE NETWORK
Successful Project
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of Automatic Fire Monitor.
Q2: What certificates do you have?
A2: We only have CCCF and ISO at present. FM certificate will be done later.
Q3: What are the advantages of your full automatic fire monitor?
A3: Our Automatic Fire Monitor has the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
