NET WEIGHT:8.1KG
MODEL: ZDMS0.6/10S-LZ II
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN
KEYWORD:Automatic Fire Monitor
All Products
-
Automatic Fire Monitor
-
Fire Fighting Monitor
-
Automatic Fire Water Monitor
-
Automatic Water Cannon
-
Automatic Fire Fighting Equipment
-
Automatic Fire Suppression Systems
-
Fire Fighting Water Cannon
-
Automatic Fire Protection Systems
-
Fire Water Cannon
-
Hydraulic Water Cannon
-
Automatic Fire Extinguishing System
-
Fire Extinguishing Device
Contact Person :
Alex Zhang
Phone Number :
+86 19836717667
Whatsapp :
+008619836717667
ZDMS Automatic Intelligent Fire Monitor And Easy Installation For Firefighting
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Automatic Fire Monitor | Rated Working Pressure | 0.6MPa |
|---|---|---|---|
| Rated Flow | 10L/s | Maximum Protection Radius(m) | 35m |
| Jet Radius (m) | 39m | Monitoring Radius(m) | 40m |
| Positioning Time(s) | ≤30s | Installation Height (m) | 6~15m |
| Horizontal Swing Angle | 360° | Minimum Pitch Profile(°) | -90°~+30° |
| High Light | ZDMS Automatic Intelligent Fire Monitor,0.6MPa Automatic Intelligent Fire Monitor,35m LinkZone Automatic Fire Monitor |
||
Product Description
Product Overview

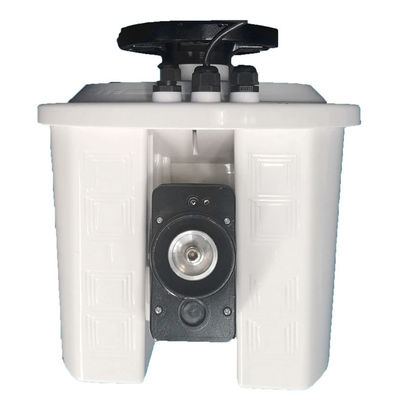

Automatic Fire Monitor
Our automatic fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
DIMENSION:350×480mm
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Standard &Requirements
|
Inspection results
|
|
|
|
1
|
Rated working pressure (MPa)
|
≤0.8
|
0.6
|
/
|
|
|
2
|
Rated flow (L / s)
|
5×(1±8%)
|
5.05
|
/
|
|
|
3
|
Maximum protection radius(m)
|
≥30
|
30
|
/
|
|
|
4
|
Jet radius (m)
|
≥34
|
34
|
/
|
|
|
5
|
Monitoring radius(m)
|
≥40
|
40
|
/
|
|
|
6
|
Positioning time(s)
|
≤30
|
29.5
|
29.9
|
|
|
7
|
Installation height (m)
|
6~15
|
6
|
15
|
|
|
8
|
Horizontal swing angle(°)
|
≥180
|
360
|
|
|
|
9
|
Minimum pitch profile(°)
|
-90~+30
|
-90~+30
|
|
|
|
10
|
Diameter of water-inlet(mm)
|
Φ 34.5 ± 0.5
|
Φ 34.5 ± 0.5
|
|
|
|
11
|
Diameter of water-outlet(mm)
|
Φ 15.5 ± 0.5
|
Φ 15.5 ± 0.5
|
|
|

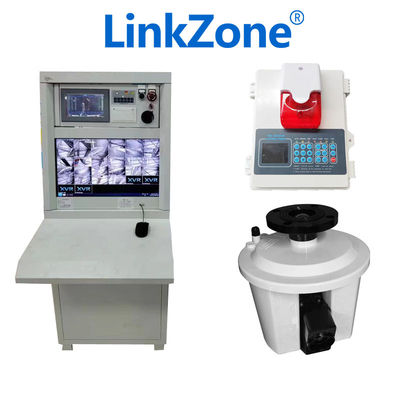

PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
Successful Project
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of automatic fire monitor and we have the most advanced technology.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. We will do the FM certificate later.
Q3: What are the advantages of your Automatic Fire Monitor?
A3: Our Automatic Fire Monitor integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarming. 3. Automatically Fire Extinguishing.
