NET WEIGHT:8.1KG
MODEL: ZDMS0.6/10S-LZ II
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN
KEYWORD:INTELLIGENT FIRE MONITOR
All Products
-
Automatic Fire Monitor
-
Fire Fighting Monitor
-
Automatic Fire Water Monitor
-
Automatic Water Cannon
-
Automatic Fire Fighting Equipment
-
Automatic Fire Suppression Systems
-
Fire Fighting Water Cannon
-
Automatic Fire Protection Systems
-
Fire Water Cannon
-
Hydraulic Water Cannon
-
Automatic Fire Extinguishing System
-
Fire Extinguishing Device
Contact Person :
Alex Zhang
Phone Number :
+86 19836717667
Whatsapp :
+008619836717667
Smart Automatic Fire Suppression Systems 10L/S Fire Protection Monitor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Working Pressure | 0.6MPa | Rated Flow | 10L/s |
|---|---|---|---|
| Maximum Protection Radius(m) | 35m | Jet Radius (m) | 39m |
| Monitoring Radius(m) | 40m | Positioning Time(s) | ≤30s |
| Installation Height (m) | 6~15m | Horizontal Swing Angle | 360° |
| Minimum Pitch Profile(°) | -90°~+30° | Port | Shanghai,Shenzhen,Qingdao,Tianjin,Dalian |
| High Light | Automatic Fire Suppression Systems 10L/S,10L/S Fire Protection Monitor,Smart Automatic Fire Suppression Systems |
||
Product Description
Factory direct sale Smart Fire Water Cannon for fire safety engineering
Product Overview
Top -ranking automatic fire water monitor

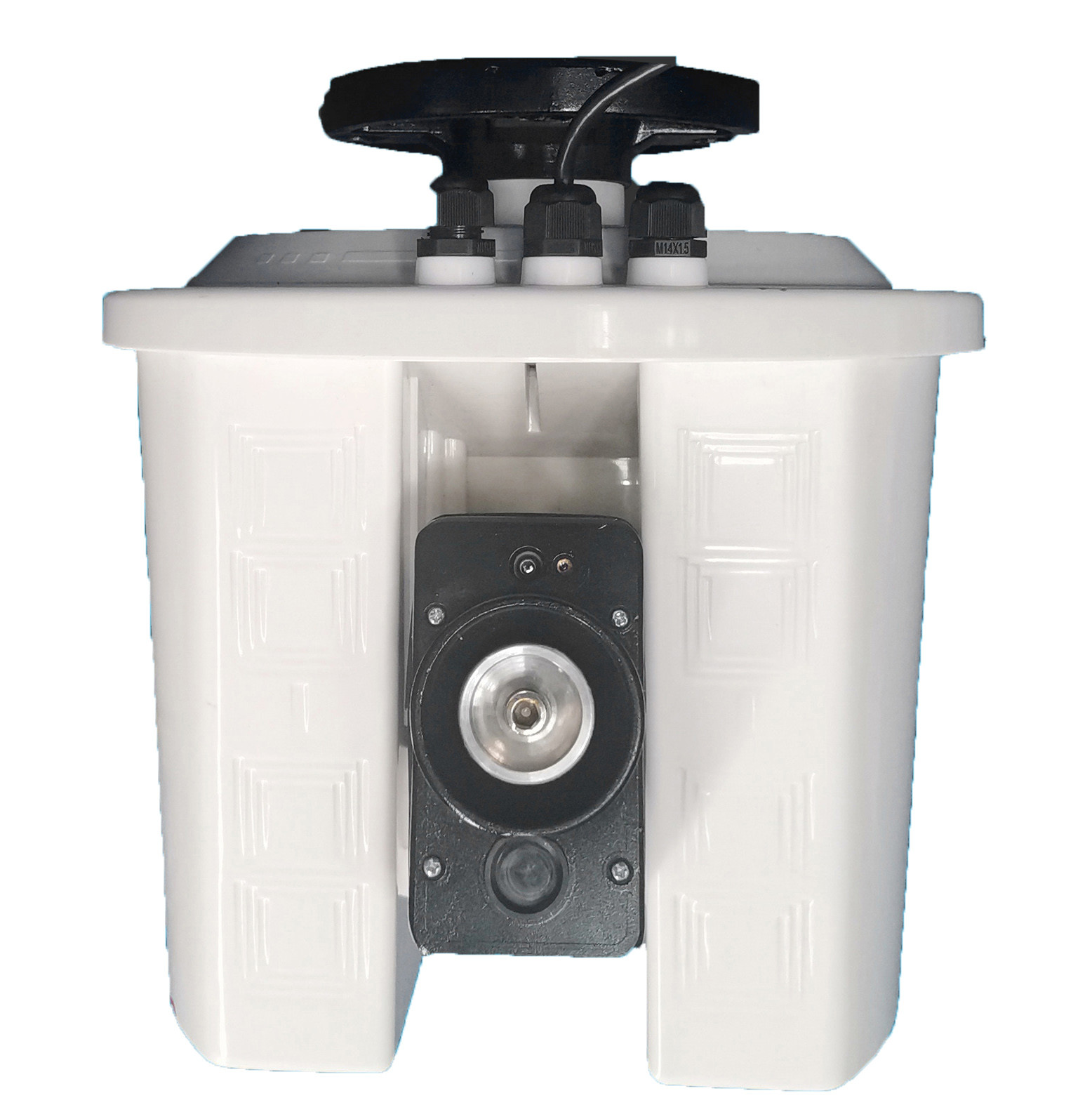

Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
DIMENSION:350×480mm
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Standard &Requirements
|
Inspection results
|
|
|
|
1
|
Rated working pressure (MPa)
|
≤0.8
|
0.6
|
/
|
|
|
2
|
Rated flow (L / s)
|
5×(1±8%)
|
5.05
|
/
|
|
|
3
|
Maximum protection radius(m)
|
≥30
|
30
|
/
|
|
|
4
|
Jet radius (m)
|
≥34
|
34
|
/
|
|
|
5
|
Monitoring radius(m)
|
≥40
|
40
|
/
|
|
|
6
|
Positioning time(s)
|
≤30
|
29.5
|
29.9
|
|
|
7
|
Installation height (m)
|
6~15
|
6
|
15
|
|
|
8
|
Horizontal swing angle(°)
|
≥180
|
360
|
|
|
|
9
|
Minimum pitch profile(°)
|
-90~+30
|
-90~+30
|
|
|
|
10
|
Diameter of water-inlet(mm)
|
Φ 34.5 ± 0.5
|
Φ 34.5 ± 0.5
|
|
|
|
11
|
Diameter of water-outlet(mm)
|
Φ 15.5 ± 0.5
|
Φ 15.5 ± 0.5
|
|
|

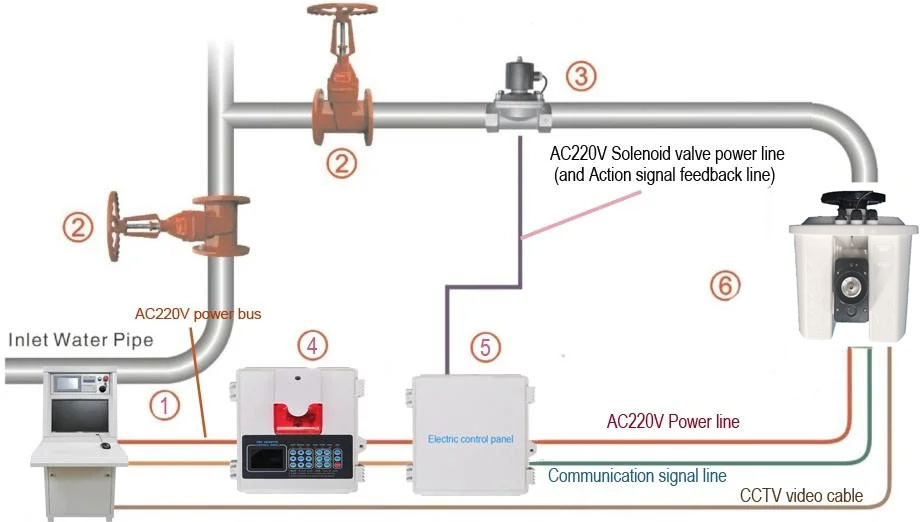

PRODUCT CONFIGURATION
Control host
Electric control box

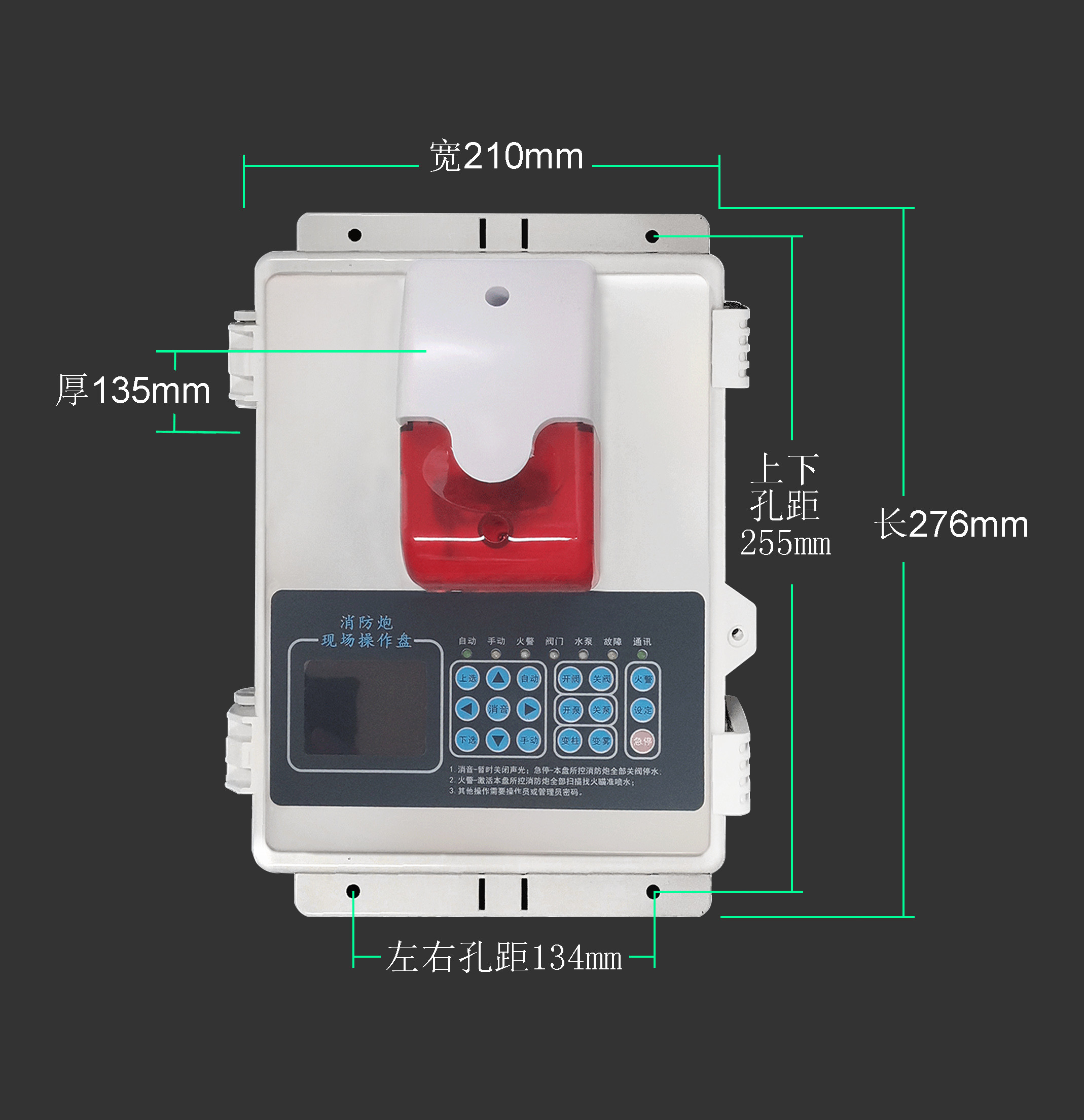

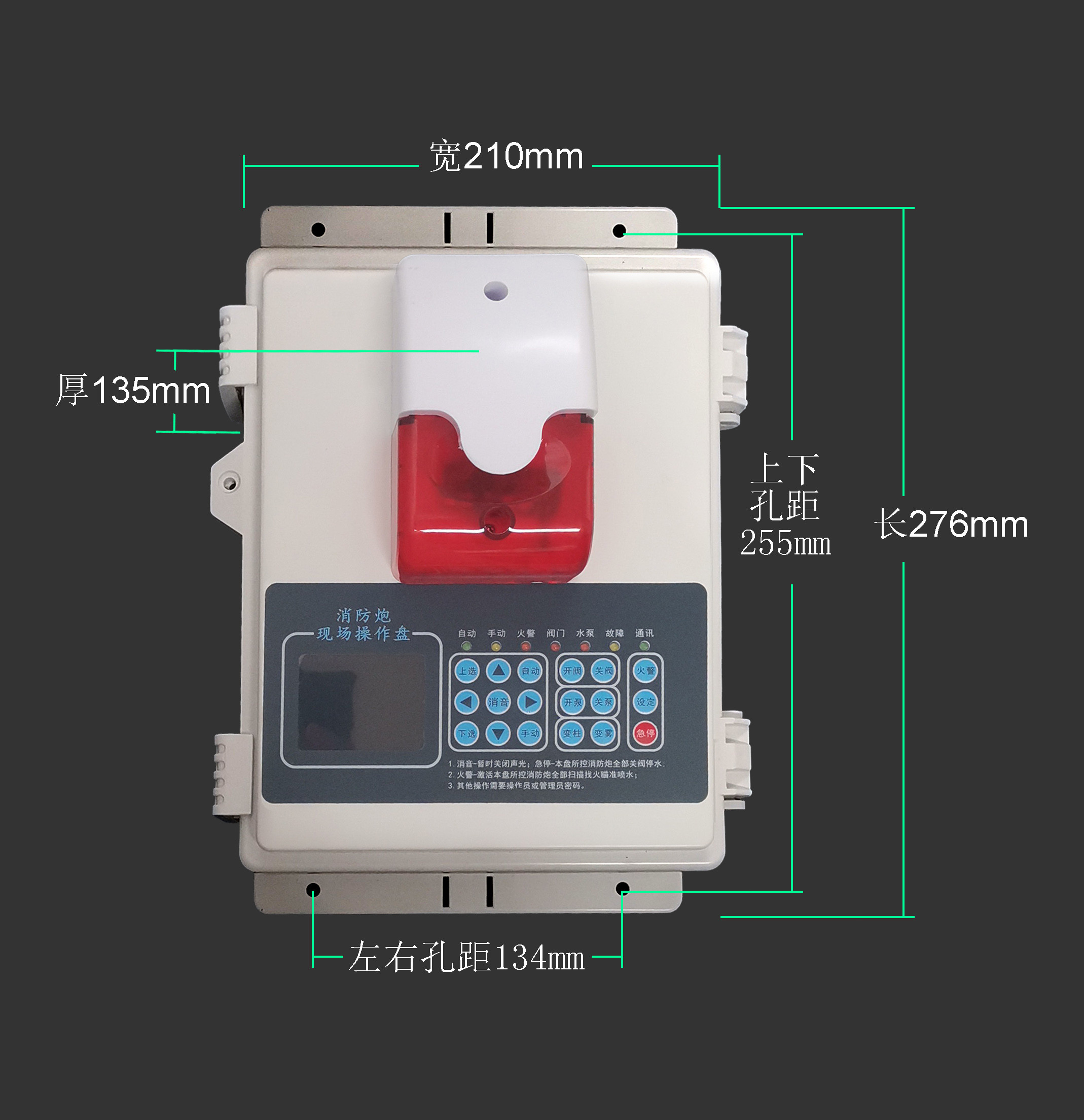

Field operation panel
SALES AND SERVICE NETWORK
Successful Project
Project in Malaysia
Project in Azerbaijan
Project in Singapore
WuHan International Airport
XIXIA gym
LIAONING SUIHUA WANDA PLAZA
ZHONGBAI LAIFENG shopping mall
CHUZHOU science and technology museum
CHONGQING XINLONG Industrial plant
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of intelligent fire-fighting equipment, like Full-auto Fire Monitor|Fire Water Cannon.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. FM or UL will be got within next year.
Q3: What are the advantages of your Intelligent Fire Monitor|Fire Water Cannon?
A3: Our Intelligent Fire Monitor|Fire Water Cannon integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
