DIMENSION:580×360mm
NET WEIGHT:25KG
MODEL: ZDMS0.8/20S-LZ II
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN bus
KEYWORD:INTELLIGENT FIRE WATER CANNON
All Products
-
Automatic Fire Monitor
-
Fire Fighting Monitor
-
Automatic Fire Water Monitor
-
Automatic Water Cannon
-
Automatic Fire Fighting Equipment
-
Automatic Fire Suppression Systems
-
Fire Fighting Water Cannon
-
Automatic Fire Protection Systems
-
Fire Water Cannon
-
Hydraulic Water Cannon
-
Automatic Fire Extinguishing System
-
Fire Extinguishing Device
Contact Person :
Alex Zhang
Phone Number :
+86 19836717667
Whatsapp :
+008619836717667
Easy Operate Automatic Fire Suppression Systems 0.8Mpa Fire Fighting Water Cannon
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Working Pressure (MPa) | 0.8 | Rated Flow (L / S) | 20 |
|---|---|---|---|
| Maximum Protection Radius(m) | 50 | Jet Radius (m) | 55 |
| Monitoring Radius(m) | 60 | Positioning Time(s) | ≤30 |
| Installation Height (m) | 8~15 | Horizontal Swing Angle(°) | ≥180 |
| Keyword | Fire Water Cannon | Port | Shanghai,Shenzhen,Qingdao,Tianjin,Dalian |
| High Light | CCCF Fire Fighting Water Cannon,Automatic Fire Suppression Systems 0.8Mpa,0.8Mpa Fire Fighting Water Cannon |
||
Product Description
Highly intelligent easy operate full automatic fire water monitor for fire extinguishing system
Our Advantages
1.We have got more than 30 patents for our water cannon.
2.We research&design ,produce ,sell and provide after-sale service all by ourself.
Product Overview

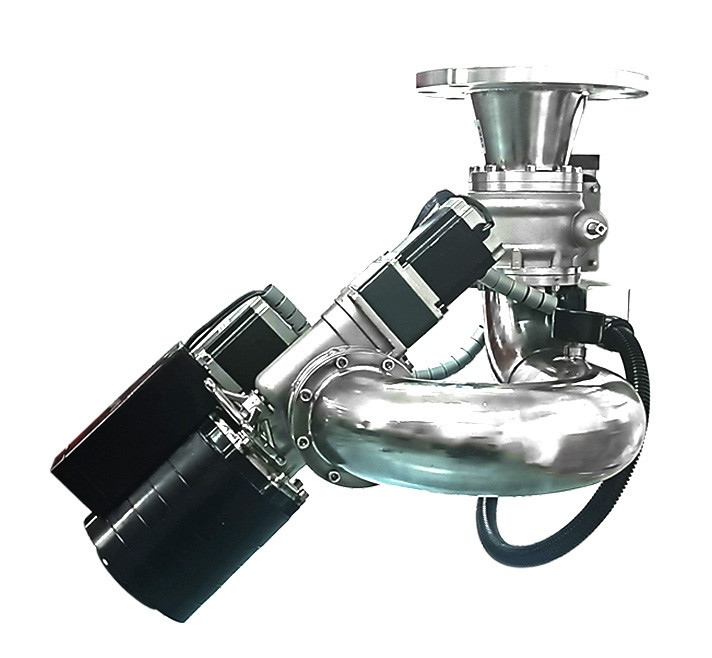

Top-ranking Intelligent Water cannon
Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
ITEM#:ZDMS 0.8/20S-LZ II
Front elevation

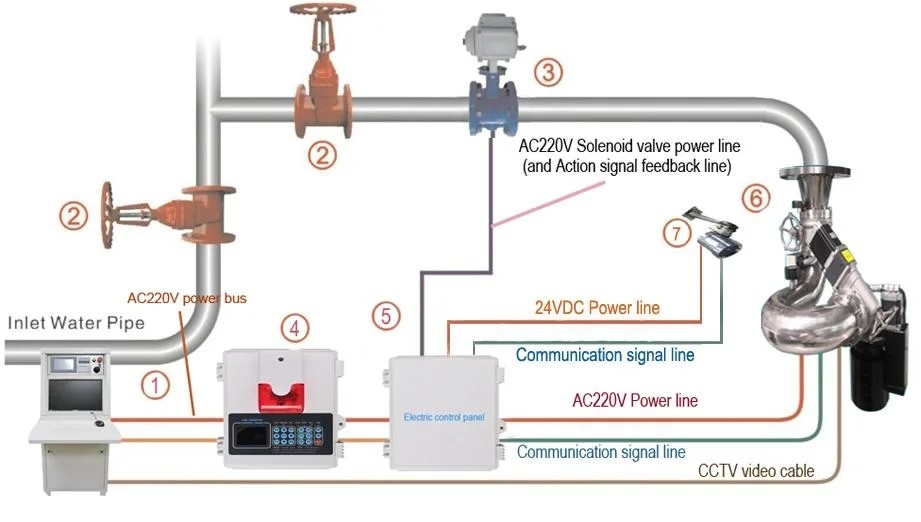

system chart
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Standard &Requirements
|
Inspection results
|
|
|
|
1
|
Rated working pressure (MPa)
|
≤0.8
|
0.6
|
/
|
|
|
2
|
Rated flow (L / s)
|
20×(1±8%)
|
20.1
|
/
|
|
|
3
|
Maximum protection radius(m)
|
≥50
|
50
|
/
|
|
|
4
|
Jet radius (m)
|
≥55
|
55
|
/
|
|
|
5
|
Monitoring radius(m)
|
≥80
|
80
|
/
|
|
|
6
|
Positioning time(s)
|
≤60
|
59
|
60
|
|
|
7
|
Installation height (m)
|
8~15
|
8
|
15
|
|
|
8
|
Horizontal swing angle(°)
|
≥180
|
360
|
|
|
|
9
|
Minimum pitch profile(°)
|
-90~+30
|
-90~+30
|
|
|
|
10
|
working temperature
|
4~55℃ ≤95%RH
|
4~55℃ ≤95%RH
|
|
|
|
11
|
Guidance system
|
Φ 15.5 ± 0.5
|
Φ 15.5 ± 0.5
|
|
|

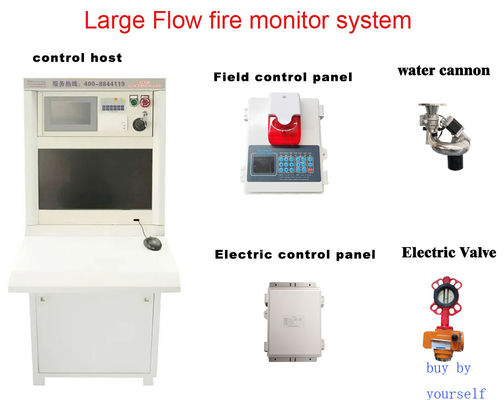

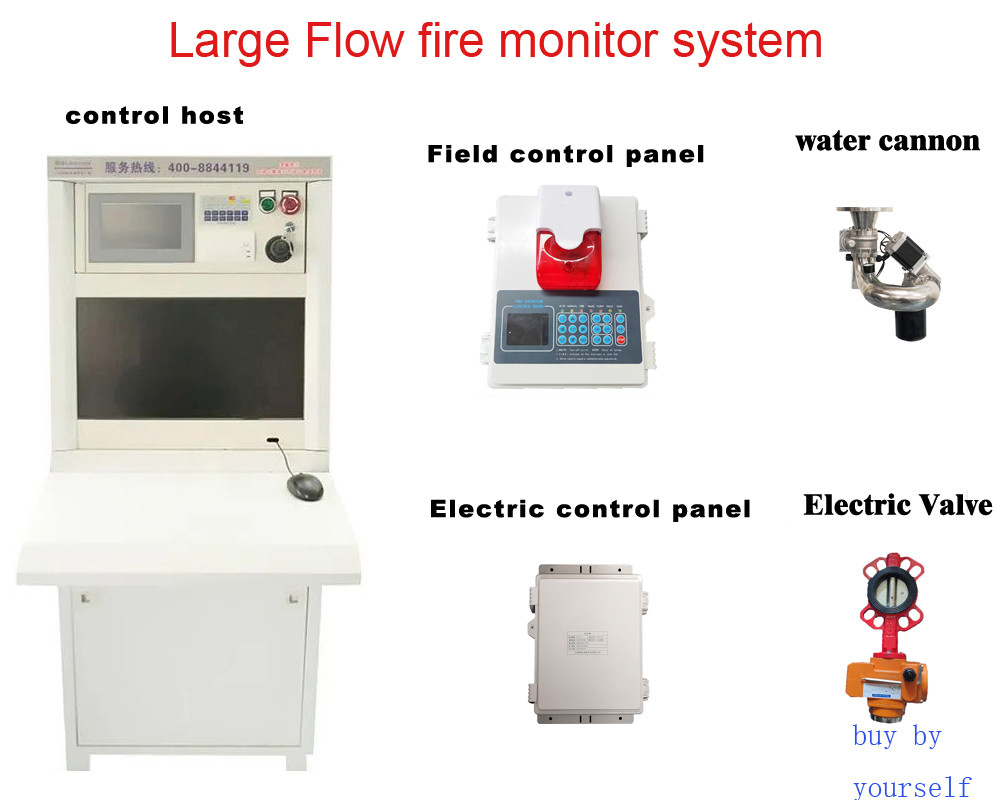

PRODUCT CONFIGURATION
Control host

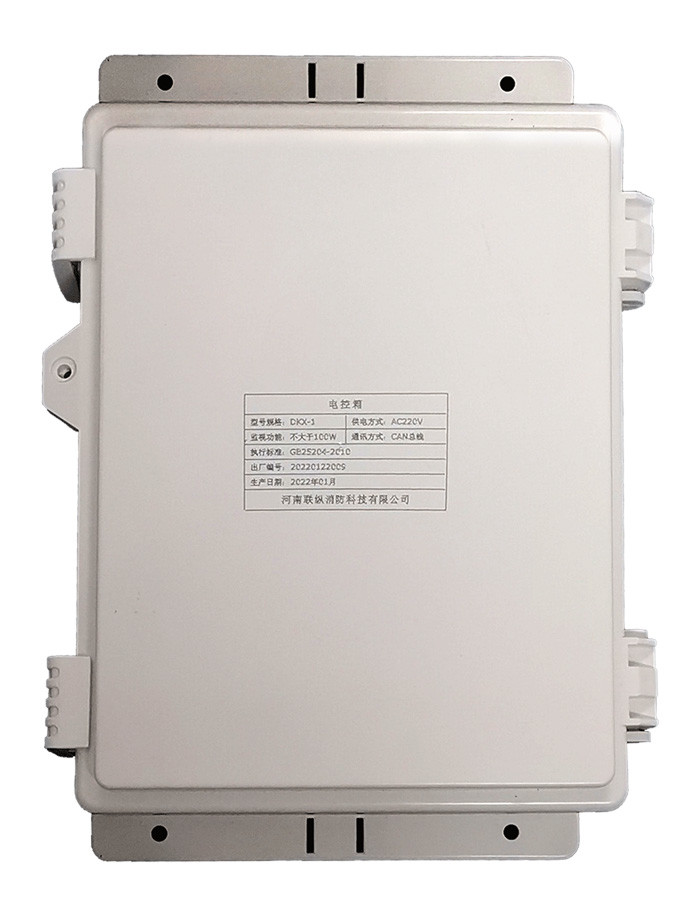

Electric control box

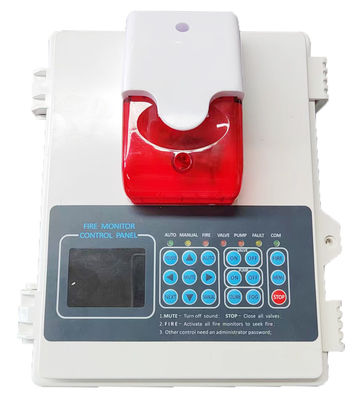

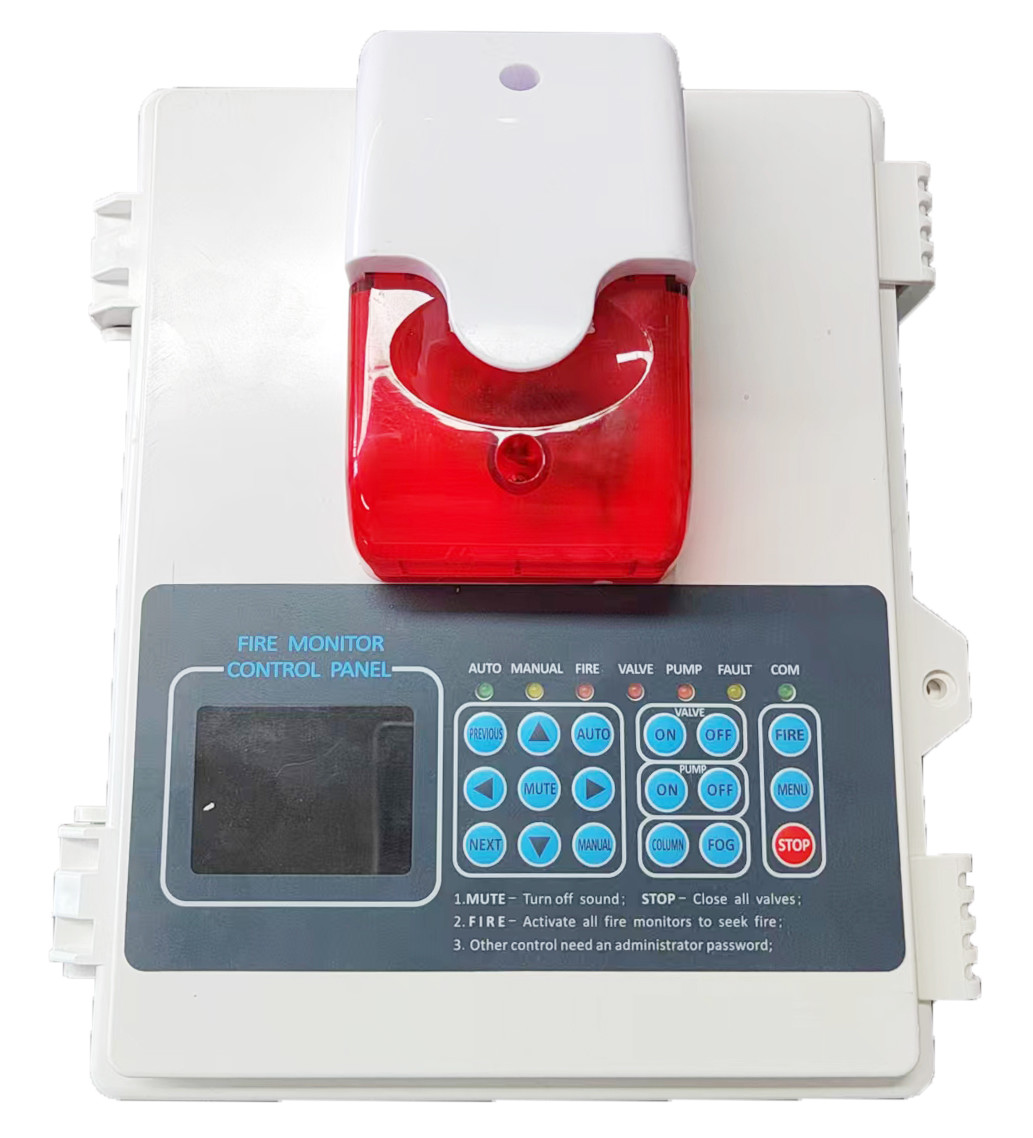

Field operation panel
SALES AND SERVICE NETWORK
Successful Project
Project in Malaysia
Project in Azerbaijan
Project in Singapore
WUHAN airport
XIXIA gym
CHUZHOU Science&Technology Museum
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of intelligent fire-fighting equipment, like Full-auto Fire Monitor|Intelligent Fire Water Cannon.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. FM or UL will be got within next year.
Q3: What are the advantages of your Intelligent Fire Monitor|Fire Water Cannon?
A3: Our Intelligent Fire Monitor|Fire Water Cannon integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
