Product Details
Rated Working Pressure (MPa) 0.9 Rated Flow (L / S) 30
Maximum Protection Radius(m) 55 Jet Radius (m) 62
Monitoring Radius(m) 60 Positioning Time(s) ≤60
Installation Height (m) 8~15 Horizontal Swing Angle(°) 360
Keyword Automatic Water Cannon Port Shanghai,Shenzhen,Qingdao,Tianjin,Dalian
High Light

CCCF Fire Water Cannon Automatic Tracking

,

CCCF Fire Alarm Suppression System

,

Fire Alarm Suppression Fire Water Cannon
Leave a Message
Product Description

Linkzone fire water cannon automatic tracking and targeting jet suppression system

Product Overview



INTELLIGENT FIRE MONITOR AUTOMATIC FIRE SPRINKLER SYSTEM
Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
ITEM#:ZDMS 0.9/30S-LZ II
DIMENSION:580×360mm
NET WEIGHT:10KG
SENSOR:IR SENSOR
VOLTAGE:110V~240V
COMMUNICATION METHOD:CAN bus
KEYWORD:INTELLIGENT FIRE WATER CANNON
Linkzone CCCF Fire Water Cannon Automatic Tracking Targeting Fire Alarm Suppression System 0
Linkzone CCCF Fire Water Cannon Automatic Tracking Targeting Fire Alarm Suppression System 1

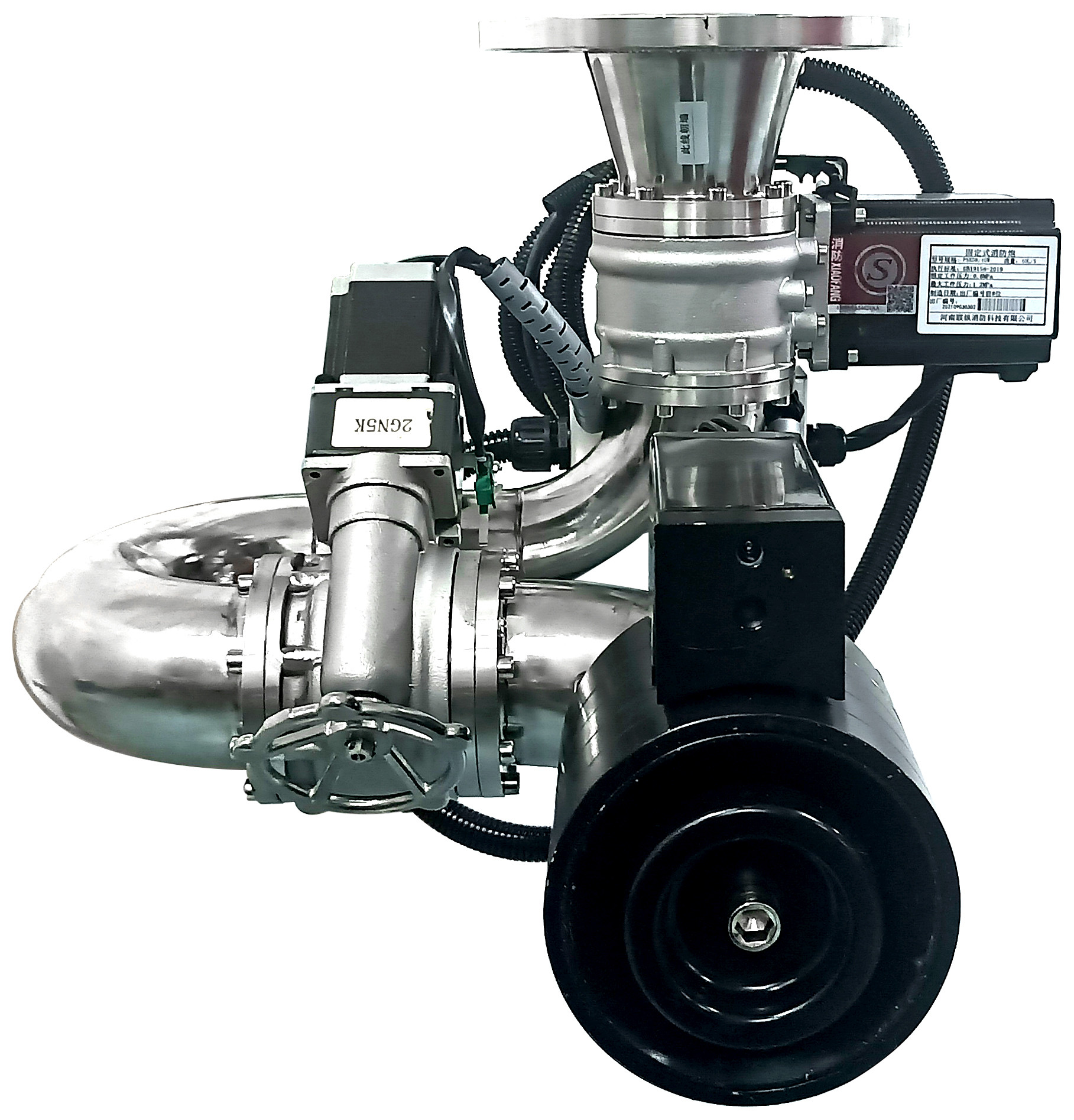

Front elevation
Linkzone CCCF Fire Water Cannon Automatic Tracking Targeting Fire Alarm Suppression System 2
Left elevation
Linkzone CCCF Fire Water Cannon Automatic Tracking Targeting Fire Alarm Suppression System 3
Front elevation
PRODUCT SPECIFICATIONS
No
Item
Standard &Requirements
1
Rated working pressure (MPa)
≤0.9
2
Rated flow (L / s)
30×(1±8%)
3
Maximum protection radius(m)
55
4
Jet radius (m)
62
5
Monitoring radius(m)
60
6
Positioning time(s)
≤60
7
Installation height (m)
8~15
8
Horizontal swing angle(°)
360
9
Minimum pitch profile(°)
-90~+30
10
working temperature
4~55℃ ≤95%RH

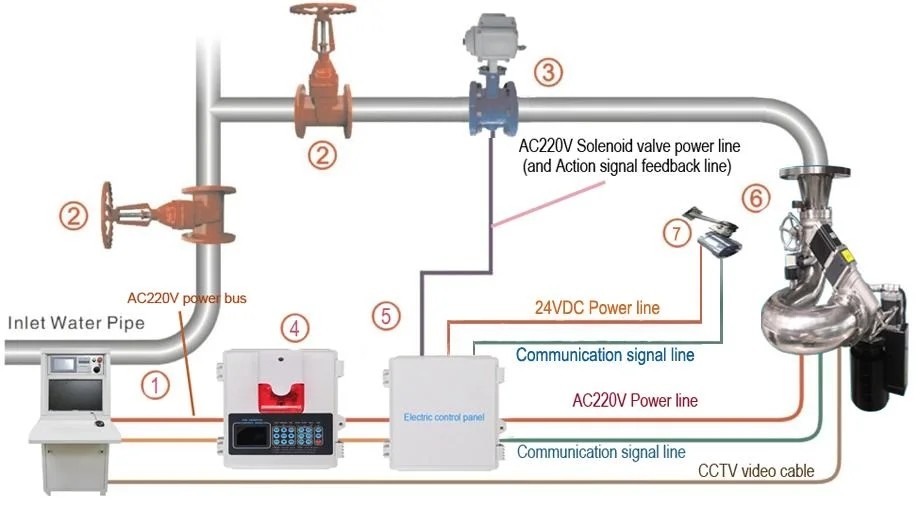

PRODUCT CONFIGURATION
Linkzone CCCF Fire Water Cannon Automatic Tracking Targeting Fire Alarm Suppression System 4

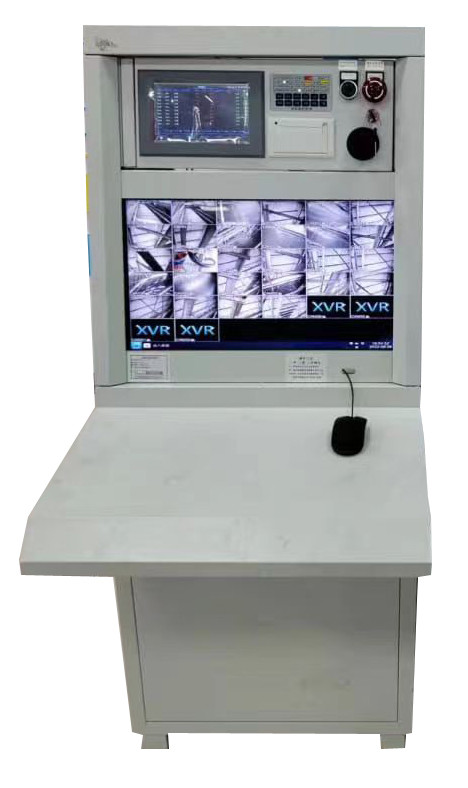

Control host
Linkzone CCCF Fire Water Cannon Automatic Tracking Targeting Fire Alarm Suppression System 5
Electric control box
Linkzone CCCF Fire Water Cannon Automatic Tracking Targeting Fire Alarm Suppression System 6
Field operation panel
Linkzone CCCF Fire Water Cannon Automatic Tracking Targeting Fire Alarm Suppression System 7
SALES AND SERVICE NETWORK
Linkzone CCCF Fire Water Cannon Automatic Tracking Targeting Fire Alarm Suppression System 8

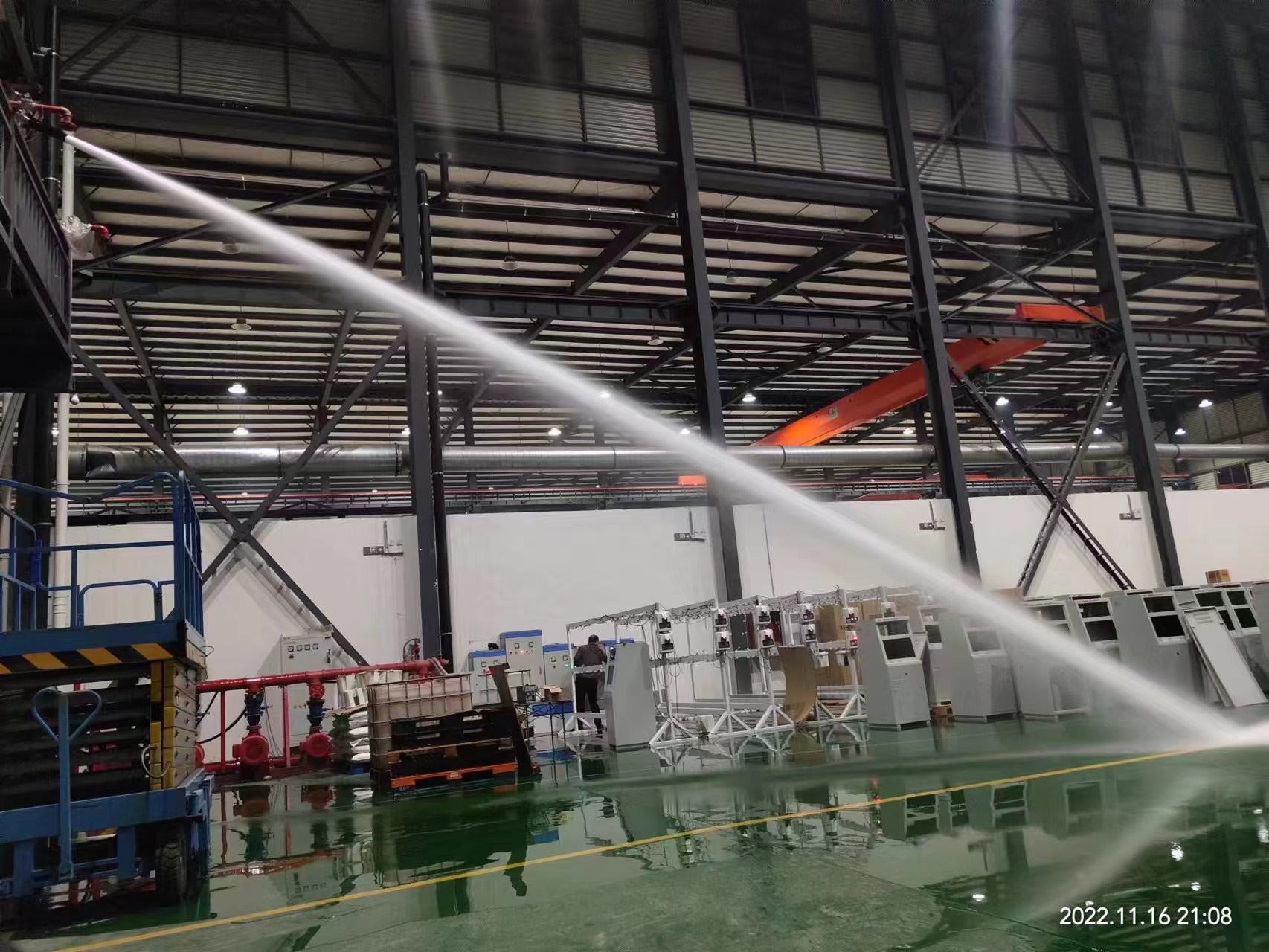

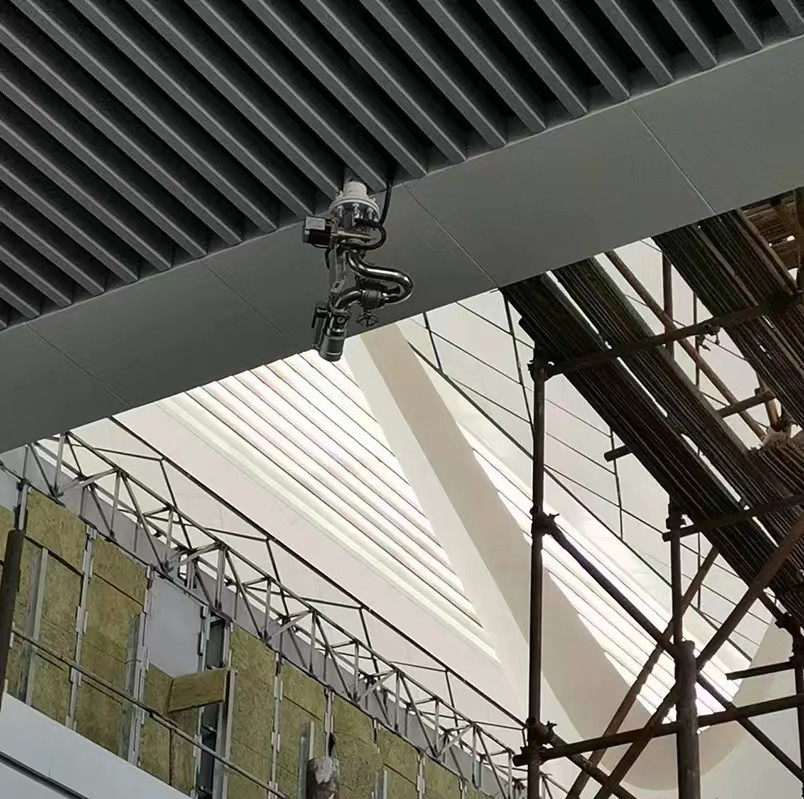

Successful Project
Linkzone CCCF Fire Water Cannon Automatic Tracking Targeting Fire Alarm Suppression System 9
Project in Malaysia
Linkzone CCCF Fire Water Cannon Automatic Tracking Targeting Fire Alarm Suppression System 10
Project in Azerbaijan
Linkzone CCCF Fire Water Cannon Automatic Tracking Targeting Fire Alarm Suppression System 11
Project in Singapore
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of intelligent fire-fighting equipment, like Full-auto Fire Monitor|Intelligent Fire Water Cannon.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. FM or UL will be got within next year.
Q3: What are the advantages of your Intelligent Fire Monitor|Fire Water Cannon?
A3: Our Intelligent Fire Monitor|Fire Water Cannon integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
