Firefighting Robot Automatic Fire Monitor For Fire Safety 35m
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Automatic Fire Monitor | Rated Working Pressure | 0.6MPa |
|---|---|---|---|
| Rated Flow | 10L/s | Maximum Protection Radius(m) | 35m |
| Jet Radius (m) | 39m | Monitoring Radius(m) | 40m |
| Positioning Time(s) | ≤30s | Installation Height (m) | 6~15m |
| Horizontal Swing Angle | 360° | Minimum Pitch Profile(°) | -90°~+30° |
| High Light | Firefighting Robot Automatic Fire Monitor,ZDMS Automatic Robot Fire Monitor,Automatic Robot Fire Monitor 35m |
||
Product Description
Product Overview

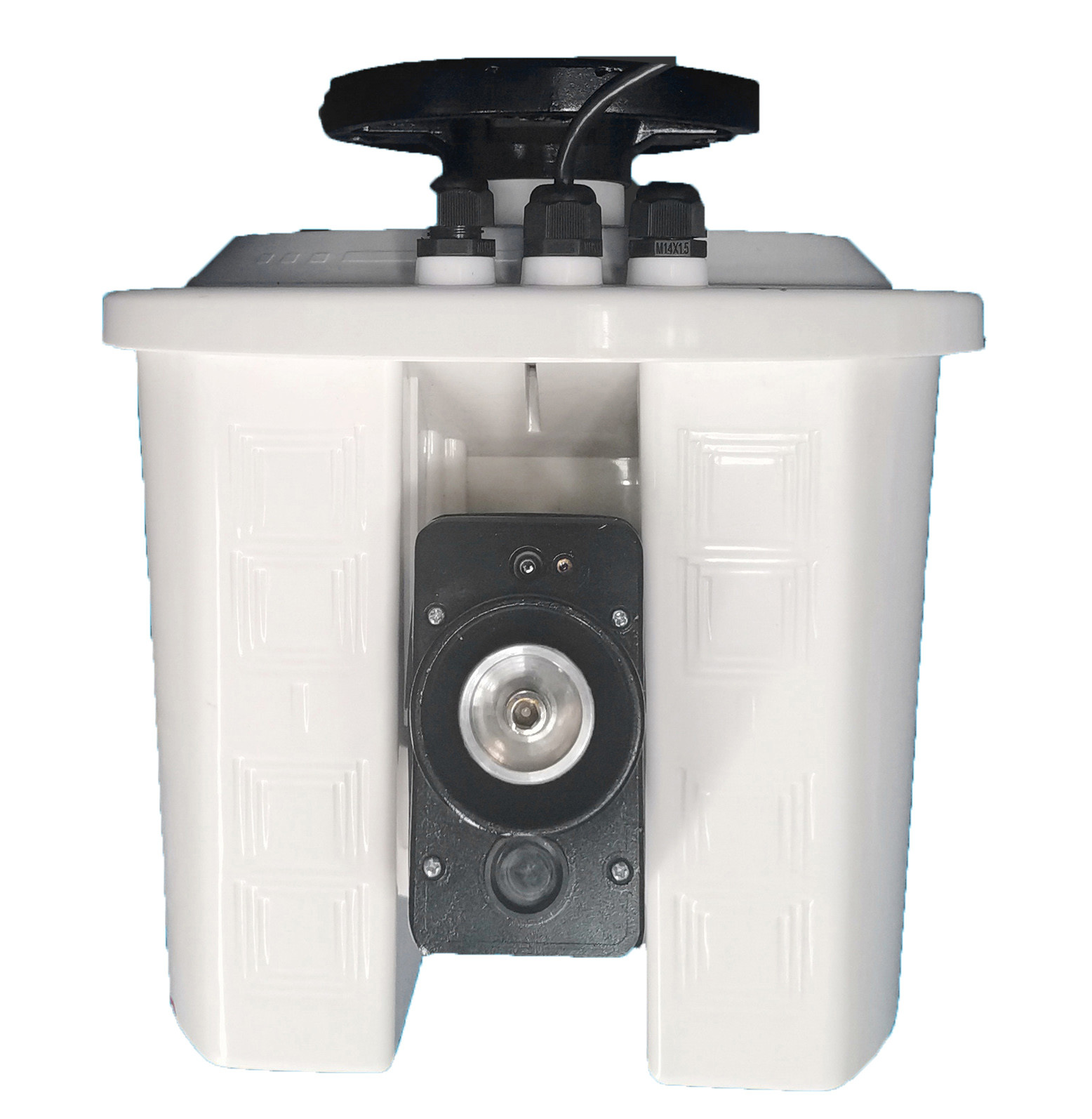

Automatic Fire Monitor
Our Automatic Fire Monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
DIMENSION:350×480mm
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Standard &Requirements
|
Inspection results
|
|
|
|
1
|
Rated working pressure (MPa)
|
≤0.8
|
0.6
|
/
|
|
|
2
|
Rated flow (L / s)
|
5×(1±8%)
|
5.05
|
/
|
|
|
3
|
Maximum protection radius(m)
|
≥30
|
30
|
/
|
|
|
4
|
Jet radius (m)
|
≥34
|
34
|
/
|
|
|
5
|
Monitoring radius(m)
|
≥40
|
40
|
/
|
|
|
6
|
Positioning time(s)
|
≤30
|
29.5
|
29.9
|
|
|
7
|
Installation height (m)
|
6~15
|
6
|
15
|
|
|
8
|
Horizontal swing angle(°)
|
≥180
|
360
|
|
|
|
9
|
Minimum pitch profile(°)
|
-90~+30
|
-90~+30
|
|
|
|
10
|
Diameter of water-inlet(mm)
|
Φ 34.5 ± 0.5
|
Φ 34.5 ± 0.5
|
|
|
|
11
|
Diameter of water-outlet(mm)
|
Φ 15.5 ± 0.5
|
Φ 15.5 ± 0.5
|
|
|

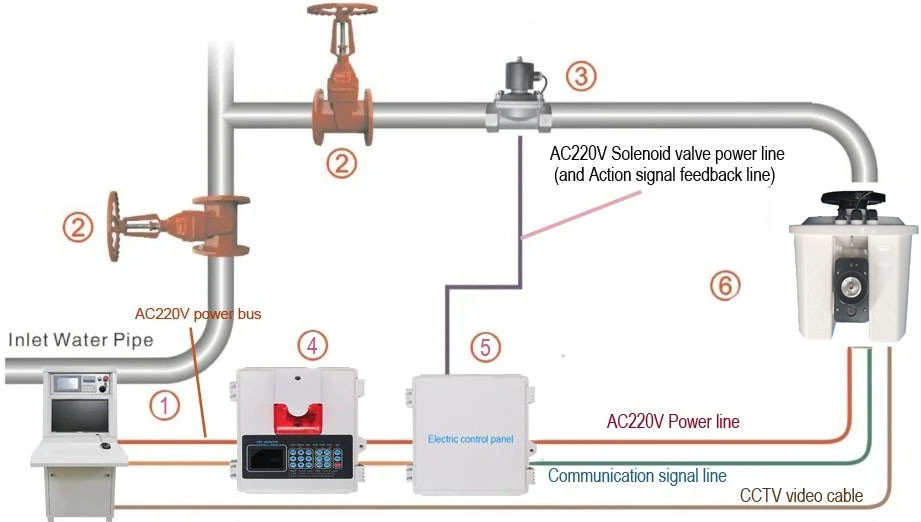

PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK

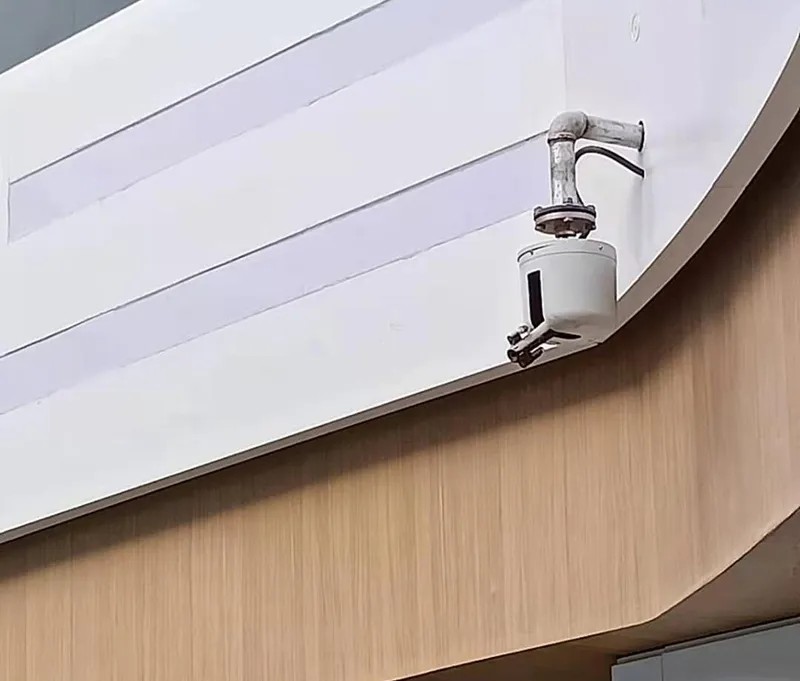

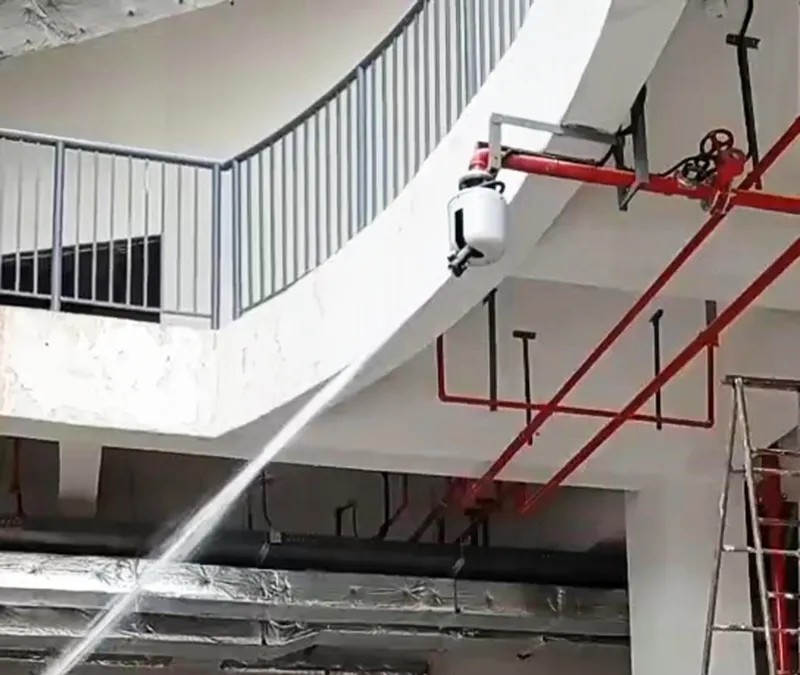

Successful Project
Project in Malaysia
Project in Azerbaijan
Project in Singapore
WuHan International Airport
XIXIA gym
LIAONING SUIHUA WANDA PLAZA
ZHONGBAI LAIFENG shopping mall
CHUZHOU science and technology museum
CHONGQING XINLONG Industrial plant
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of Automatic Fire Monitor, like Full-auto Fire Monitor|Fire Water Cannon.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. FM or UL will be got within next year.
Q3: What are the advantages of your Automatic Fire Monitor?
A3: Our Automatic Fire Monitor integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
