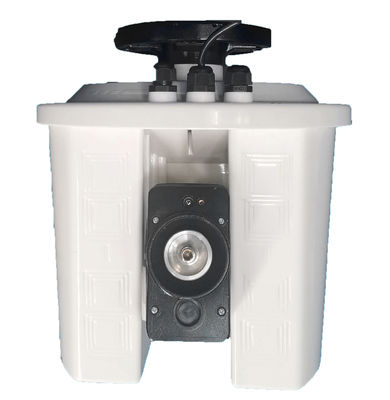

Reliable And Quick Response Automatic Fire Monitor 0.6MPa 10L/S For Fire Suppression
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Automatic Fire Monitor | Rated Working Pressure | 0.6MPa |
|---|---|---|---|
| Rated Flow | 10L/s | Maximum Protection Radius(m) | 35m |
| Jet Radius (m) | 39m | Monitoring Radius(m) | 40m |
| Positioning Time(s) | ≤30s | Installation Height (m) | 6~25m |
| High Light | LinkZone Automatic Monitor For Fire Suppression,10S-LZ II Automatic Fire Monitor,0.6MPa Automatic Monitor For Fire Suppression |
||
Product Description
Product Description
The automatic fire monitor is widely used in large-space places whose heights are between 6-25m. It applies the micro processor to control the fire monitor.It can probe fire the first time with detection technology of infrared sensing, ultraviolet
sensing and plasma sensing and put out fire in the bud. This product has high efficient
that it can start and stop automatically and repeatedly with quick response.

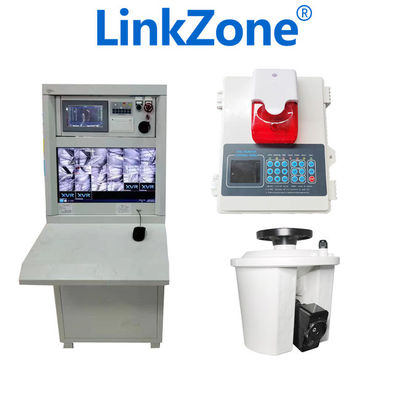

The homing fire extinguishing device has main units of fire extinguishing unit, solenoid
valve, service valve, manual alarm button, aud ibleand visual alarm, manual
controller, zone control box, end water-test-equipment and pipeline. The installing
contains pipeline installing and electrical installing.
This is a new auto-scan and positioning fire extinguishing device, which combines
function of fire probing and extinguishing. It can probe fire, send alarm signals and adjust
direction to aim at fire to put out it automatically. When a fire happens, it adjusts its nozzle
direction and aim at fire after logic analysis of microprocessor. It is of features of timely
probing, accurate positioning, concentrate flow jet, auto starting and stopping and big
working range.
sensing and plasma sensing and put out fire in the bud. This product has high efficient
that it can start and stop automatically and repeatedly with quick response.
The homing fire extinguishing device has main units of fire extinguishing unit, solenoid
valve, service valve, manual alarm button, aud ibleand visual alarm, manual
controller, zone control box, end water-test-equipment and pipeline. The installing
contains pipeline installing and electrical installing.
This is a new auto-scan and positioning fire extinguishing device, which combines
function of fire probing and extinguishing. It can probe fire, send alarm signals and adjust
direction to aim at fire to put out it automatically. When a fire happens, it adjusts its nozzle
direction and aim at fire after logic analysis of microprocessor. It is of features of timely
probing, accurate positioning, concentrate flow jet, auto starting and stopping and big
working range.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Standard &Requirements
|
Inspection results
|
|
|
|
1
|
Rated working pressure (MPa)
|
≤0.8
|
0.6
|
/
|
|
|
2
|
Rated flow (L / s)
|
5×(1±8%)
|
5.05
|
/
|
|
|
3
|
Maximum protection radius(m)
|
≥30
|
30
|
/
|
|
|
4
|
Jet radius (m)
|
≥34
|
34
|
/
|
|
|
5
|
Monitoring radius(m)
|
≥40
|
40
|
/
|
|
|
6
|
Positioning time(s)
|
≤30
|
29.5
|
29.9
|
|
|
7
|
Installation height (m)
|
6~15
|
6
|
15
|
|
|
8
|
Horizontal swing angle(°)
|
≥180
|
360
|
|
|
|
9
|
Minimum pitch profile(°)
|
-90~+30
|
-90~+30
|
|
|
|
10
|
Diameter of water-inlet(mm)
|
Φ 34.5 ± 0.5
|
Φ 34.5 ± 0.5
|
|
|
|
11
|
Diameter of water-outlet(mm)
|
Φ 15.5 ± 0.5
|
Φ 15.5 ± 0.5
|
|
|

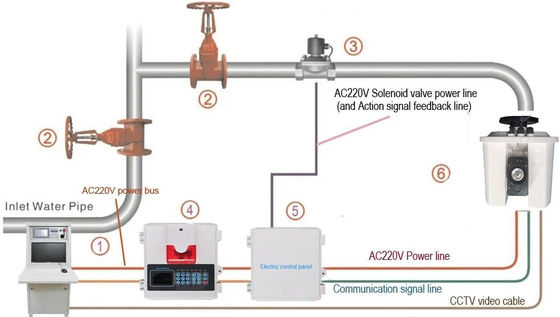

CONFIGURATION OF AUTOMATIC FIRE MONITOR SYSTEM
SALES AND SERVICE NETWORK
Successful Project
WuHan International Airport
XIXIA gym
LIAONING SUIHUA WANDA PLAZA
ZHONGBAI LAIFENG shopping mall
CHUZHOU science and technology museum
CHONGQING XINLONG Industrial plant
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of automatic fire monitor, like Full-auto Fire Monitor|Fire Water Cannon.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. We will do FM later.
Q3: What are the advantages of your Intelligent Fire Monitor|Fire Water Cannon?
A3: Our automatic fire monitor integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
