ZDMS 0.8/40S Automatic Water Cannon Auto Scanning Fire Extinguishing System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Working Pressure (MPa) | 0.8 | Rated Flow (L / S) | 40 |
|---|---|---|---|
| Maximum Protection Radius(m) | 60 | Jet Radius (m) | 67 |
| Monitoring Radius(m) | 80 | Positioning Time(s) | ≤60 |
| Installation Height (m) | 8~35 | Horizontal Swing Angle(°) | 360 |
| Keyword | Fire Water Cannon | Port | Shanghai,Shenzhen,Qingdao,Tianjin,Dalian |
| High Light | ZDMS0.8 Automatic Water Cannon,Auto Scanning Fire Extinguishing System,ZDMS0.8 Fire Extinguishing System |
||
Product Description

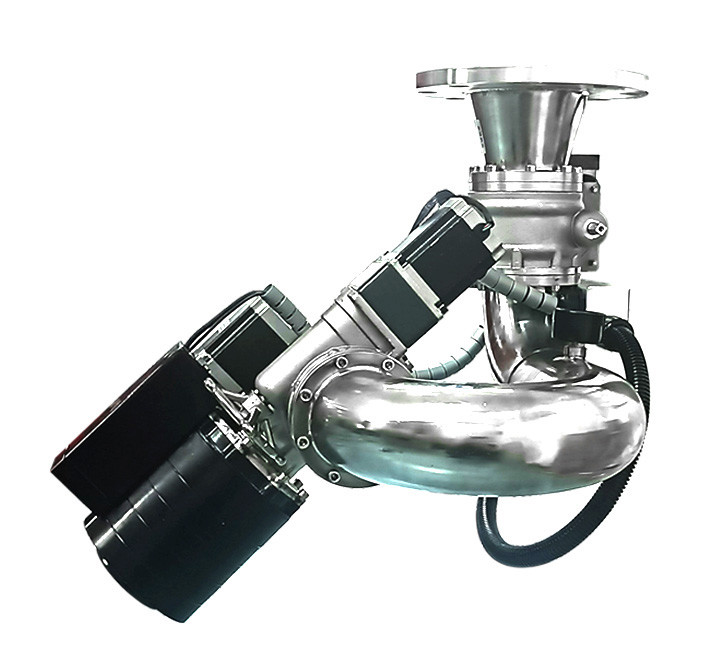

ZDMS 0.8/40S auto fire scanning and fire extinguishing water monitor
Product Overview
INTELLIGENT FIRE MONITOR AUTOMATIC FIRE SPRINKLER SYSTEM
Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
ITEM#:ZDMS 0.8/40S-LZ II
Front elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Standard &Requirements
|
Inspection results
|
|
|
|
1
|
Rated working pressure (MPa)
|
≤1.0
|
0.8
|
/
|
|
|
2
|
Rated flow (L / s)
|
40×(1±8%)
|
41.5
|
/
|
|
|
3
|
Maximum protection radius(m)
|
≥60
|
60
|
/
|
|
|
4
|
Jet radius (m)
|
≥67
|
67
|
/
|
|
|
5
|
Monitoring radius(m)
|
≥80
|
80
|
/
|
|
|
6
|
Positioning time(s)
|
≤60
|
48
|
49.5
|
|
|
7
|
Installation height (m)
|
8~35
|
8
|
35
|
|
|
8
|
Horizontal swing angle(°)
|
≥180
|
360
|
|
|
|
9
|
Minimum pitch profile(°)
|
-90~+30
|
-90~+30
|
|
|
|
10
|
working temperature
|
4~55℃ ≤95%RH
|
4~55℃ ≤95%RH
|
|
|
|
11
|
Guidance system
|
Φ 15.5 ± 0.5
|
Φ 15.5 ± 0.5
|
|
|

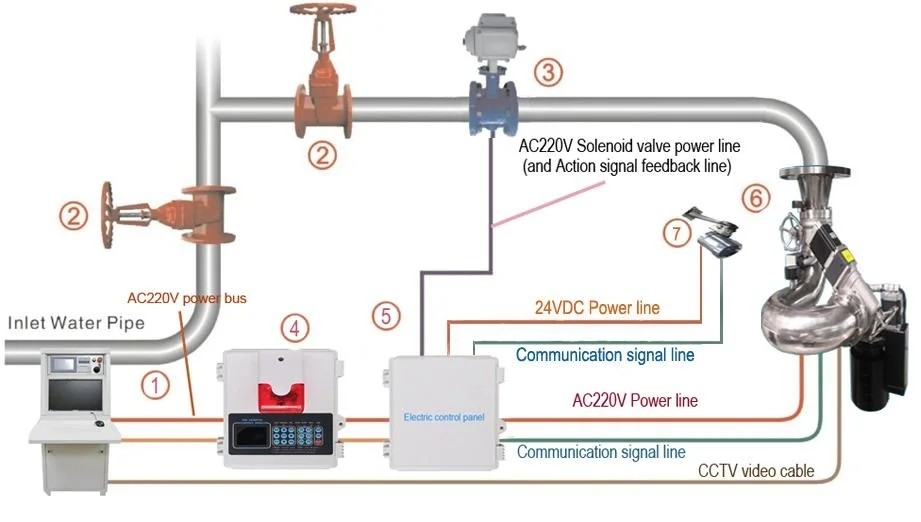

PRODUCT CONFIGURATION

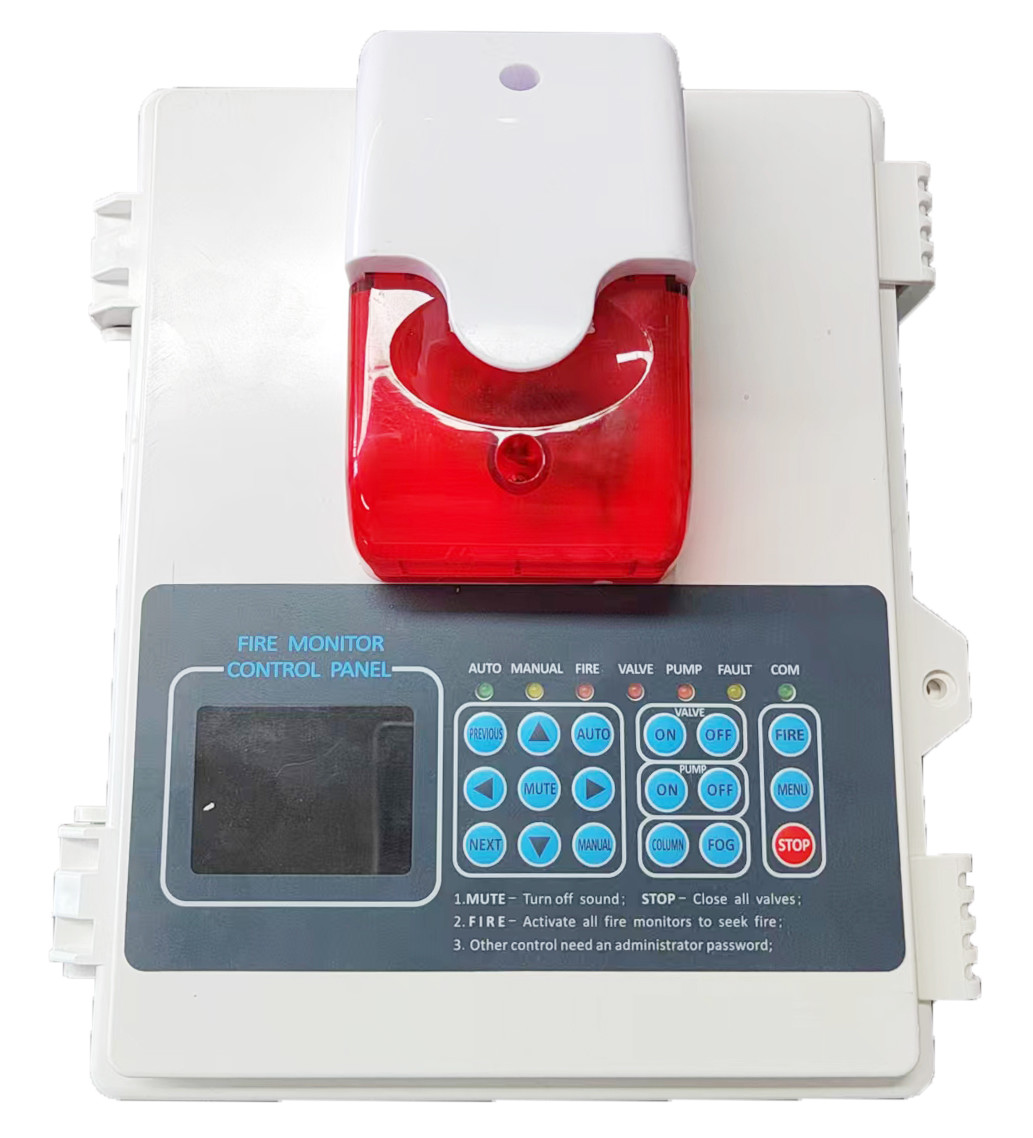

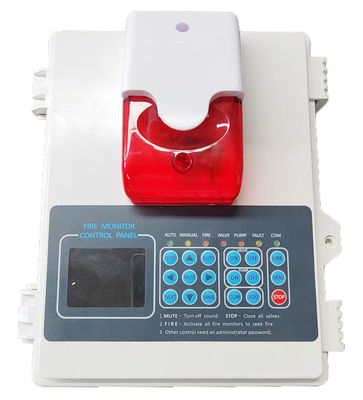

Control host
Electric control box
Field operation panel
SALES AND SERVICE NETWORK
Successful Project
Project in Malaysia
Project in Azerbaijan
Project in Singapore
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of intelligent fire-fighting equipment, like Full-auto Fire Monitor|Intelligent Fire Water Cannon.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. FM or UL will be got within next year.
Q3: What are the advantages of your Intelligent Fire Monitor|Fire Water Cannon?
A3: Our Intelligent Fire Monitor|Fire Water Cannon integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
