DIMENSION:550×460mm
NET WEIGHT:28KG
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN bus
KEYWORD:INTELLIGENT FIRE WATER CANNON
All Products
-
Automatic Fire Monitor
-
Fire Fighting Monitor
-
Automatic Fire Water Monitor
-
Automatic Water Cannon
-
Automatic Fire Fighting Equipment
-
Automatic Fire Suppression Systems
-
Fire Fighting Water Cannon
-
Automatic Fire Protection Systems
-
Fire Water Cannon
-
Hydraulic Water Cannon
-
Automatic Fire Extinguishing System
-
Fire Extinguishing Device
Contact Person :
Alex Zhang
Phone Number :
+86 19836717667
Whatsapp :
+008619836717667
Early Stage Fire Alarm Automatic Fire Water Cannon 30L/S Fire Protection Monitor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Working Pressure (MPa) | 0.9 | Rated Flow (L / S) | 30 |
|---|---|---|---|
| Maximum Protection Radius(m) | 55 | Jet Radius (m) | 62 |
| Monitoring Radius(m) | 60 | Positioning Time(s) | ≤60 |
| Installation Height (m) | 8~15 | Horizontal Swing Angle(°) | 360 |
| Vertical Rotate Angle | -90~+30 | Working Temperature | 4~55℃ |
| Port | Shanghai,Shenzhen,Qingdao,Tianjin,Dalian | ||
| High Light | Automatic Fire Water Cannon 30L/S,Water Cannon 30L/S Fire Protection Monitor,Early Stage Automatic Fire Protection Monitor |
||
Product Description

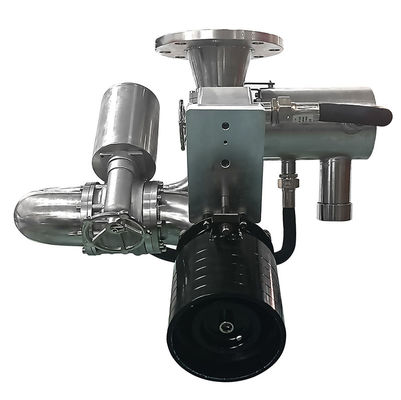

Early stage fire alarm and fire protection system automatic fire water cannon
Product Overview
INTELLIGENT FIRE MONITOR AUTOMATIC FIRE SPRINKLER SYSTEM

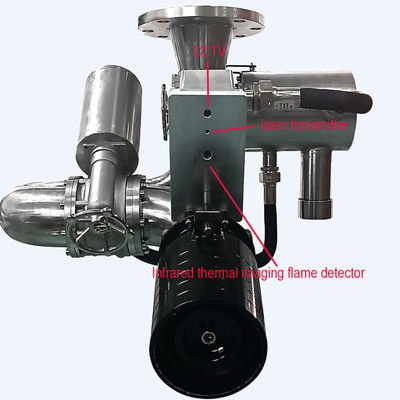

Our intelligent fire monitor use infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
ITEM#:ZDMS 0.9/30S-LZ II-Ex
Front elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Standard &Requirements
|
Inspection results
|
|
|
|
1
|
Rated working pressure (MPa)
|
≤0.8
|
0.6
|
/
|
|
|
2
|
Rated flow (L / s)
|
20×(1±8%)
|
20.1
|
/
|
|
|
3
|
Maximum protection radius(m)
|
≥50
|
50
|
/
|
|
|
4
|
Jet radius (m)
|
≥55
|
55
|
/
|
|
|
5
|
Monitoring radius(m)
|
≥80
|
80
|
/
|
|
|
6
|
Positioning time(s)
|
≤60
|
59
|
60
|
|
|
7
|
Installation height (m)
|
8~15
|
8
|
15
|
|
|
8
|
Horizontal swing angle(°)
|
≥180
|
360
|
|
|
|
9
|
Minimum pitch profile(°)
|
-90~+30
|
-90~+30
|
|
|
|
10
|
working temperature
|
4~55℃ ≤95%RH
|
4~55℃ ≤95%RH
|
|
|
|
11
|
Guidance system
|
Φ 15.5 ± 0.5
|
Φ 15.5 ± 0.5
|
|
|

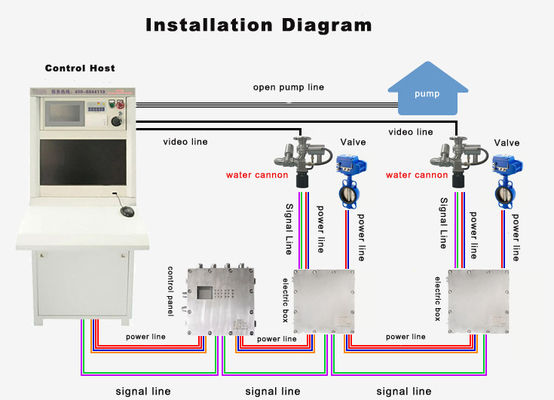

PRODUCT CONFIGURATION

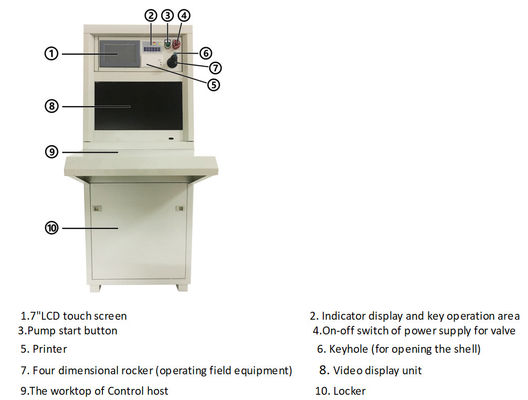

Control host
Electric control box
Field operation panel
SALES AND SERVICE NETWORK

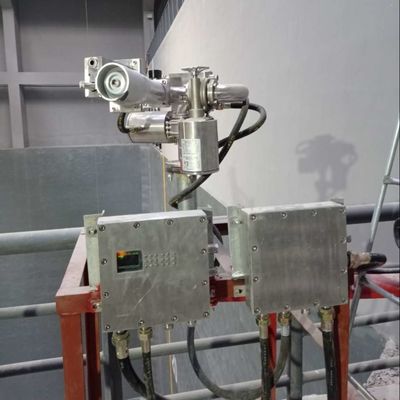

Successful Project
Project in Malaysia
Project in Azerbaijan
Project in Singapore
WUHAN International airport
The people's hospital of JINING
HUANGGANG Rose Times Square
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of intelligent fire-fighting equipment, like Full-auto Fire Monitor|Intelligent Fire Water Cannon.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. FM or UL will be got within next year.
Q3: What are the advantages of your Intelligent Fire Monitor|Fire Water Cannon?
A3: Our Intelligent Fire Monitor|Fire Water Cannon integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
