Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof

  • Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof
  • Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof
  • Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof
  • Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof
Place of Origin Henan, China
Brand Name LinkZone
Model Number ZDMS 0.8/20S-LZ II-Ex
Price $5,000.00 - $5,500.00/sets
Packaging Details International Standard Export Packing
Supply Ability 200000 Set/Sets per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Working Pressure (MPa) 0.8 Rated Flow (L / S) 20
Maximum Protection Radius(m) 50 Jet Radius (m) 56
Monitoring Radius(m) 60 Positioning Time(s) ≤60
Installation Height (m) 8~15 Horizontal Swing Angle(°) 360
Installation Height Fire Water Cannon Usage Fire Fighting
Port Shanghai,Shenzhen,Qingdao,Tianjin,Dalian
High Light

Automatic Fire Alarm And Extinguishing System

,

Programmable Fire Alarm And Extinguishing System

,

Programmable Automatic fire monitor system
Leave a Message
Product Description

Programmable explosion-proof automatic fire alarm and extinguishing system

Product Overview

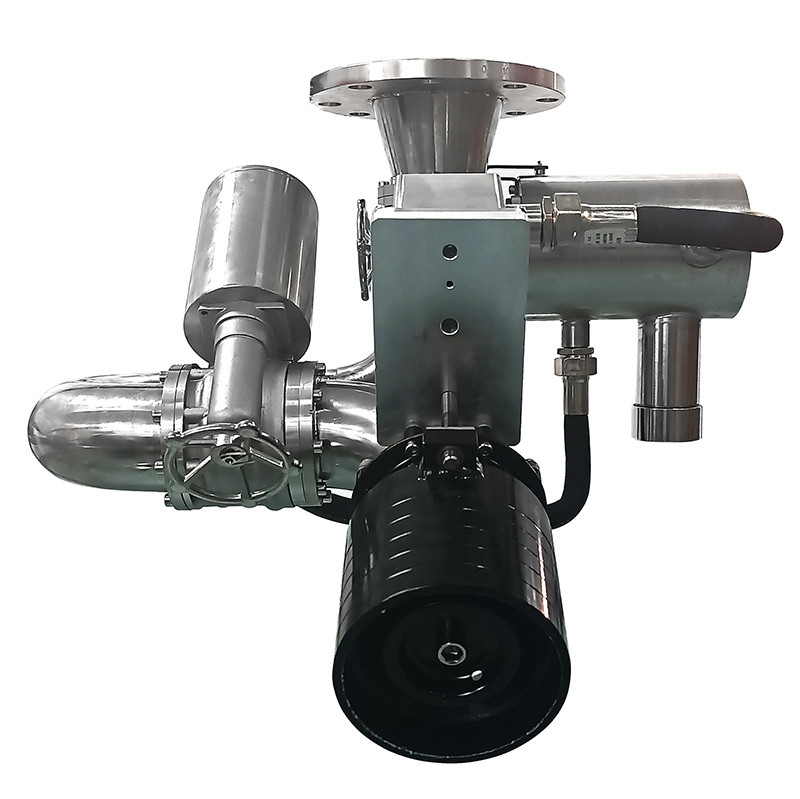

Most advanced automatic fire moniter & water cannon
Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
ITEM#:ZDMS 0.8/20S-LZ II-Ex
DIMENSION:550×460mm
NET WEIGHT:28KG
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN bus
KEYWORD:INTELLIGENT FIRE WATER CANNON
Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof 0
Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof 1
Front elevation
Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof 2
Left elevation
Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof 3
Front elevation

PRODUCT SPECIFICATIONS
No
Item
Standard &Requirements
Inspection results

1
Rated working pressure (MPa)
≤0.8
0.6
/
2
Rated flow (L / s)
20×(1±8%)
20.1
/
3
Maximum protection radius(m)
≥50
50
/
4
Jet radius (m)
≥55
55
/
5
Monitoring radius(m)
≥80
80
/
6
Positioning time(s)
≤60
59
60
7
Installation height (m)
8~15
8
15
8
Horizontal swing angle(°)
≥180
360

9
Minimum pitch profile(°)
-90~+30
-90~+30

10
working temperature
4~55℃ ≤95%RH
4~55℃ ≤95%RH

11
Guidance system
Φ 15.5 ± 0.5
Φ 15.5 ± 0.5

PRODUCT CONFIGURATION
Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof 4
Control host
Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof 5

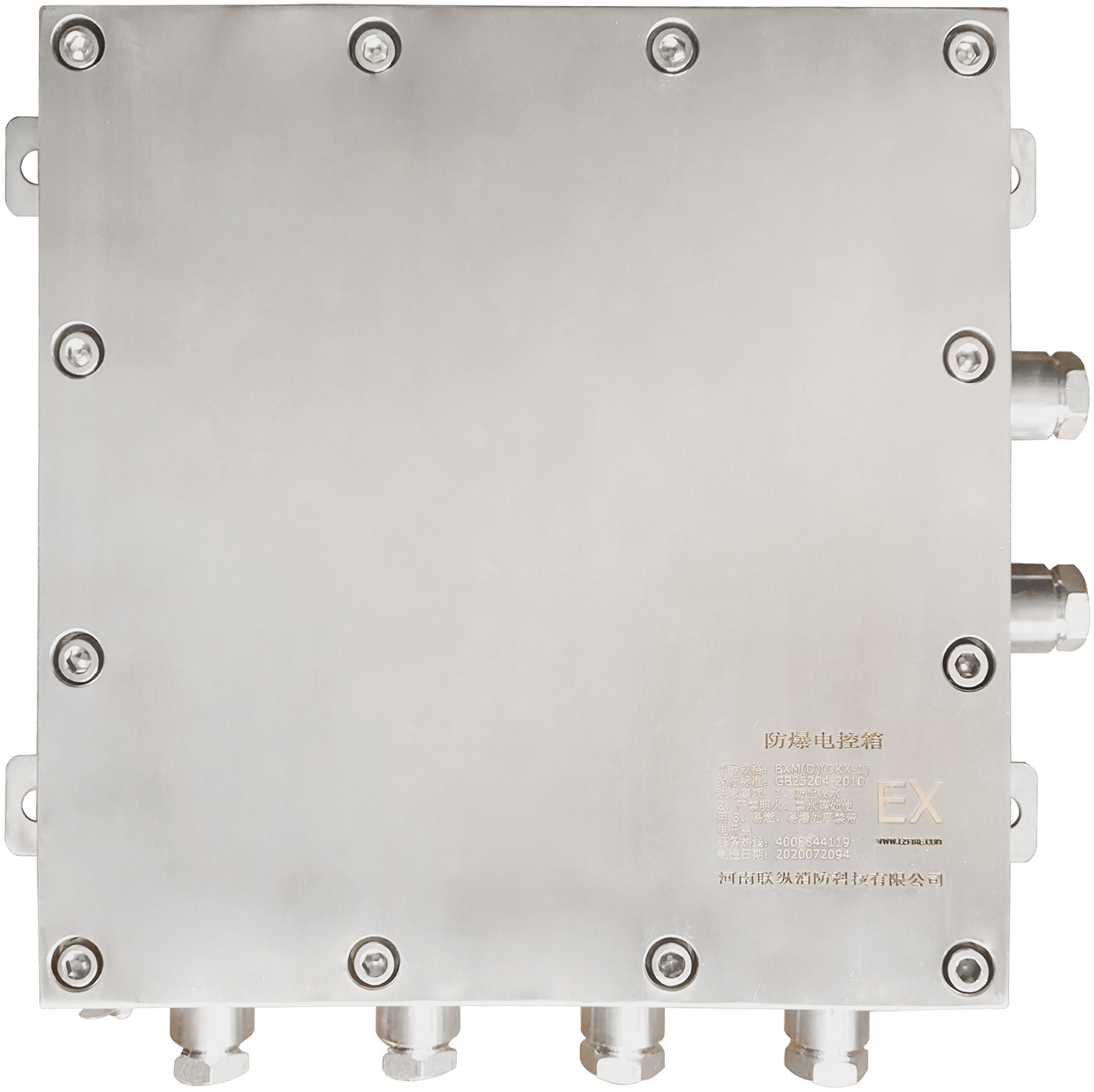

Electric control box
Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof 6

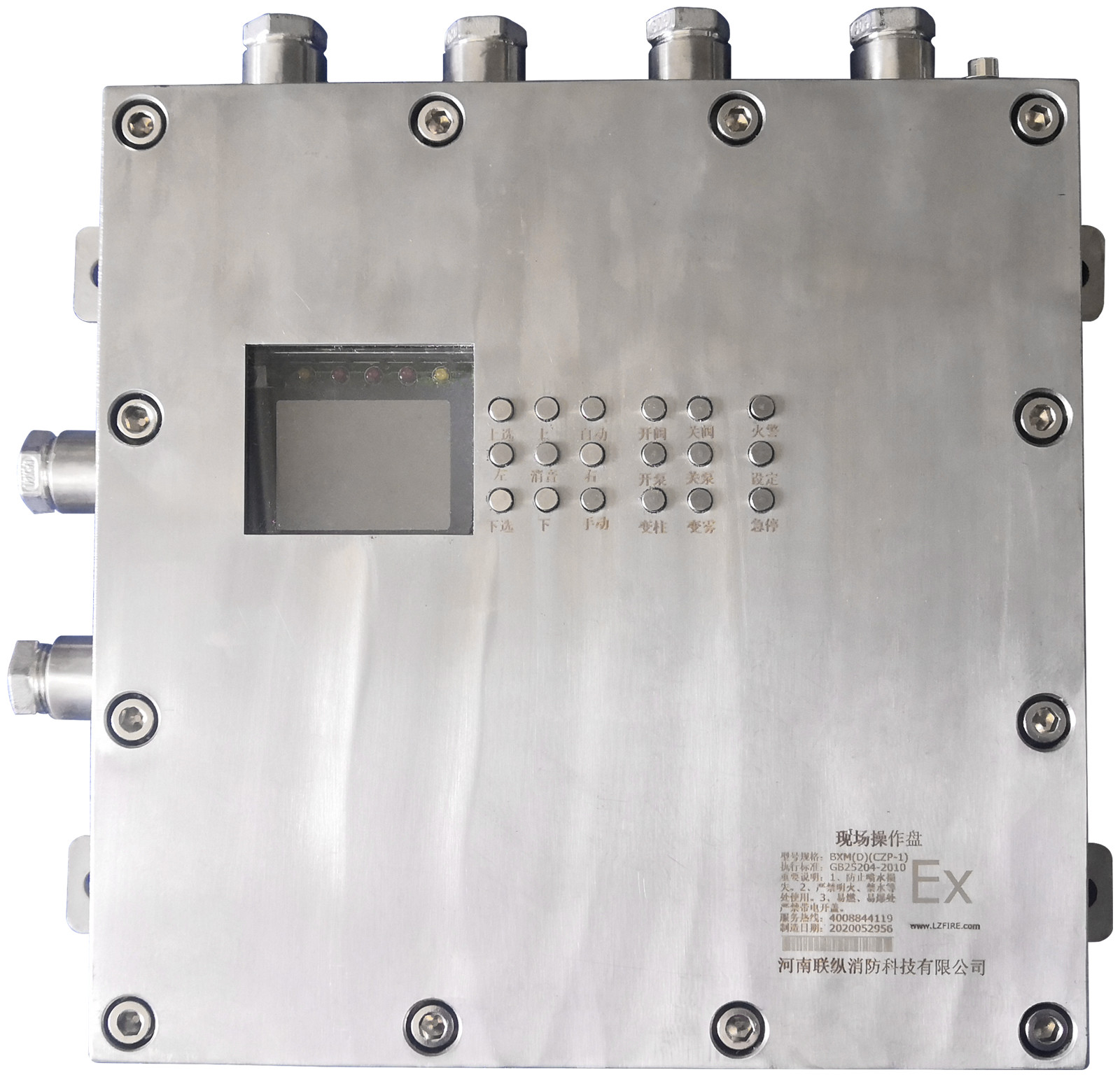

Field operation panel
Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof 7
SALES AND SERVICE NETWORK
Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof 8
Successful Project
Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof 9
Project in Malaysia
Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof 10
Project in Azerbaijan
Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof 11
Project in Singapore
Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof 12
WUHAN International airport
Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof 13
The people's hospital of JINING
Programmable Automatic Fire Alarm And Extinguishing System Explosion Proof 14
HUANGGANG Rose Times Square
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of intelligent fire-fighting equipment, like Full-auto Fire Monitor|Intelligent Fire Water Cannon.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. FM or UL will be got within next year.
Q3: What are the advantages of your Intelligent Fire Monitor|Fire Water Cannon?
A3: Our Intelligent Fire Monitor|Fire Water Cannon integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
