Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting

  • Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting
  • Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting
  • Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting
  • Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting
  • Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting
  • Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting
Place of Origin Henan, China
Brand Name LinkZone
Model Number ZDMS 1.0/60S-LZ II-Ex
Price $5,000.00/sets 1-4 sets
Packaging Details International Standard Export Packing
Supply Ability 80000 Set/Sets per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Working Pressure (MPa) 1.0 Rated Flow (L / S) 60
Maximum Protection Radius(m) 60 Jet Radius (m) 70
Monitoring Radius(m) 80 Positioning Time(s) ≤60
Installation Height (m) 8~15 Horizontal Swing Angle(°) 360
Vertical Rotate Angle -90~+30 Working Temperature 4~55℃
Port Shanghai,Shenzhen,Qingdao,Tianjin,Dalian
High Light

Multifunctional Automatic Water Cannon Fire Monitor

,

Multifunctional Fire Monitor Water Cannon

,

Hazard Place Firefighting Automatic Water Cannon
Leave a Message
Product Description

multifunctional fire monitor explosion proof water cannon for hazard place firefighting

Product Overview



INTELLIGENT FIRE MONITOR AUTOMATIC FIRE SPRINKLER SYSTEM
Our intelligent fire monitor use infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
ITEM#:ZDMS 1.0/60S-LZ II-Ex
DIMENSION:550×460mm
NET WEIGHT:28KG
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN bus
KEYWORD:INTELLIGENT FIRE WATER CANNON
Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting 0
Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting 1

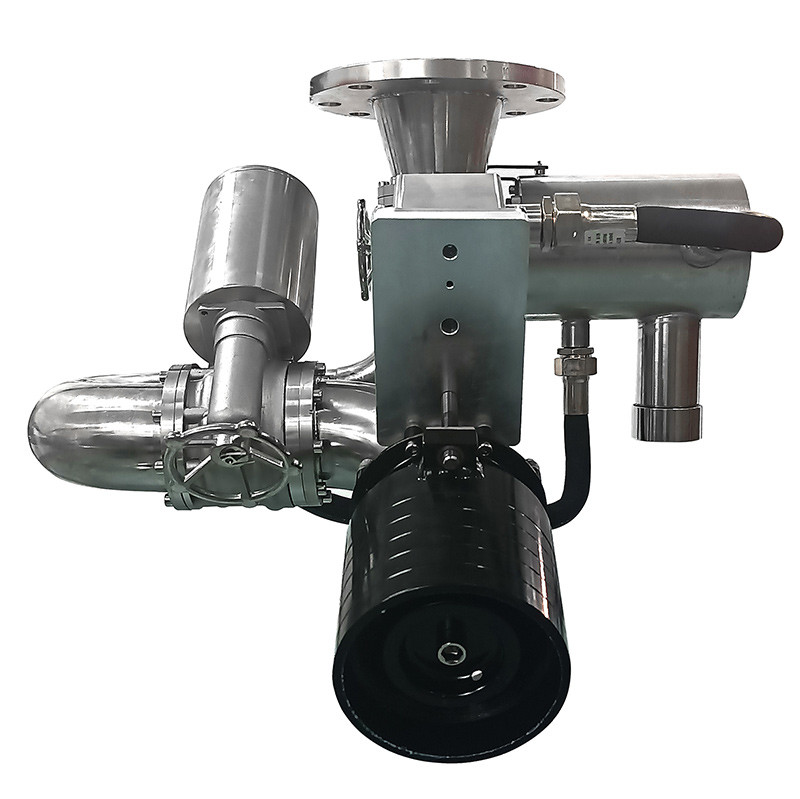

Front elevation
Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting 2
Left elevation
Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting 3
Front elevation

PRODUCT SPECIFICATIONS
No
Item
Standard &Requirements
Inspection results

1
Rated working pressure (MPa)
≤1.2
1.0
/
2
Rated flow (L / s)
60×(1±6%)
57.6
/
3
Maximum protection radius(m)
≥60
60
/
4
Jet radius (m)
≥67
67
/
5
Monitoring radius(m)
≥80
80
/
6
Positioning time(s)
≤60
48
49.5
7
Installation height (m)
8~15
8
15
8
Horizontal swing angle(°)
≥180
360

9
Minimum pitch profile(°)
-90~+30
-90~+30

10
working temperature
4~55℃ ≤95%RH
4~55℃ ≤95%RH

PRODUCT CONFIGURATION
Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting 4

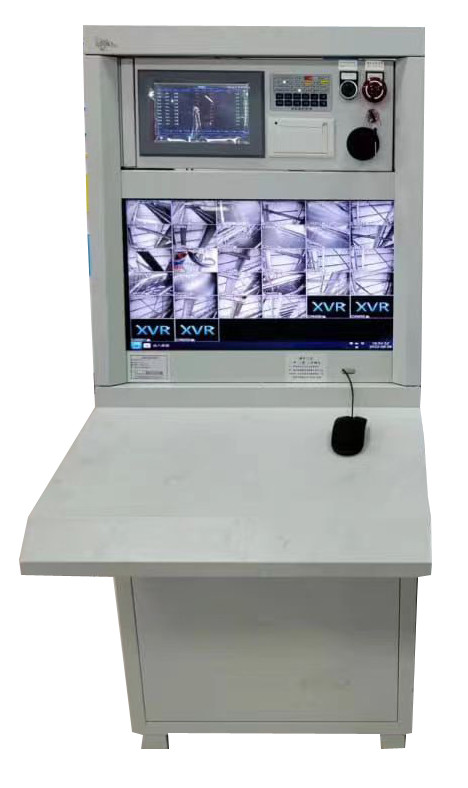

Control host
Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting 5

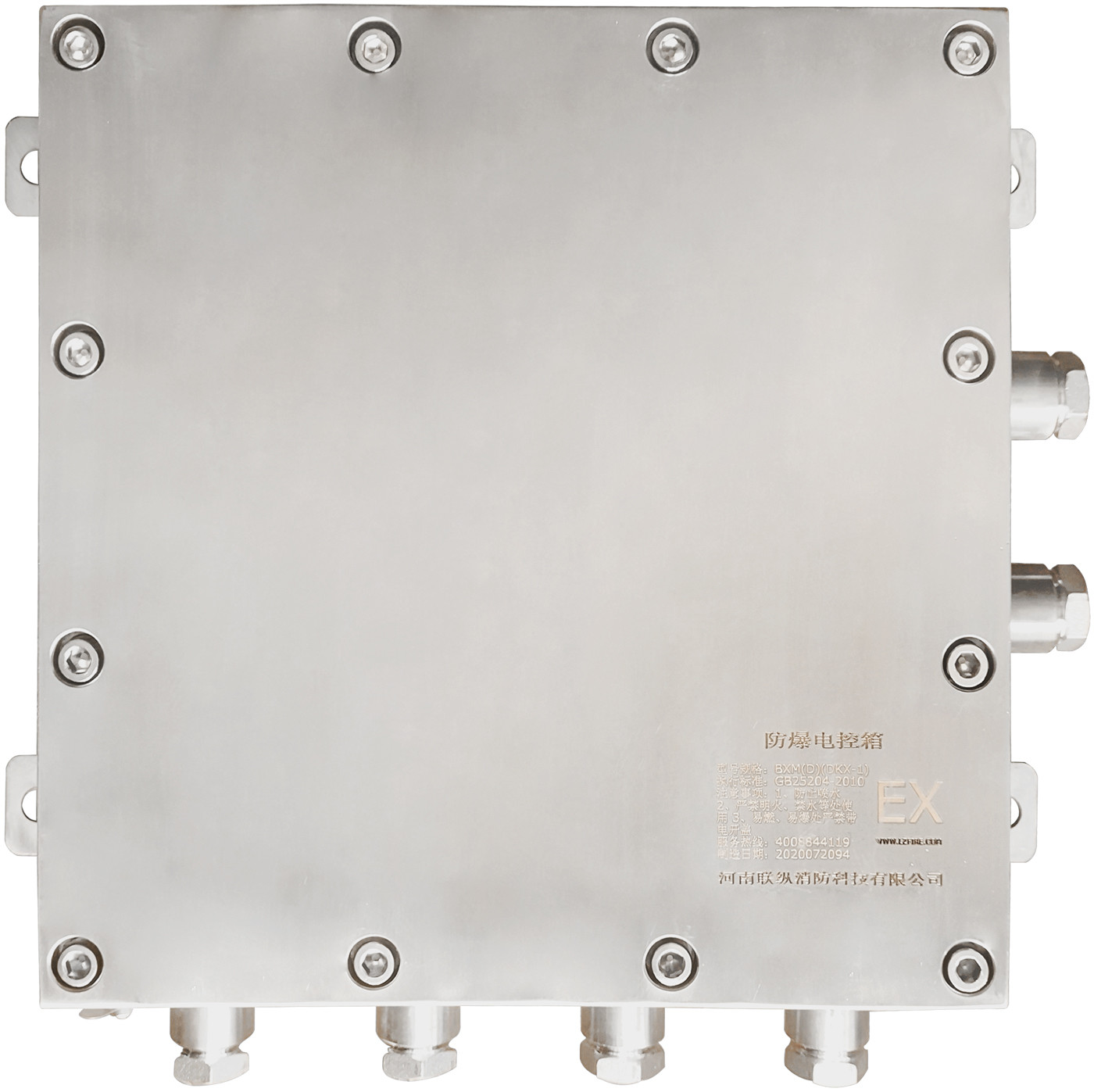

Electric control box
Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting 6

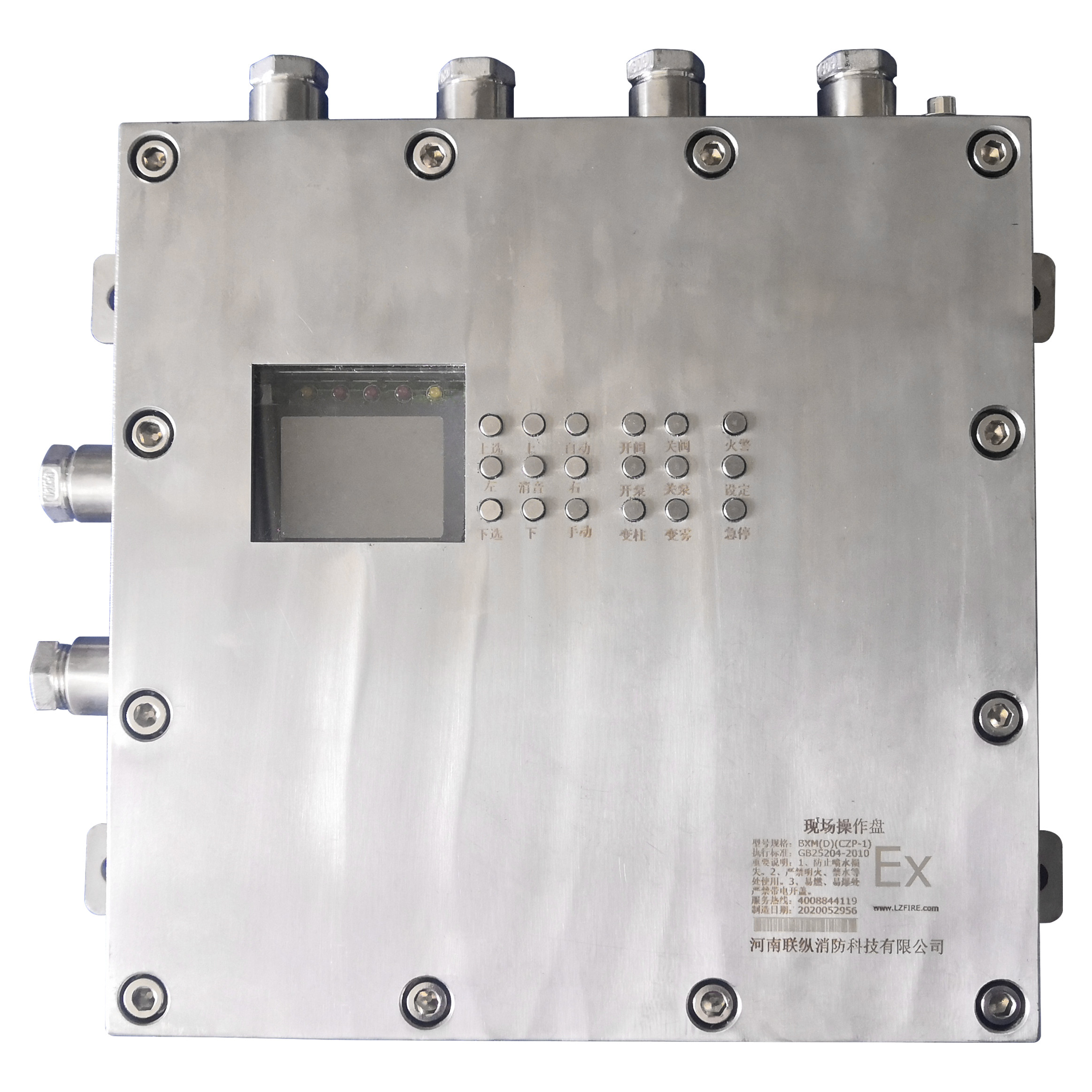

Field operation panel
Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting 7
SALES AND SERVICE NETWORK
Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting 8
Successful Project
Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting 9
Project in Malaysia
Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting 10
Project in Azerbaijan
Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting 11
Project in Singapore
Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting 12
WUHAN International airport
Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting 13
The people's hospital of JINING
Multifunctional Automatic Water Cannon Fire Monitor For Hazard Place Firefighting 14
HUANGGANG Rose Times Square
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of intelligent fire-fighting equipment, like Full-auto Fire Monitor|Intelligent Fire Water Cannon.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. FM or UL will be got within next year.
Q3: What are the advantages of your Intelligent Fire Monitor|Fire Water Cannon?
A3: Our Intelligent Fire Monitor|Fire Water Cannon integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
