Infrared Thermal Imaging Automatic Water Cannon Self Targeting DC24V

The world's first automatic fire monitor with IR imaging targeting technology.

Advantages:

●365days uninterrupted video monitoring.

●360°  rotate,large protection area.

●High pressure and long distance coverage.

●Infrared thermal imaging detecting technology ensure no miss alarming and no fault alarming.

●Automatic Fire alarming ,Fire targeting and Fire extinguishing.

What's an automatic fire monitor?

Linzone Automatic Water cannon is widely used in large-space places whose heights are between 6-25m. It has world's first patent software to control the whole actions of the fire monitor.It can probe fire the first time with detection technology of infrared sensing, ultravioletsensing and plasma sensing and put out fire in the bud. This product has high efficient that it can start and stop automatically and repeatedly with quick response.The installing contains pipeline installing and electrical installing.

This is a new auto-scan and positioning fire extinguishing device, it can probe fire, send fire alarm signals and adjust direction of the monitor to aim at fire to put out it automatically. When a fire happens, it will be activated and start to scan the fire ,adjusts its nozzle direction and aim at fire after logic analysis of microprocessor.

Working Principle:

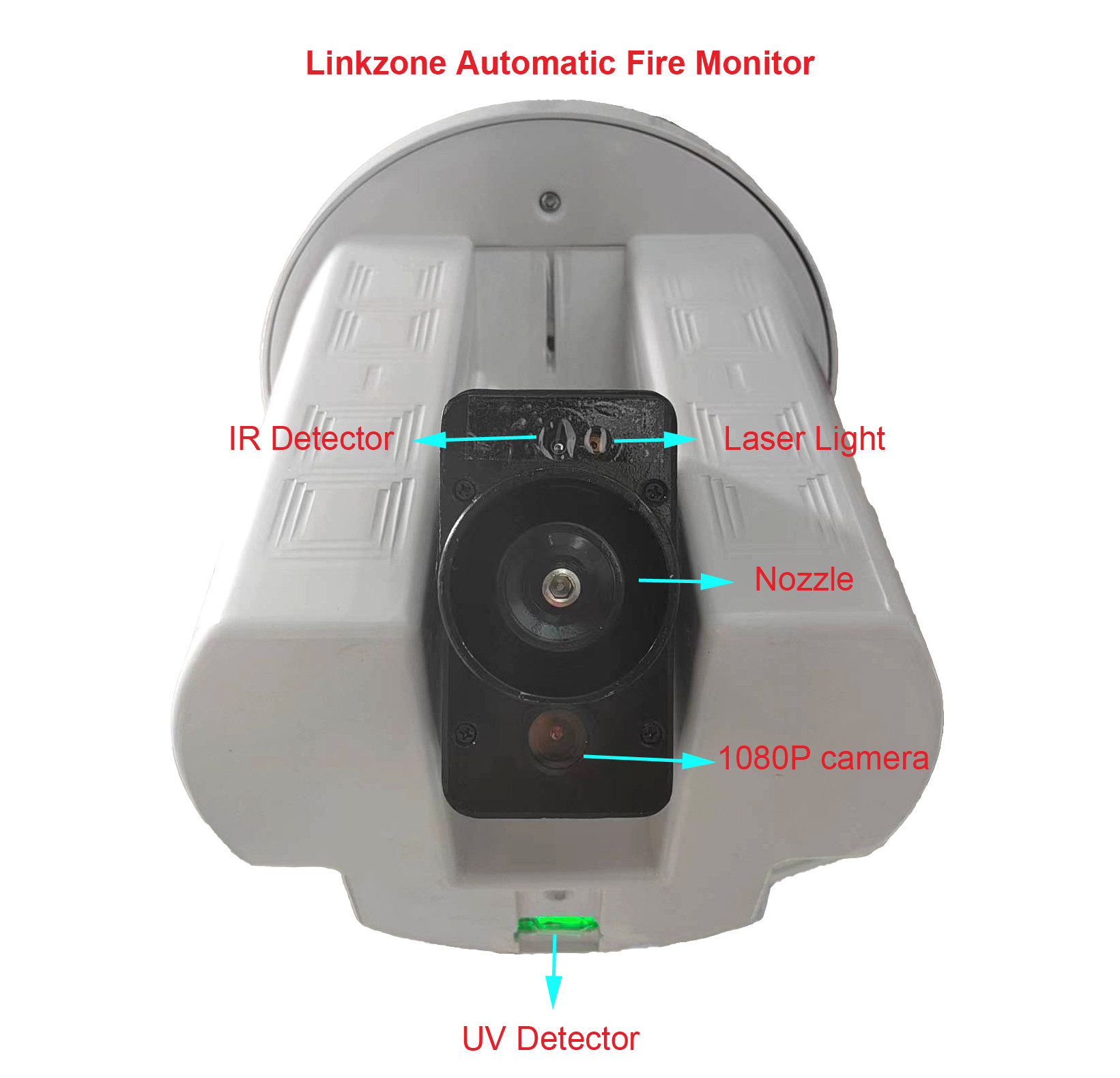

Our Automatic Water cannon discharge large volumes of water or foam&water mixture from a single fixed location, and high pressure give it an excellent range of coverage.The Automatic Firefighting Robot has built-in infrared thermal imaging detector, UV flame detector, closed circuit television camera. Real time dynamic flame location and laser indicater The Automatic Water cannon works with the external UV flame detector to eliminate the detection blind area and increase early warning range.

When the Automatic Water cannon receives the fire early warning signal (UV or IR) signal, the Automatic Firefighting Robot's built-in image IR flame detector will automatically rotate along with the nozzle and lock the flame for 3 seconds, then spray water to extinguish the fire. If there is no fire, the Automatic Water cannon will considere it as a false alarm, and Automatic Water cannon will reset automatically.The infrared thermal imaging detecting and positioning technology makes sure there is no miss alarming and no wrong alarming.



Specifications for all models:

	ZDMS0.6/5S-LZII	ZDMS0.6/10S-LZII	ZDMS0.8/20S-LZII	ZDMS0.9/30S-LZII	ZDMS0.8/40S-LZII	ZDMS0.8/50S-LZII	ZDMS1.0/60S-LZII
Working Voltage	DC36V	DC36V	DC24V	DC24V	DC24V	DC24V	DC24V
Rated Pressure	0.6MPa	0.6MPa	0.8MPa	0.9MPa	0.8MPa	0.8MPa	1.0MPa
Protection Radius	≤30m	≤35m	≤50m	≤55m	≤60m	≤65m	≤70m
Rate of flow	5L/s	10L/s	20L/s	30L/s	40L/s	50L/s	60L/s
Installation Height	6~15m	6~15m	8~35m	8~35m	8~35m	8~35m	8~35m
Jet radius	≤34m	≤39m	≤56m	≤62m	≤67m	≤73m	≤78m
Positioning time	≤30s	≤30s	≤60s	≤60s	≤60s	≤60s	≤60s
Monitoring radius	40m	40m	60m	60m	80m	80m	80m
Flange Connection	DN50	DN50	DN80	DN80	DN100	DN100	DN100



Notices:

1.The side of automatic water cannon with label”this side to wall” must be faced to wall when installed.
2.Video line connected from DVR to cannon directly.
3.Signal lines must connect to signal lines of cannon where it is 2m from cannon.
4.Operation panel installed near the exit and 1.5m from ground,and from where operator can see all cannnons controlled by this operation panel.
5.Pls take care when handling cannon as there is UV detector at the bottom of cannon.The UV detetor is fragile.
6.Make sure there is no barrier around the cannon to stop the cannon 360 degree rotate.
7.The ground lead of DVR,earth wire and Lightning protection wire of control console need be connected to your ground lead.



Applications:

Our Automatic Water cannon are wildly used in Industrial,commercial and residential fields.Such as airport, high-speed railway station, bus station, hotel atrium, museum, library, TV studio, gymnasium, science and technology museum, exhibition hall, convention center, theater, cinema, civic activity center, industrial plant, chemical plant, gas station, oil port,helicopter hangar, power plants, logistics centers, hospitals, large shopping malls, commercial complexes, colleges and universities, coal mines, warehouses and other places with large space.

FAQ:

Q1: Are you a manufacturer?

A1: Yes. We are a professional manufacture of Automatic Water cannon which has the most advanced technology.

Q2: What certificates do you have?

A2: We have CCCF and ISO certificates at present. All products tested by CHINA National Fire Equipment Quality Inspection and testing Center.

Q3: What are the advantages of your Automatic Water cannon?

A3: Our Automatic Water cannon adopt the most advanced Infrared thermal imaging detecting and tracking technology. It integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Automatically Fire Extinguishing.
