CCCF Fully Automatic Fire Monitor High Pressure 8 - 35m 0.8MPa
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Automatic Fire Monitor | Rated Working Pressure (MPa) | 0.8 |
|---|---|---|---|
| Rated Flow (L / S) | 20 | Maximum Protection Radius(m) | 50 |
| Jet Radius (m) | 55 | Monitoring Radius(m) | 60 |
| Positioning Time(s) | ≤30 | Installation Height (m) | 8~35 |
| Horizontal Swing Angle(°) | 360 | ||
| High Light | CCCF Fully Automatic Fire Monitor,35m Automatic Fire Monitor,0.8MPa Automatic Fire Monitor |
||
Product Description
Product Overview

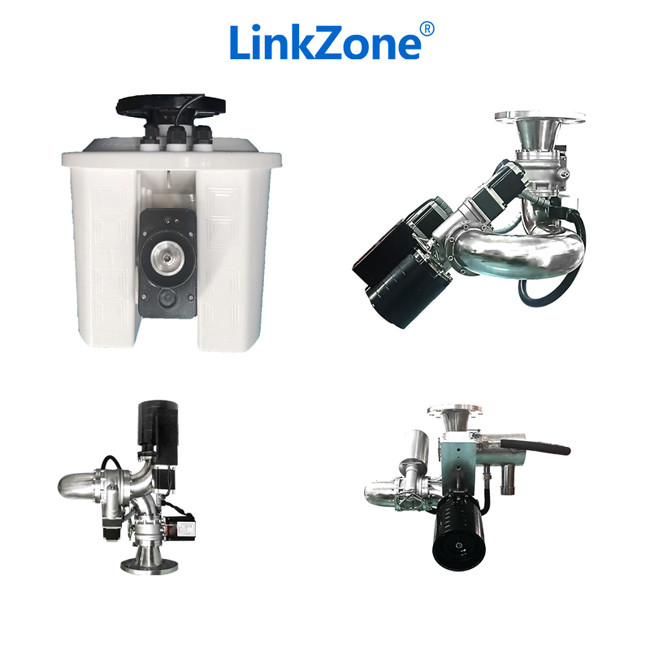

AUTOMATIC FIRE MONITOR
WORLD'S MOST ADVANCED, FULLY AUTOMATIC FIRE DETECTION & SUPPRESSION ROBOT.
What's an automatic fire monitor?
The automatic fire monitor is an auto fire fighting system driven by high pressure water provided by water supply system.It consist of a flame detector, a monitor equipped with electric motors & a fire scanner, and a central control unit. When a fire event occurs within the protected space, the flame detector sends a signal to the control unit which then mobilizes the monitor to locate the fire. The fire scanner is typically an image-based flame detector equipped with a pair of cameras (either visual or infrared),but our is IR imaging detector which is the best detector in the world. Once the fire scanner locates the flame, the monitor will be adjusted to its final position and water spray will be delivered upon activation of the control valve.
FEATURES AT A GLANC
ITEM#:ZDMS 0.8/20S-LZ II
DIMENSION:580×360mm
NET WEIGHT:10KG
MODEL: ZDMS0.8/20S-LZ II
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN bus
KEYWORD:AUTOMATIC FIRE MONITOR
PRODUCT SPECIFICATIONS
|
Item
|
Standard &Requirements
|
Inspection results
|
|
||
|
1
|
Rated working pressure (MPa)
|
≤0.8
|
0.6
|
/
|
|
|
2
|
Rated flow (L / s)
|
20×(1±8%)
|
20.1
|
/
|
|
|
3
|
Maximum protection radius(m)
|
≥50
|
50
|
/
|
|
|
4
|
Jet radius (m)
|
≥55
|
55
|
/
|
|
|
5
|
Monitoring radius(m)
|
≥80
|
80
|
/
|
|
|
6
|
Positioning time(s)
|
≤60
|
59
|
60
|
|
|
7
|
Installation height (m)
|
8~15
|
8
|
15
|
|
|
8
|
Horizontal swing angle(°)
|
≥180
|
360
|
|
|
|
9
|
Minimum pitch profile(°)
|
-90~+30
|
-90~+30
|
|
|
|
10
|
working temperature
|
4~55℃ ≤95%RH
|
4~55℃ ≤95%RH
|
|
|
|
11
|
Guidance system
|
Φ 15.5 ± 0.5
|
Φ 15.5 ± 0.5
|
|
|

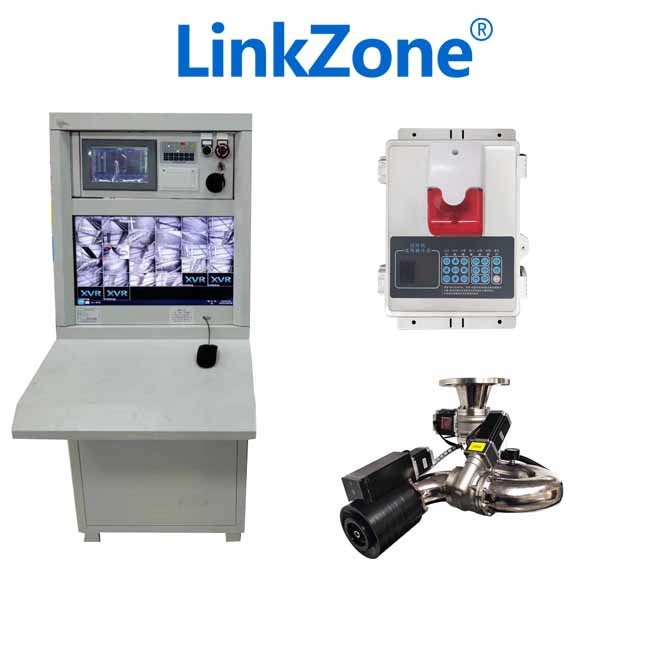

PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
Successful Project
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional and leading manufacturer of automatic fire monitor.
Q2: What certificates do you have?
A2: We only have CCCF and ISO at present. We plan to do FM later.
Q3: What are the advantages of your Automatic Fire Monitor|Fire Water Cannon?
A3: Our Automatic Fire Monitor integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
