Self Targeting Automatic Monitor Systems Automatically Operated 50m

  • Self Targeting Automatic Monitor Systems Automatically Operated 50m
  • Self Targeting Automatic Monitor Systems Automatically Operated 50m
Place of Origin Henan, China
Brand Name LinkZone
Certification CCCF
Model Number ZDMS 0.8/20S-LZ II
Minimum Order Quantity 1sets
Price Negotiable
Packaging Details International Standard Export Packing
Supply Ability 200000 Set/Sets per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Automatic Fire Monitor Rated Working Pressure (MPa) 0.8
Rated Flow (L / S) 20 Maximum Protection Radius(m) 50
Jet Radius (m) 55 Monitoring Radius(m) 60
Positioning Time(s) ≤30 Installation Height (m) 8~35
Horizontal Swing Angle(°) 360
High Light

Self Targeting CCCF fire monitor Systems

,

50m fire monitor Systems

,

Automatic Monitor Systems 35m
Leave a Message
Product Description
Product Overview

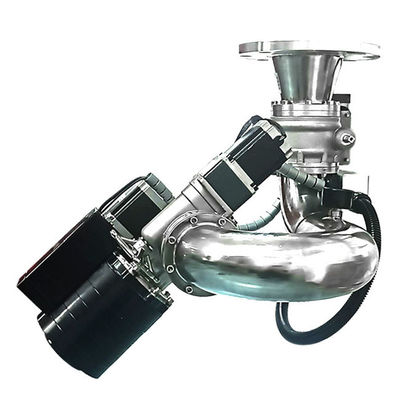

AUTOMATIC FIRE MONITOR
WORLD'S MOST ADVANCED, FULLY AUTOMATIC FIRE DETECTION & SUPPRESSION SYSTEM.
What's an automatic fire monitor?
The automatic fire monitor is an auto fire fighting system driven by high pressure water provided by water supply system.It consist of a flame detector, a monitor equipped with electric motors & a fire scanner, and a central control unit. When a fire event occurs within the protected space, the flame detector sends a signal to the control unit which then mobilizes the monitor to locate the fire. The fire scanner is a IR thermal image flame detector. Once the fire scanner locates the flame, the nozzle will aim at fire same time and water spray will be delivered upon activation of the control valve.
FEATURES AT A GLANC

Self Targeting Automatic Monitor Systems Automatically Operated 50m 0Self Targeting Automatic Monitor Systems Automatically Operated 50m 1
PRODUCT SPECIFICATIONS



Item
Standard &Requirements
Inspection results

1
Rated working pressure (MPa)
≤0.8
0.6
/
2
Rated flow (L / s)
20×(1±8%)
20.1
/
3
Maximum protection radius(m)
≥50
50
/
4
Jet radius (m)
≥55
55
/
5
Monitoring radius(m)
≥80
80
/
6
Positioning time(s)
≤60
59
60
7
Installation height (m)
8~15
8
15
8
Horizontal swing angle(°)
≥180
360

9
Minimum pitch profile(°)
-90~+30
-90~+30

10
working temperature
4~55℃ ≤95%RH
4~55℃ ≤95%RH

11
Guidance system
Φ 15.5 ± 0.5
Φ 15.5 ± 0.5

PRODUCT CONFIGURATION

Self Targeting Automatic Monitor Systems Automatically Operated 50m 2
SALES AND SERVICE NETWORK
Self Targeting Automatic Monitor Systems Automatically Operated 50m 3
Successful Project
Self Targeting Automatic Monitor Systems Automatically Operated 50m 4
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a leading manufacturer of automatic fire monitor.
Q2: What certificates do you have?
A2: We only have CCCF and ISO at present. We plan to do FM later.
Q3: What are the advantages of your Automatic Fire Monitor|Fire Water Cannon?
A3: Our Automatic Fire Monitor using IR thermal imaging technology,it detect the temperature of the fire,so no missing alarm.
