Fully Automatic Fire Detection And Suppression System ZDMS0.6

  • Fully Automatic Fire Detection And Suppression System ZDMS0.6
  • Fully Automatic Fire Detection And Suppression System ZDMS0.6
  • Fully Automatic Fire Detection And Suppression System ZDMS0.6
  • Fully Automatic Fire Detection And Suppression System ZDMS0.6
  • Fully Automatic Fire Detection And Suppression System ZDMS0.6
  • Fully Automatic Fire Detection And Suppression System ZDMS0.6
Place of Origin Henan, China
Brand Name LinkZone
Model Number ZDMS0.6/5S-LZ II
Price $1,030.00 - $1,200.00/sets
Packaging Details International Standard Export Packing
Supply Ability 200000 Set/Sets per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Working Pressure 0.6MPa Rated Flow 5L/s
Maximum Protection Radius 30m Jet Radius 34m
Monitoring Radius 40m Positioning Time ≤30s
Installation Height 6~15m Horizontal Swing Angle 360°
Vertical Deflection Angle -90°~+30° Keyword Fire Water Cannon
Port Shanghai,Shenzhen,Qingdao,Tianjin,Dalian
High Light

Automatic Fire Detection And Suppression System

,

Fire Detection And Suppression System ZDMS0.6

,

ZDMS0.6 fire alarm suppression system
Leave a Message
Product Description

Fully Automatic Fire Detection & Suppression Systems Robot fireman



Product Overview



INTELLIGENT FIRE MONITOR AUTOMATIC FIRE SPRINKLER SYSTEM
Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.

FEATURES AT A GLANCE
DIMENSION:480×360mm
NET WEIGHT:8.1KG
MODEL: ZDMS0.6/5S-LZ II
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN
KEYWORD:INTELLIGENT FIRE MONITOR
Fully Automatic Fire Detection And Suppression System ZDMS0.6 0
Fully Automatic Fire Detection And Suppression System ZDMS0.6 1
Right elevation
Fully Automatic Fire Detection And Suppression System ZDMS0.6 1
Left elevation
Fully Automatic Fire Detection And Suppression System ZDMS0.6 1
Front elevation

PRODUCT SPECIFICATIONS
No
Item
Standard &Requirements
Inspection results

1
Rated working pressure (MPa)
≤0.8
0.6
/
2
Rated flow (L / s)
5×(1±8%)
5.05
/
3
Maximum protection radius(m)
≥30
30
/
4
Jet radius (m)
≥34
34
/
5
Monitoring radius(m)
≥40
40
/
6
Positioning time(s)
≤30
29.5
29.9
7
Installation height (m)
6~15
6
15
8
Horizontal swing angle(°)
≥180
360

9
Minimum pitch profile(°)
-90~+30
-90~+30

10
Diameter of water-inlet(mm)
Φ 34.5 ± 0.5
Φ 34.5 ± 0.5

11
Diameter of water-outlet(mm)
Φ 15.5 ± 0.5
Φ 15.5 ± 0.5

PRODUCT CONFIGURATION
Fully Automatic Fire Detection And Suppression System ZDMS0.6 4
Control host
Fully Automatic Fire Detection And Suppression System ZDMS0.6 5
Electric control box
Fully Automatic Fire Detection And Suppression System ZDMS0.6 6

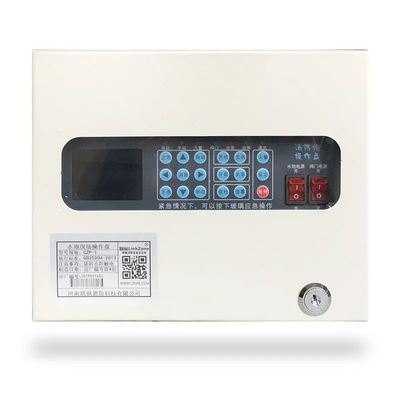

Field operation panel
SALES AND SERVICE NETWORK
Fully Automatic Fire Detection And Suppression System ZDMS0.6 7
Successful Project
Fully Automatic Fire Detection And Suppression System ZDMS0.6 8
Project in Malaysia
Fully Automatic Fire Detection And Suppression System ZDMS0.6 9
Project in Azerbaijan
Fully Automatic Fire Detection And Suppression System ZDMS0.6 10
Project in Singapore
