10L/s Automatic Fire Extinguishing System 24 Hour Fire Monitoring
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Working Pressure | 0.6Mpa | Rated Flow | 10L/s |
|---|---|---|---|
| Maximum Protection Radius | 35m | Jet Radius | 39m |
| Monitoring Radius | 40m | Positioning Time | ≤30s |
| Installation Height | 6~15m | Horizontal Swing Angle | 360° |
| Vertical Rotate Angle | -90°~+30° | Working Temperature | 4~55℃ |
| Port | Shanghai,Shenzhen,Qingdao,Tianjin,Dalian | ||
| High Light | 10L/S Automatic Fire Extinguishing System,Fire Extinguishing 24H Fire Monitoring System,10L/S Automatic Fire Monitoring System |
||
Product Description
automatic fire equipment 24 hour fire monitor fire fighting robot
Product Overview
INTELLIGENT FIRE MONITOR AUTOMATIC FIRE SUPPRESSION SYSTEM

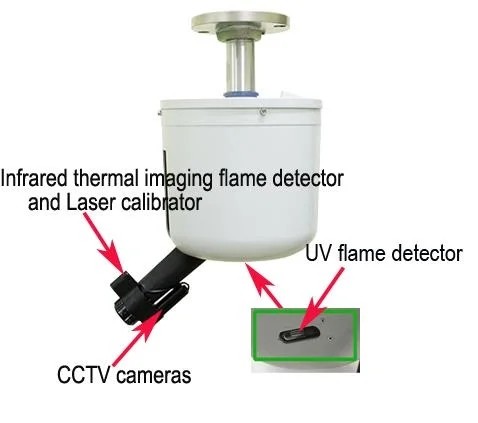

Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
DIMENSION:350×480mm
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Standard &Requirements
|
Inspection results
|
|
|
|
1
|
Rated working pressure (MPa)
|
≤0.8
|
0.6
|
/
|
|
|
2
|
Rated flow (L / s)
|
5×(1±8%)
|
5.05
|
/
|
|
|
3
|
Maximum protection radius(m)
|
≥30
|
30
|
/
|
|
|
4
|
Jet radius (m)
|
≥39
|
39
|
/
|
|
|
5
|
Monitoring radius(m)
|
≥40
|
40
|
/
|
|
|
6
|
Positioning time(s)
|
≤30
|
29.5
|
29.9
|
|
|
7
|
Installation height (m)
|
6~15
|
6
|
15
|
|
|
8
|
Horizontal swing angle(°)
|
≥180
|
360
|
|
|
|
9
|
Minimum pitch profile(°)
|
-90~+30
|
-90~+30
|
|
|
|
10
|
Diameter of water-inlet(mm)
|
Φ 34.5 ± 0.5
|
Φ 34.5 ± 0.5
|
|
|
|
11
|
Diameter of water-outlet(mm)
|
Φ 15.5 ± 0.5
|
Φ 15.5 ± 0.5
|
|
|

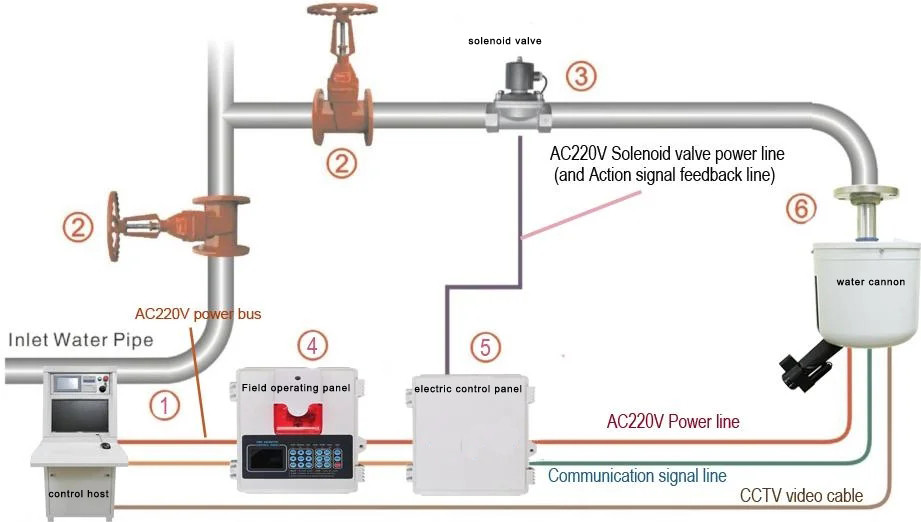

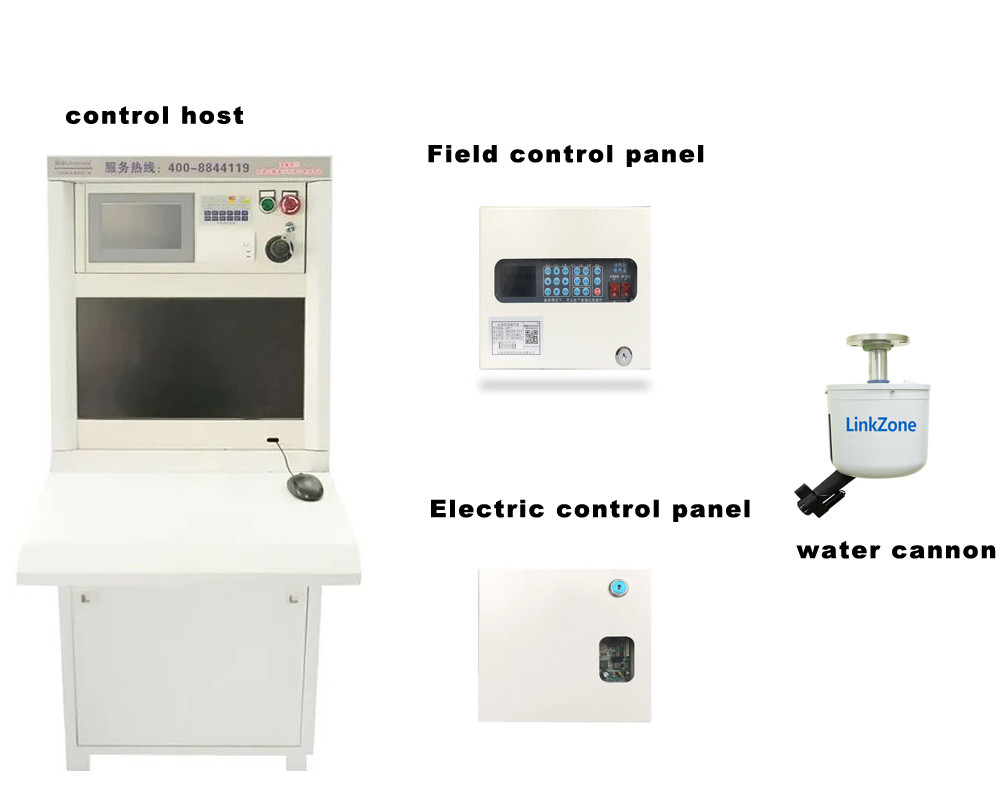

PRODUCT CONFIGURATION
Control host
Electric control box
Field operation panel
SALES AND SERVICE NETWORK

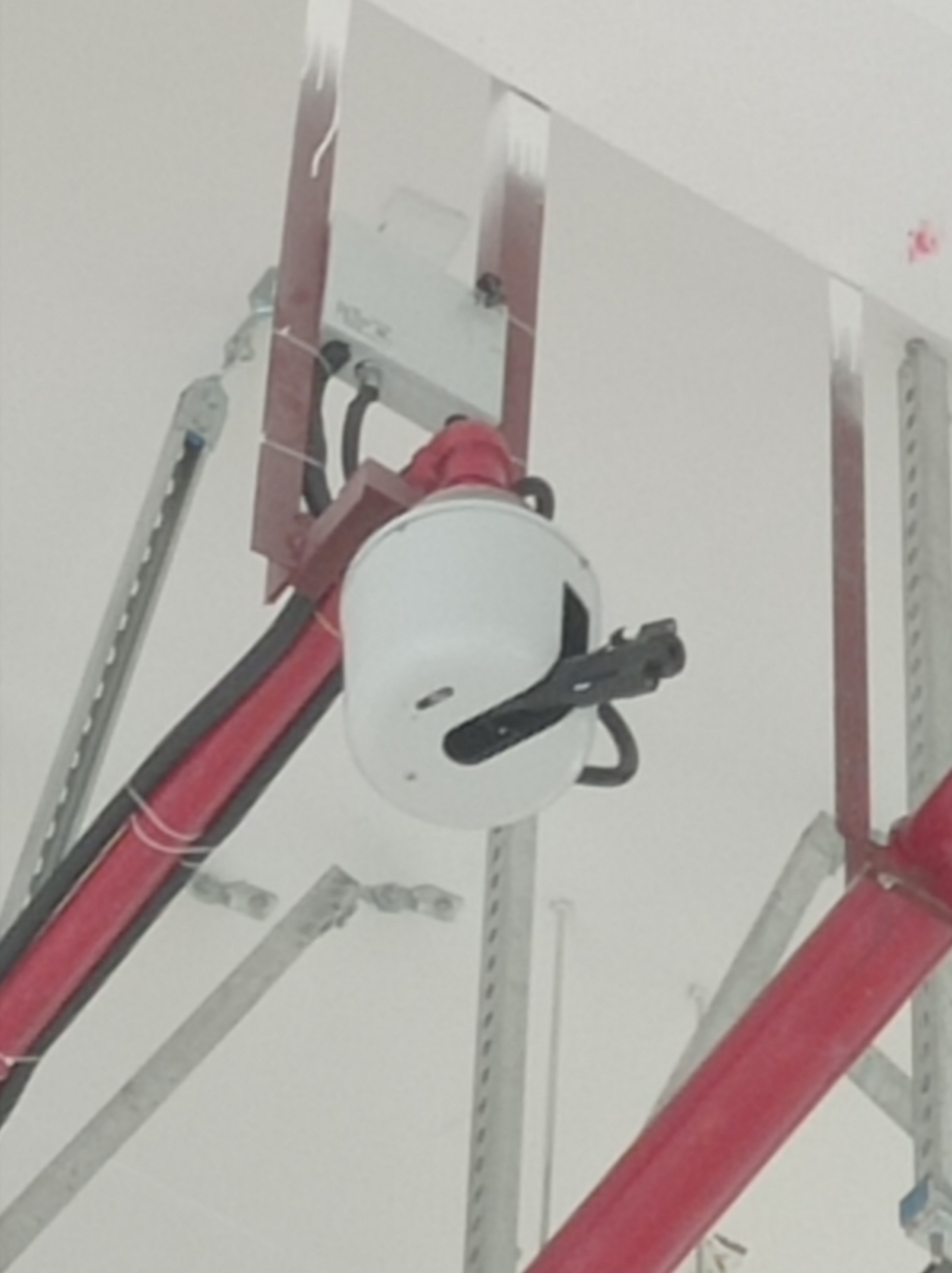

Successful Project
Project in Malaysia
Project in Azerbaijan
Project in Singapore
WuHan International Airport
XIXIA gym
LIAONING SUIHUA WANDA PLAZA
ZHONGBAI LAIFENG shopping mall
CHUZHOU science and technology museum
CHONGQING XINLONG Industrial plant
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of intelligent fire-fighting equipment, like Full-auto Fire Monitor|Fire Water Cannon.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. FM or UL will be got within next year.
Q3: What are the advantages of your Intelligent Fire Monitor|Fire Water Cannon?
A3: Our Intelligent Fire Monitor|Fire Water Cannon integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
