30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue

  • 30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue
  • 30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue
  • 30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue
  • 30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue
  • 30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue
  • 30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue
Place of Origin Henan, China
Brand Name LinkZone
Model Number ZDMS 0.9/30S-LZ II
Minimum Order Quantity 3 sets
Price $2,200.00 - $2,300.00/sets
Packaging Details International Standard Export Packing
Supply Ability 200000 Set/Sets per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Working Pressure (MPa) 0.9 Rated Flow (L / S) 30
Maximum Protection Radius(m) 55 Jet Radius (m) 62
Monitoring Radius(m) 60 Positioning Time(s) ≤60
Installation Height (m) 8~15 Horizontal Swing Angle(°) ≥180
Keyword Fire Water Cannon Port Shanghai,Shenzhen,Qingdao,Tianjin,Dalian
High Light

30L/S Water Cannon Fire Extinguishing System

,

Water Cannon Automatic Fire Extinguishing System

,

30L/S Automatic Fire Water Cannon
Leave a Message
Product Description

automatic tracking and targeting fire water cannon fore fire rescue

Product Overview



INTELLIGENT FIRE MONITOR AUTOMATIC FIRE SPRINKLER SYSTEM
Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
ITEM#:ZDMS 0.9/30S-LZ II
DIMENSION:580×360mm
NET WEIGHT:10KG
MODEL: ZDMS0.9/30S-LZ II
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN bus
KEYWORD:INTELLIGENT FIRE WATER CANNON
30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue 0
30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue 1

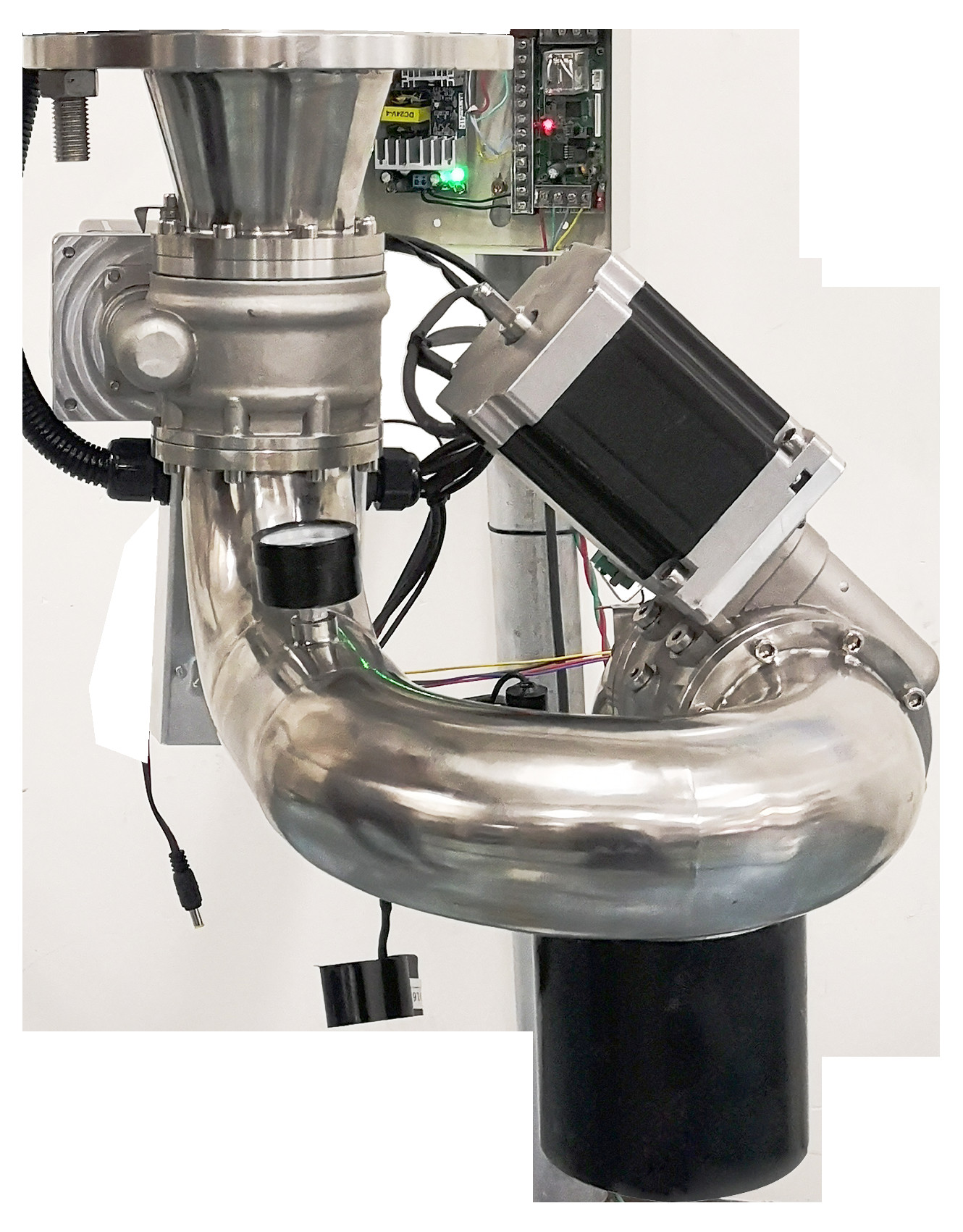

Front elevation
30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue 2

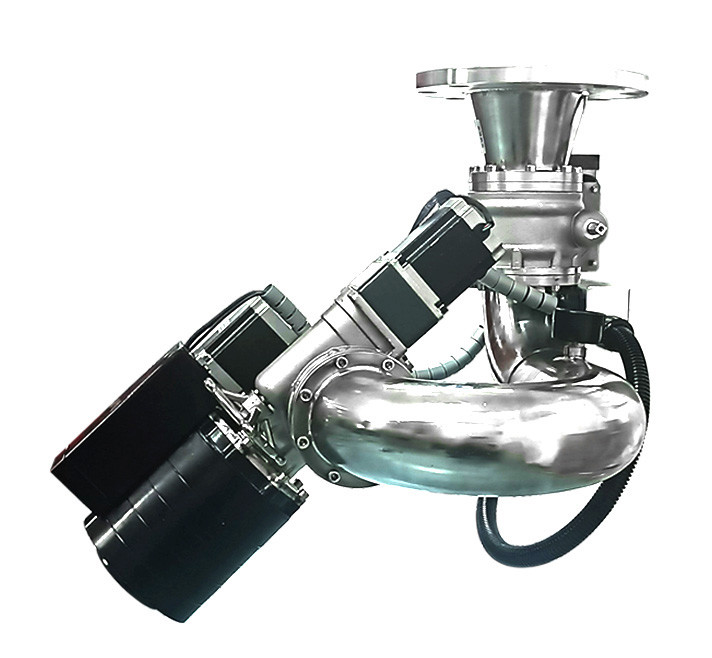

Left elevation
30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue 3
Front elevation

PRODUCT SPECIFICATIONS
No
Item
Standard &Requirements
Inspection results

1
Rated working pressure (MPa)
≤0.9
0.9
/
2
Rated flow (L / s)
30×(1±8%)
30.5
/
3
Maximum protection radius(m)
≥55
55
/
4
Jet radius (m)
≥62
62
/
5
Monitoring radius(m)
≥60
60
/
6
Positioning time(s)
≤60
49
49.5
7
Installation height (m)
8~15
8
15
8
Horizontal swing angle(°)
≥180
360

9
Minimum pitch profile(°)
-90~+30
-90~+30

10
working temperature
4~55℃ ≤95%RH
4~55℃ ≤95%RH

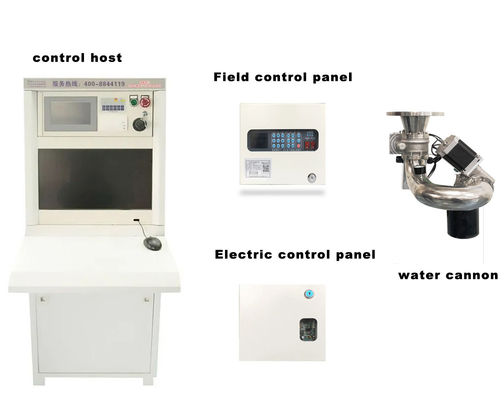

PRODUCT CONFIGURATION
30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue 4
Control host
30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue 5
Electric control box
30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue 6
Field operation panel
30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue 7
SALES AND SERVICE NETWORK
30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue 8
Successful Project
30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue 9
Project in Malaysia
30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue 10
Project in Azerbaijan
30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue 11
Project in Singapore
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of intelligent fire-fighting equipment, like Full-auto Fire Monitor|Intelligent Fire Water Cannon.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. FM or UL will be got within next year.
Q3: What are the advantages of your Intelligent Fire Monitor|Fire Water Cannon?
A3: Our Intelligent Fire Monitor|Fire Water Cannon integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
